12.10 I/O Interface (I/O)

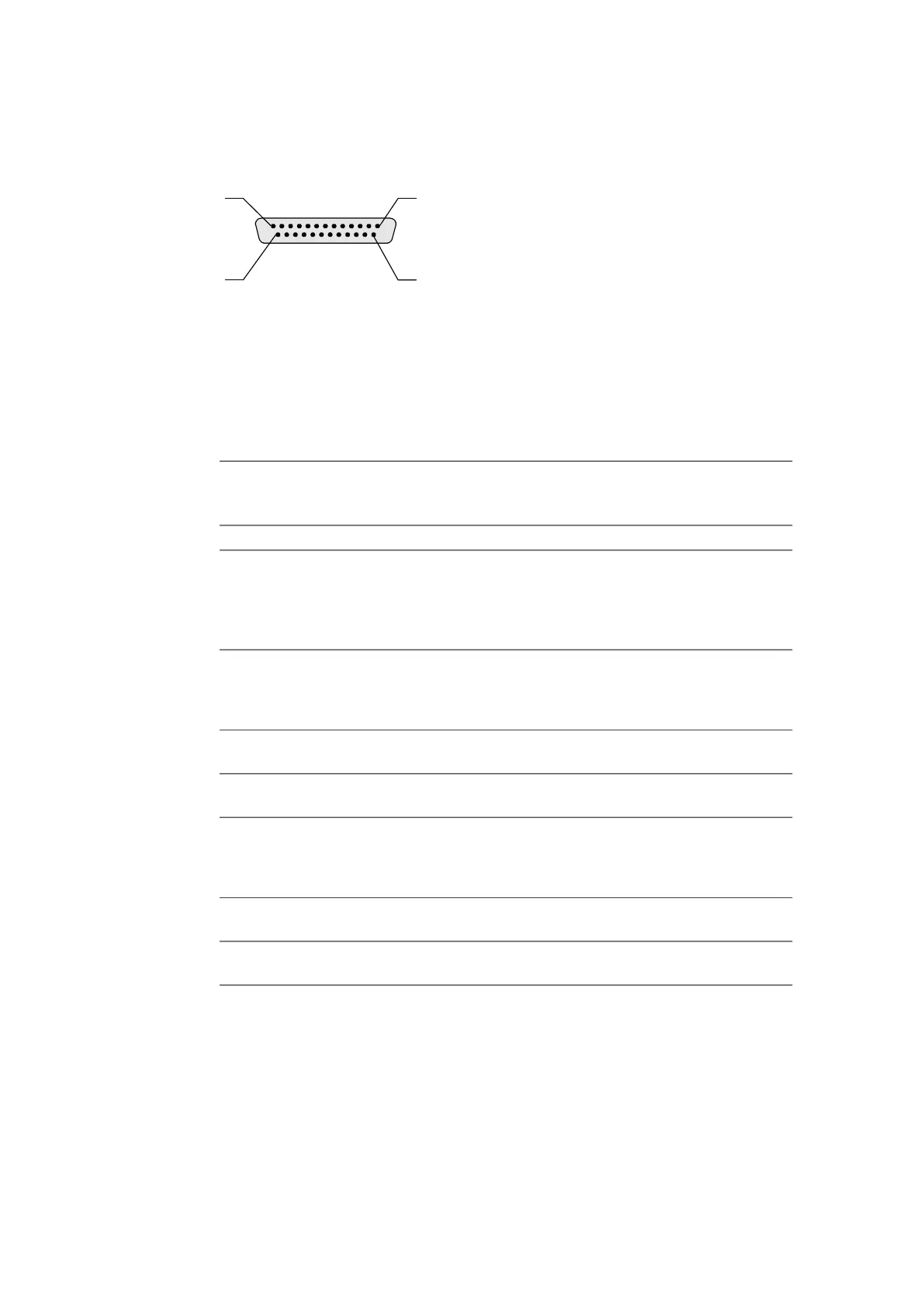

Fig. 12-5 I/O connection
12.10.1 Overview and Functions
At the "I/O" connection, a 25-pin Micro DSUB plug, the ES820.1 and the ES830.1
module provides digital inputs and outputs with various functions:
Pin assignment see chapter “"I/O" Connection: Socket and matching Plug” on
page 178.
12.10.2 "Remote Power" Input
The "Remote Power" input ("I/O" connection, pin 11) enables the ES820.1/ ES830.1
module to be switched on and off remotely (e.g. from the passenger cell). The
external "Remote Power" button switches the input to ground. The function of the
external "Remote Power" button and the "Power" button on the module is identi
-
cal. The function of the "Remote Power" input can be configured.
Pin at
"I/O"
Num-
ber of
I/Os
Type Description
1, 2, 3, 4 4 Output Can be controlled by INCA
9 1 Output Corresponds to operating state of the ES820.1/
ES830.1 module, can be used to switch on the operat-
ing voltage of additional measuring modules:
High = ES820.1/ ES830.1 switched on,
Low = ES820.1/ ES830.1 in standby
11 1 Input For the connection of an external "Remote Power"
button to ground;
the function of the external "Remote Power" button
and the "Power" button on the module is identical
12 1 Input Terminal 15 (Kl.15), can be used for automatic activa-
tion with "Ignition on"
13, 14,
15, 16
4 Input Can be evaluated by INCA (signal status, trigger);
max. acquisition rate 10 Hz
18,19,
21, 22,
23, 24,
25
7 Output The status of the outputs corresponds to the status
of the assigned LED on the front of the module
20 1 Output Status as per internal acoustic signal generator, suit-
able for the direct connection of a Piezo buzzer
5, 6, 7,
8, 17
5 GND Reference level for outputs and Remote Power
