ETAS ES800 - Fast Ethernet Connection (FE)

168 |
ETAS ES800 System | User Guide
16.10.3 Fast Ethernet Connection (FE)

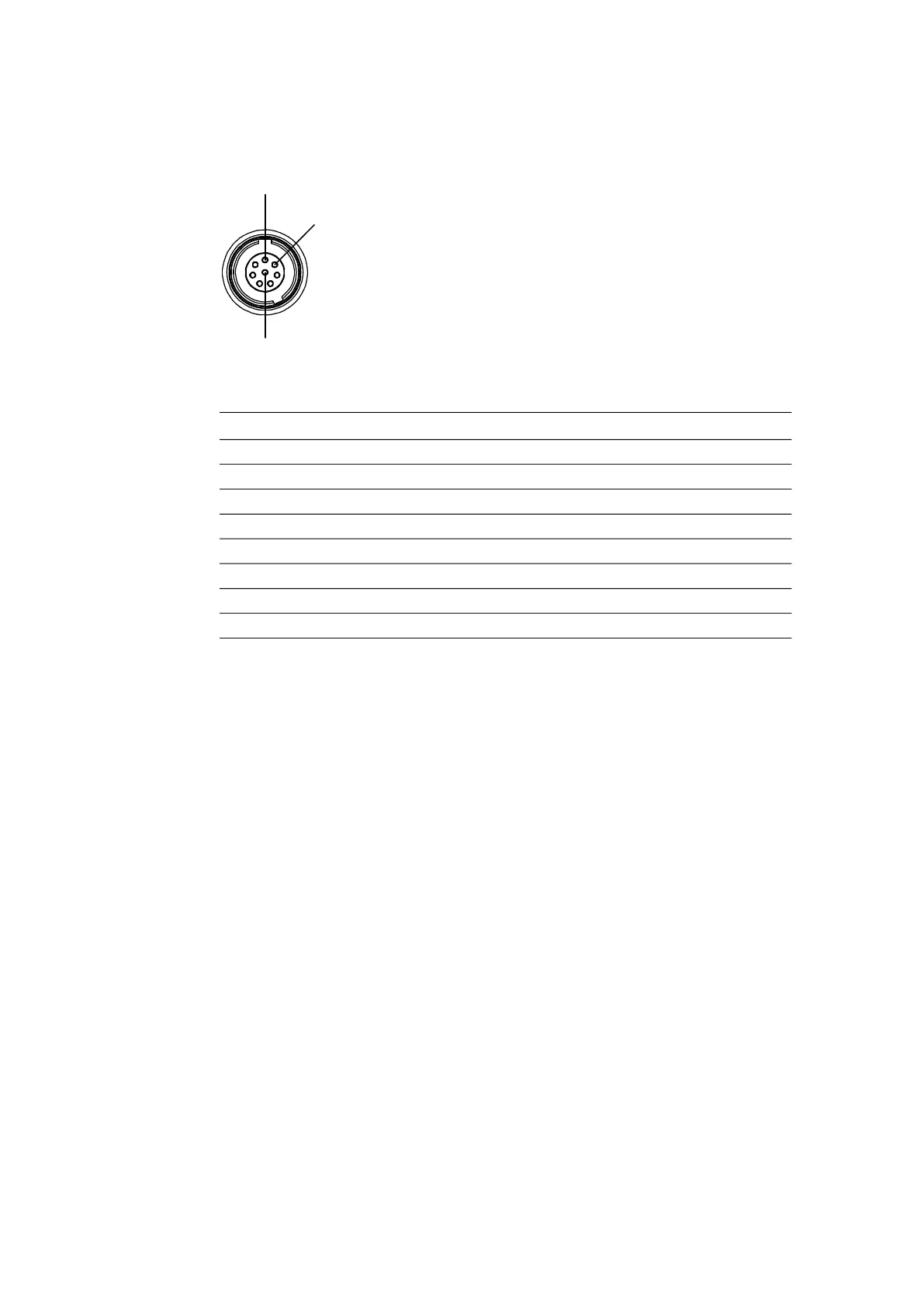

Fig. 16-4 Fast Ethernet connection (FE)
Pin Signal Meaning
1 UBATT+ Supply voltage, positive
2 UBATT+ Supply voltage, positive
3 UBATT- Supply voltage, negative
4 RX+ Receiving data, positive
5 TX- Transmitting data, negative
6 RX- Receiving data, negative
7 UBATT- Supply voltage, negative
8 TX+ Transmitting data, positive
7
8
1
