ETAS ES800 System | User Guide
12.3 Gigabit Ethernet Interface (GE)
The ES800 modules provides a Gigabit Ethernet GE interface. This interface can be
used as the connection of a Gigabit Ethernet interface of additional ETAS modules
(ES88x/ ES89x, ES600.2).
12.3.1 Power Supply of Connected Modules
The module can take over the power supply of ETKs that are connected to the
Gigabit Ethernet GE interface. The power supply is also handled via the Ethernet
connecting cable. Observe the maximum output current at the Ethernet interface.
12.3.2 Display of Function State of GE Interface

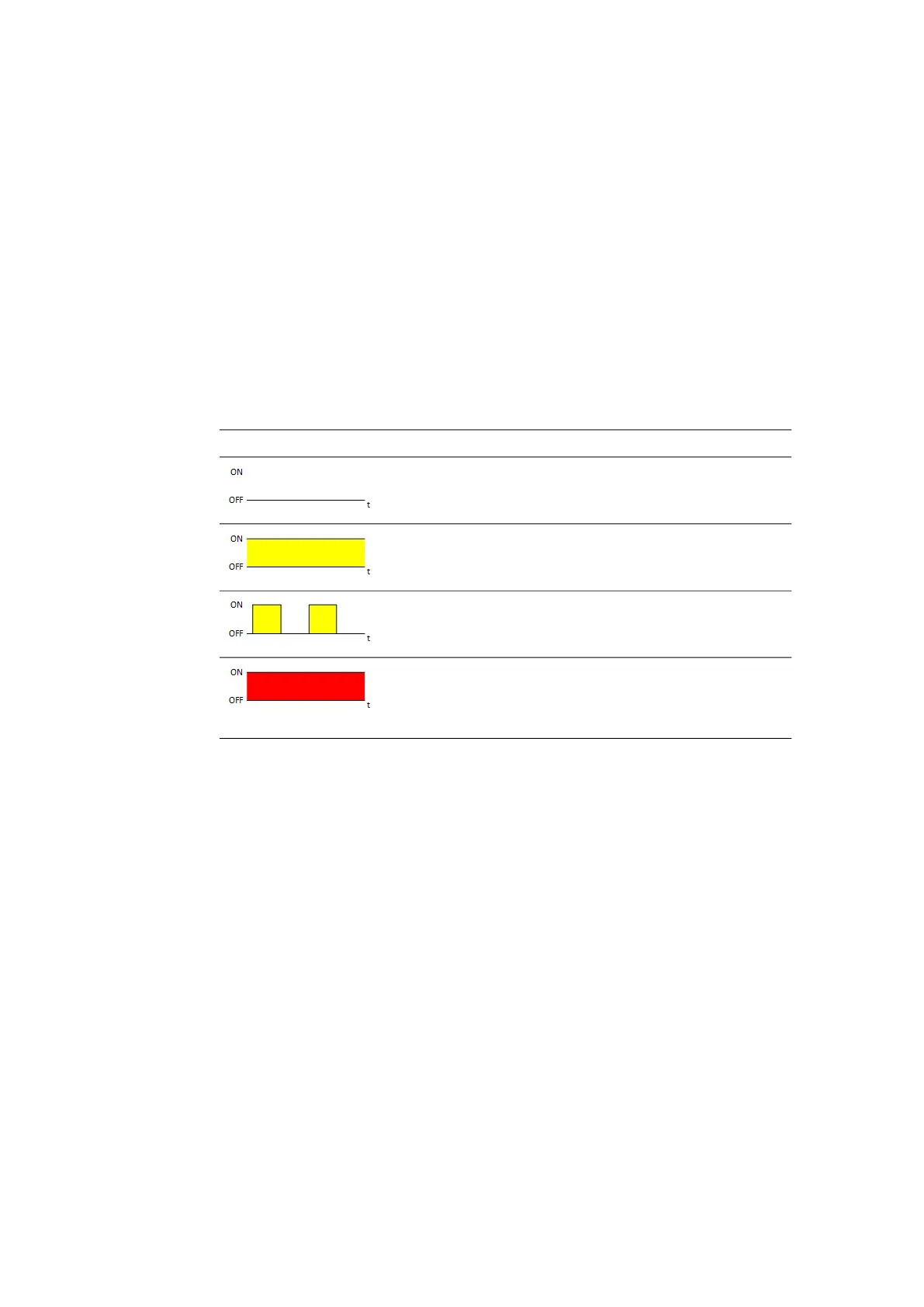

When the module is switched on, the GE LED assigned to the connection indicates
the following function states:
GE LED Description State
Off Physical Ethernet connection not avail-
able
Illuminated
yellow
Physical Ethernet connection present at
the GE interface
Flashing yellow Ethernet connection at the GE interface
active
Illuminated red Error state:
Ethernet data exchange interrupted,
disabled or current overload from con
-
nected module
