ETAS ES800 System | User Guide
17.8 Cables and Accessories for the CAN Interface
17.8.1 Combined CAN/LIN/FLX Cable

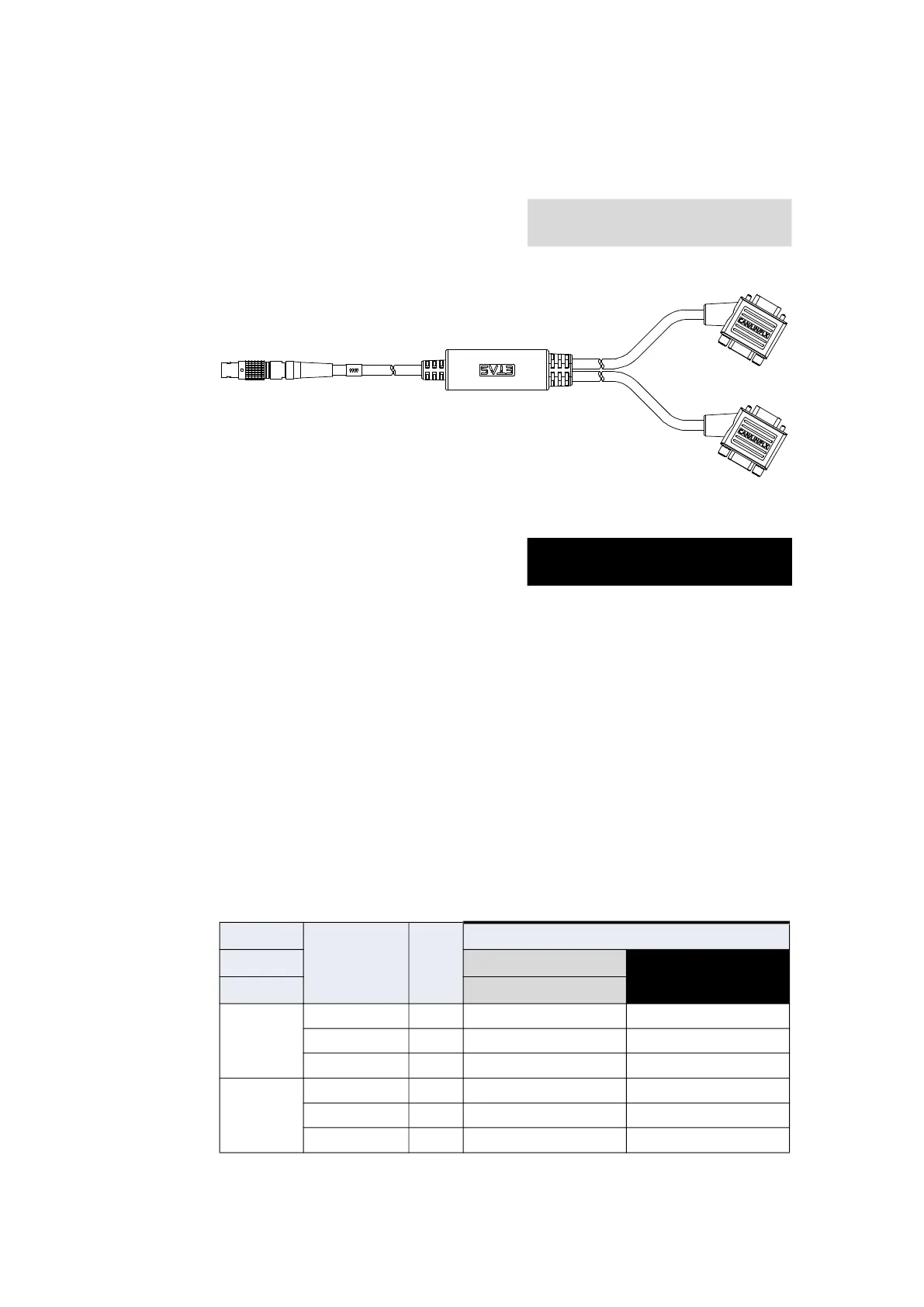

Fig. 17-28 Cable CBCFI100
Mapping of DSUB Socket-Plug Combinations of the Cable
The cable CBCFI100 allows using both interfaces of a connection at the same time.
The Lemo plug of the cable is connected to one of the combined interfaces CAN/
CAN, FLX/FLX or CAN/LIN. For looping into the vehicle bus, the other end of the
cable features:
- a 9-pin DSUB socket-plug combination marked in gray (side B and C)
- a 9-pin DSUB socket-plug combination marked in black (side D and E)
Mapping of DSUB Socket-Plug Combinations to the ES88x/ ES89x
If one cable CBCFI100 each is used at the interfaces CAN/CAN, CAN/LIN of the
ES88x/ ES89x modules, these interfaces are mapped as follows to the DSUB
socket-plug combinations of the cables:
Side B / C
(Socket / Plug: gray)
CAN1 / CAN3 / CAN5
CAN2 / CAN4 / CAN5
Side A
Side D / E
(Socket / Plug: black)
Module Connection Cable Cable CBCFI100 in Fig. 17-28
Socket / plug Socket / plug
(DSUB, gray) (DSUB, black)
ES882.x CAN1/CAN2 1 CAN1 CAN2
CAN3/CAN4 2 CAN3 CAN4
CAN5/LIN 3 CAN5 LIN
ES891.x,
ES892.x
CAN1/CAN2 1 CAN1 CAN2
CAN3/LIN 2 CAN3 LIN
CAN4/CAN5 3 CAN4 CAN5
