ETAS ES800 System | User Guide
16.10.8 CAN Connection (CAN1/CAN2)

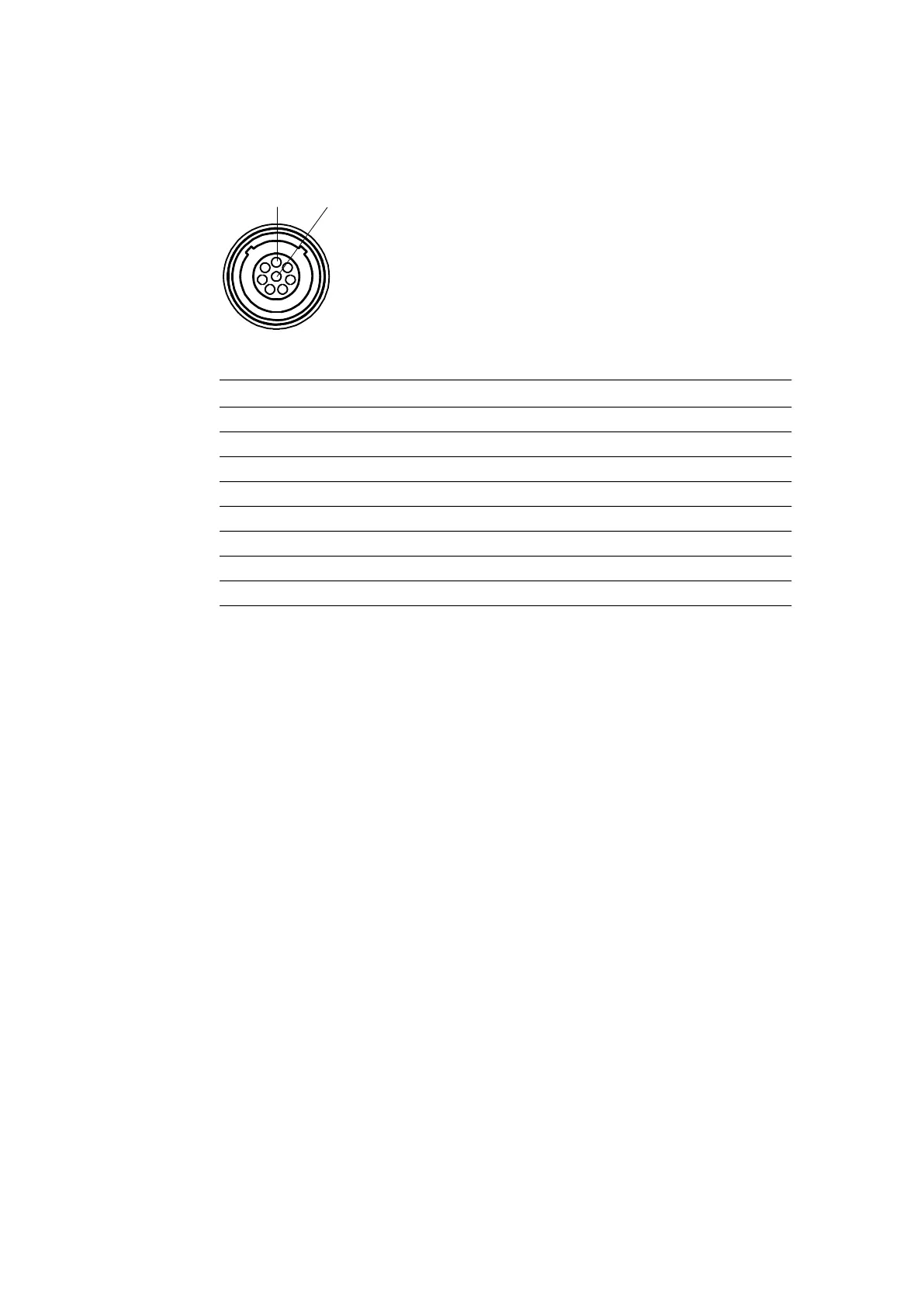

Fig. 16-9 CAN connection (CAN1/CAN2)
Pin Signal Meaning
1 - Reserved
2 CAN1_L CAN 1, low
3 CAN1_GND_1 CAN 1, ground
4 CAN2_H CAN 2, high
5 CAN2_GND CAN 2, ground
6 CAN1_GND_2 CAN 1, ground
7 CAN1_H CAN 1, high
8 CAN2_L CAN 2, low
1
8
