6.4 Connections and Control Elements
The front side of the ES830.1 module features the following connections and con-
trol elements:

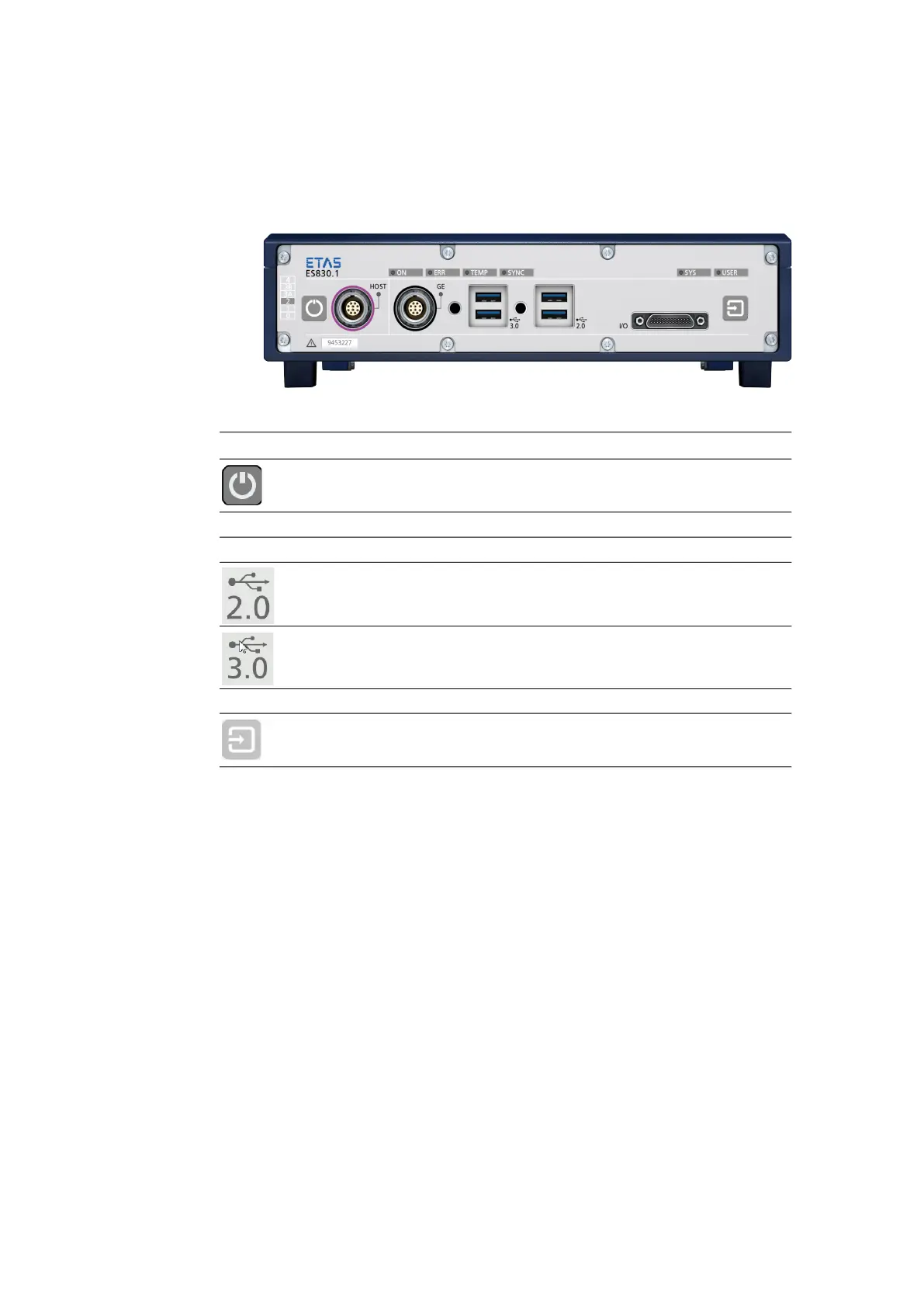

Fig. 6-2 ES830.1 Front Side
Information on combining modules of the ES800 system with ETAS modules from
other series can be found in chapter
3.7 on page 27.
Name Interface For description see
"Power" key for switching on
and off
Chapter 6.5.5 on page 53
HOST 1 x Gigabit Ethernet (HOST) Chapter 12.1 on page 89
GE 1 x Gigabit Ethernet Chapter 12.3 on page 91
2 x USB 2.0 Chapter 6.5.2 on page 52
2 x USB 3.0 Chapter 6.5.2 on page 52
I/O Digital inputs and outputs Chapter 6.5.3 on page 52
"User" key Chapter 6.5.6 on page 53
