·132·
Operating manual
CNC 8055
CNC 8055i
7.
TABLES
·T· MODEL
SOFT: V02.2X
Tool Offset table

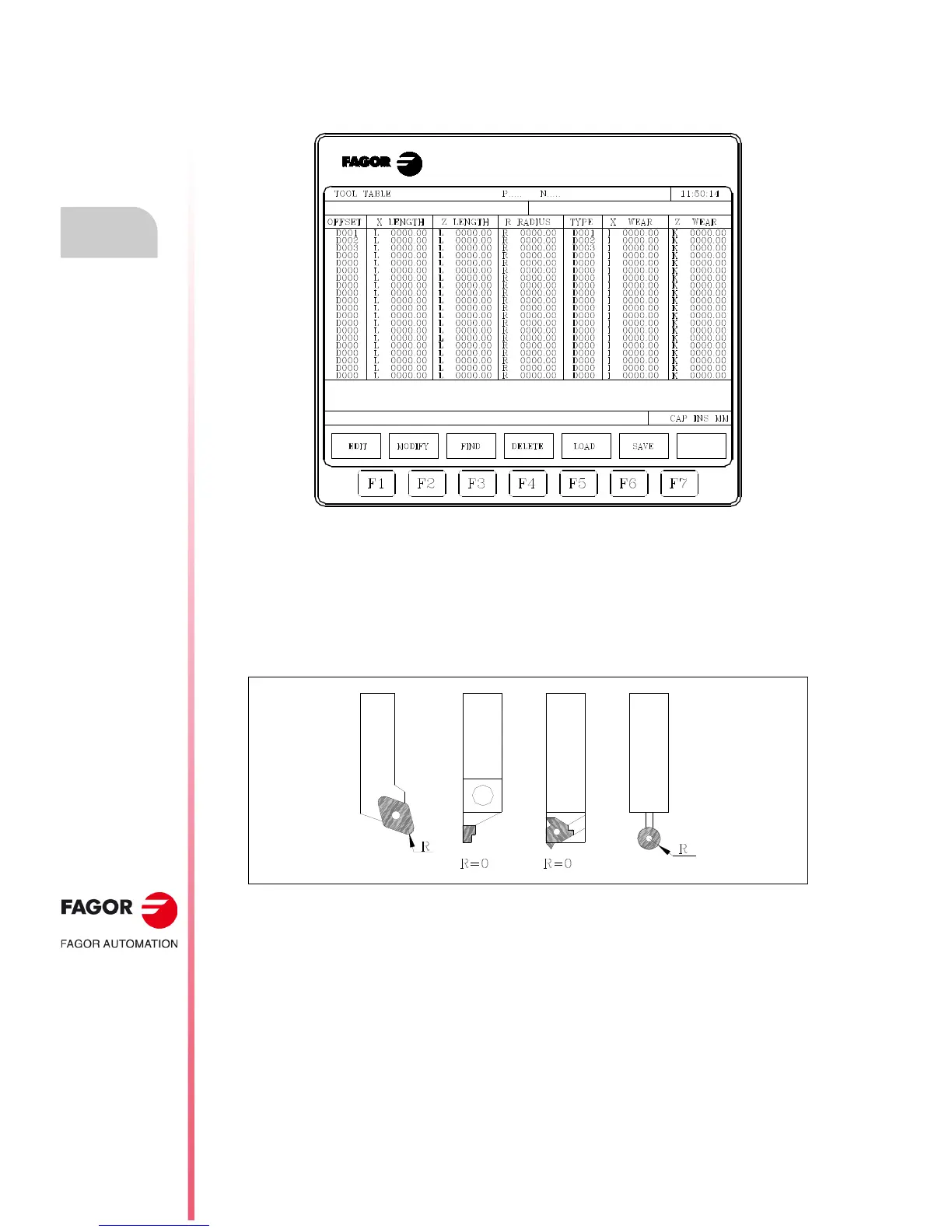

7.4 Tool Offset table
This table stores the dimensions of each tool.
The values of this table can also be modified from the PLC and from the part-program by means
of the high level variables associated with the tools.
The end of the chapter describes how to edit the table. Each offset has a number of fields containing
the tool dimensions. These fields are:
Tool length along the X and Z axes (in radius).
Tool radius.
Tool length wear (I) along the X axis.
It is given in diameters. The CNC will add this value to the nominal length along the X axis in order
to calculate its real length (X+I).
Tool length wear (K) along the Z axis.
The CNC will add this value to the nominal length along the Z axis in order to calculate its real length
(Z+K).
