Operating manual
CNC 8055
CNC 8055i
EXECUTE / SIMULATE
4.
·T· MODEL
SOFT: V02.2X
·69·
Display
4.2.7 Execution time display mode

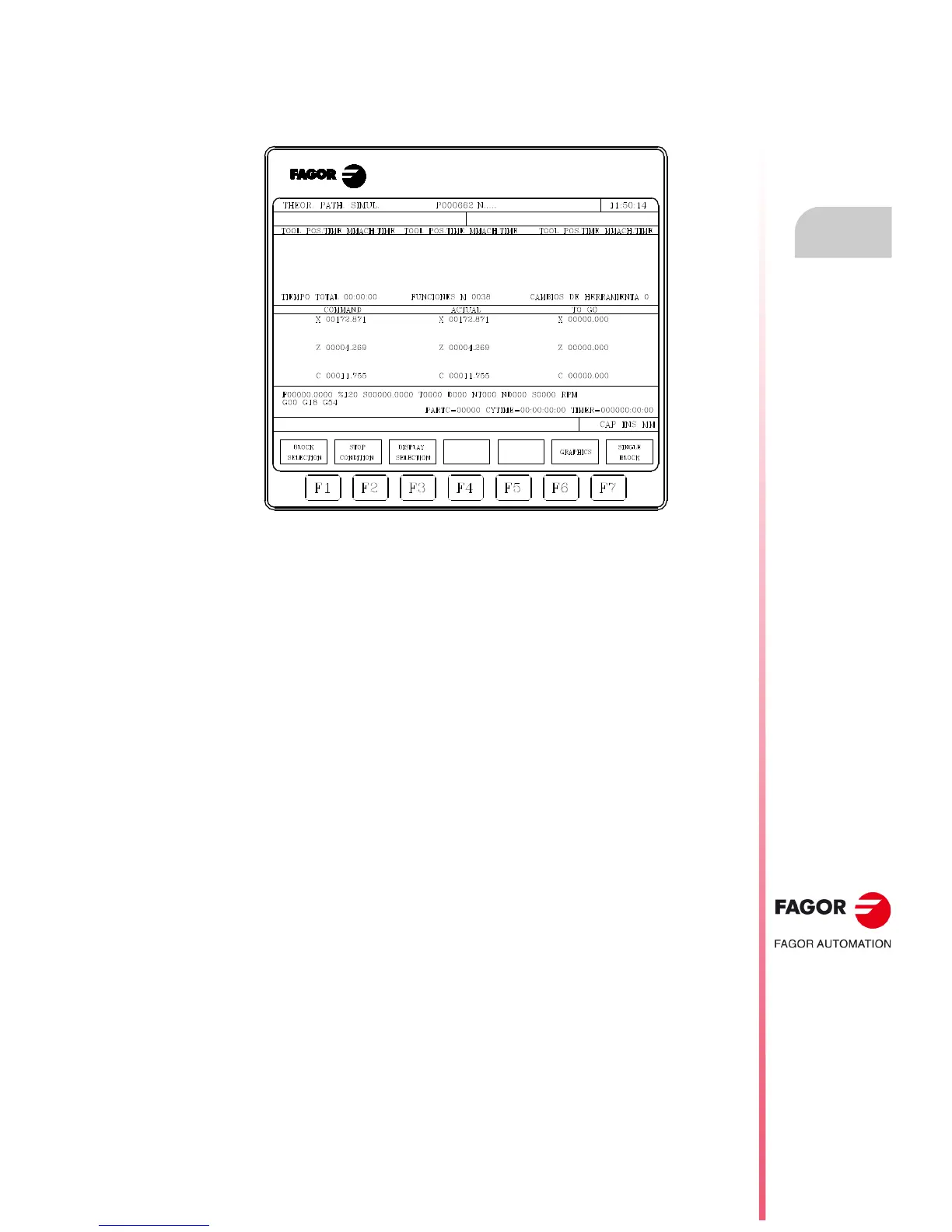

This option is available while simulating a part-program and it will display the following fields or
windows:
• A display window shows the estimated program execution time at 100% of the programmed
feedrate. This display area shows the following information:
The time each tool (TOOL) takes to execute the positioning moves (POS.TIME) as well as the
machining moves (MACH.TIME) indicated in the program.
The total time required to execute the complete program.
The M functions being executed in the program.
The number of tool changes performed during the execution of the program.
• The position values for the axes of the machine.
It must be borne in mind that the display format for the axes is established by machine parameter
"DFORMAT" and that real or theoretical position values will be shown depending on the setting
of machine parameter "THEODPLY".
Each axis is provided with the following fields:
COMMAND Indicates the programmed coordinate or position value which the axis must reach.
ACTUAL Indicates the actual (current) position of the axis.
TO GO Indicates the distance which is left to run to the programmed coordinate.
