Operating manual
CNC 8055
CNC 8055i
EXECUTE / SIMULATE
4.
·T· MODEL
SOFT: V02.2X
·65·
Display

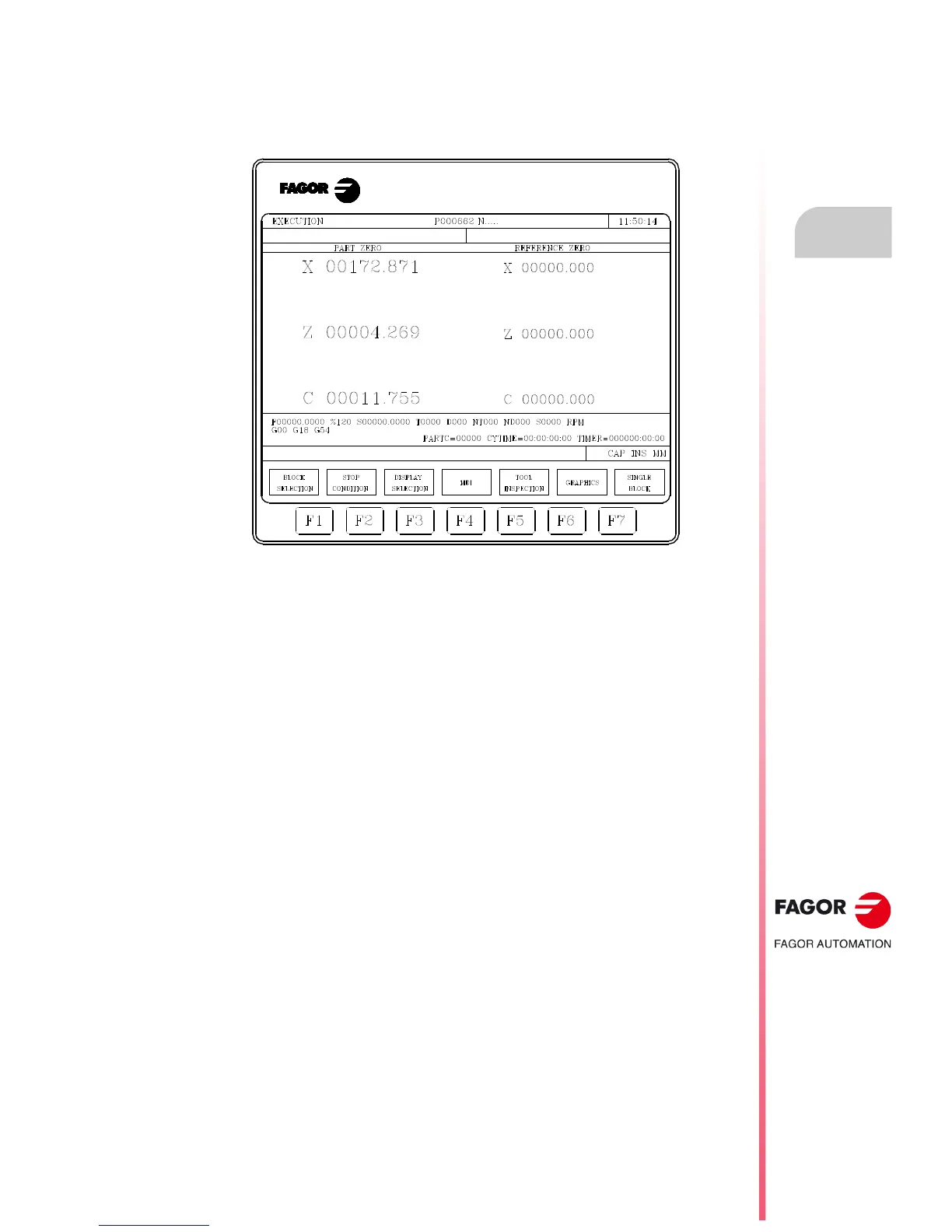

4.2.2 Position display mode
This display mode shows the position values of the axes.
This display mode shows the following fields or windows:
• The real position values for the axes that indicate the current position of the machine.
It must be borne in mind that the display format for the axes is established by machine parameter
"DFORMAT" and that real or theoretical position values will be shown depending on the setting
of machine parameter "THEODPLY".
When the C axis is active, the position of the X-C axes referred to part zero correspond to the
transformed coordinates.
Each axis is provided with the following fields:
PART ZERO This field shows the real axis position with respect to part zero.
MACHINE ZERO This field shows the real axis position with the respect to machine
reference zero (home).
4.2.3 Part-program display
Displays a page of program blocks among which the block being executed is highlighted.
