·216·
Operating manual
CNC 8055
CNC 8055i
12.
MACHINE PARAMETERS
·T· MODEL
SOFT: V02.2X
Leadscrew error compensation tables
12.3 Leadscrew error compensation tables

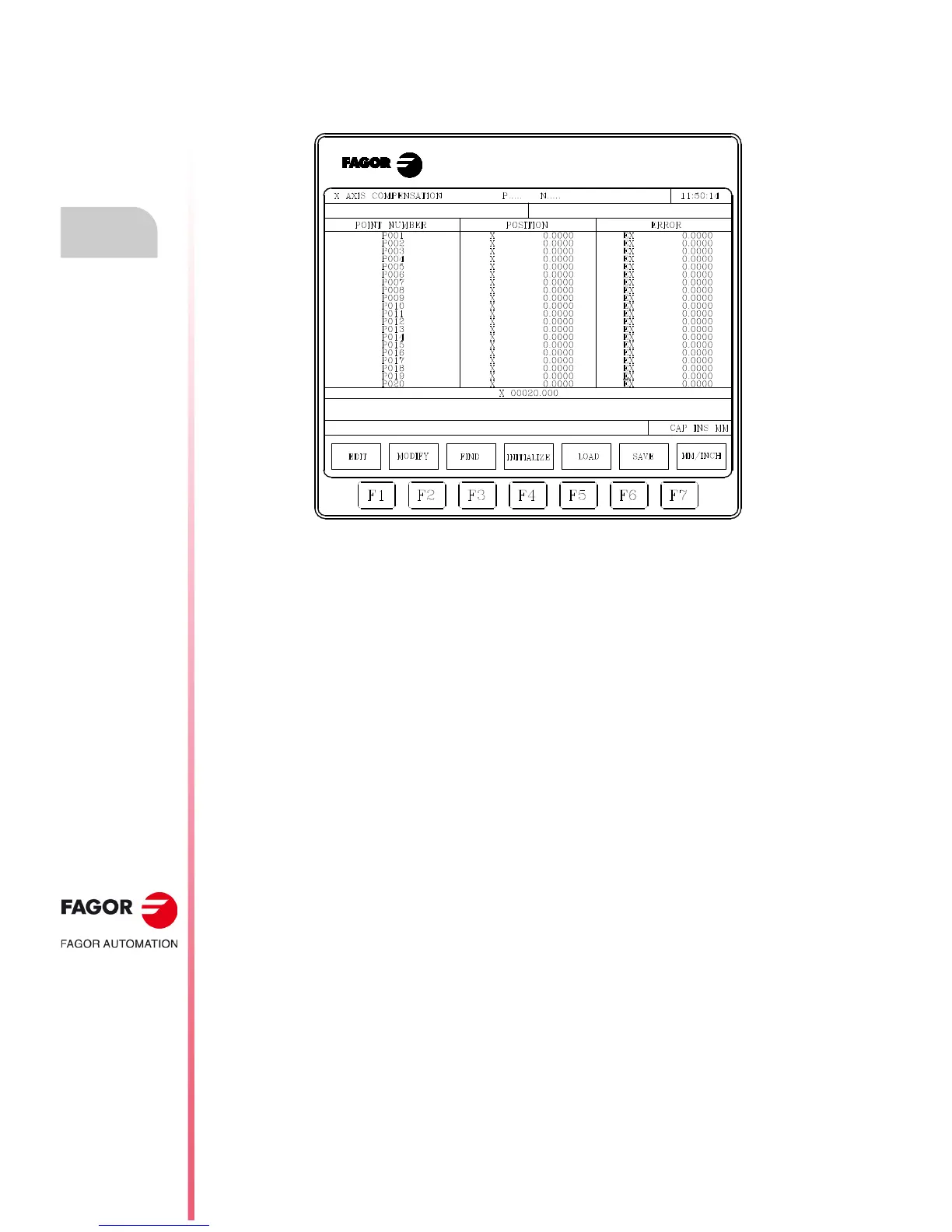

The tables for leadscrew error compensation have the following structure:
The number of points of each of these is defined by means of the axis machine parameter
"NPOINTS". The following is defined for each of line:
• The position of the axis to be compensated.
• The amount of error of the axis in that point.
Also, the current position of the selected axis is displayed and updated as the machine axis moves.
This position is updated as the axis moves.
