·136·
Operating manual
CNC 8055
CNC 8055i
7.
TABLES
·T· MODEL
SOFT: V02.2X
Tool geometry table.

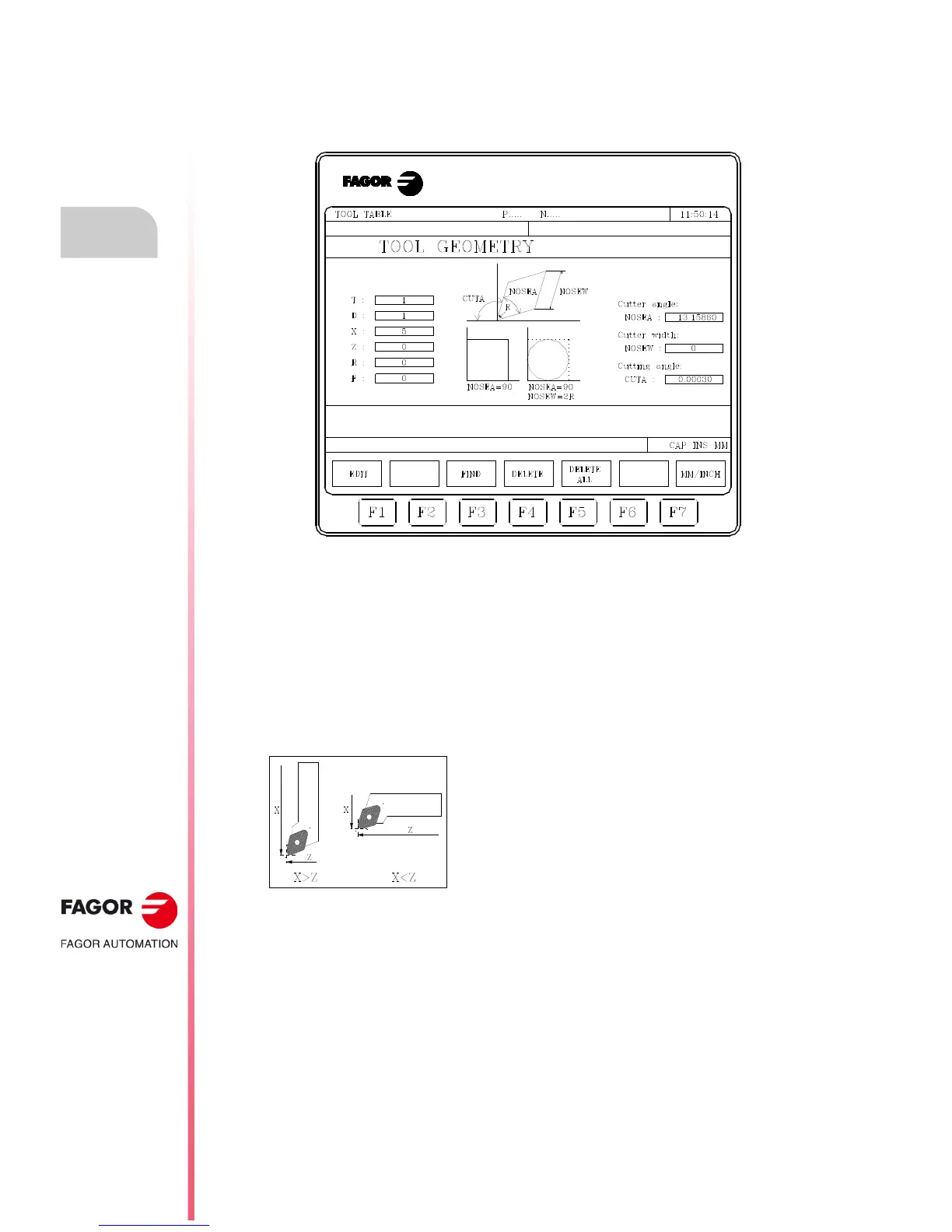

7.5 Tool geometry table.
This table contains information such as cutter angle, cutting angles, etc. regarding the geometry
of the available tools.
The data corresponding to each tool is contained in the following fields:
Tool data contained in other tool tables:
"T" Tool number.
"D" Associated tool offset number (tool table)
"X" Tool length along X axis (tool offset table).
"Z" Tool length along Z axis (tool offset table).
"R" Radius of the cutter (tool offset table)
"F" Location code or type of tool (tool offset table).
Cutter angle (NOSEA).
Indicates the angle formed by the sides of the cutter and it is given in degrees.
If the "X" length assigned to a tool is greater than the "Z" length
value, the CNC will show a tool with a vertical handle and when
"X" is shorter than "Z", with a horizontal handle.
