Operating manual
CNC 8055
CNC 8055i
TABLES
7.
·T· MODEL
SOFT: V02.2X
·137·
Tool geometry table.
Cutter width (NOSEW).
Cutting angle (CUTA).
The parameters corresponding to the cutter angle (NOSEA) and the cutter width (NOSEW) must
always be defined.
The cutting angle (CUTA) must only be defined when the selected tool type (location code "F") is
F1, F3, F5 or F7.
If the selected tool type is F0 or F9, it is not necessary to define any parameter and if it is F1, F3,
F5 or F7, the following parameters must be defined: the cutter angle (NOSEA), the cutter width
(NOSEW) and the cutting angle (CUTA).
When the selected tool type is F2, F4, F6 or F8, only the cutter angle (NOSEA) and width (NOSEW)
must be defined.
When using a drill bit or end-mill, Tool type (location code) F10 must be used being necessary to
define the values of of NOSEW (cutter width) and NOSEA (cutter tip angle).

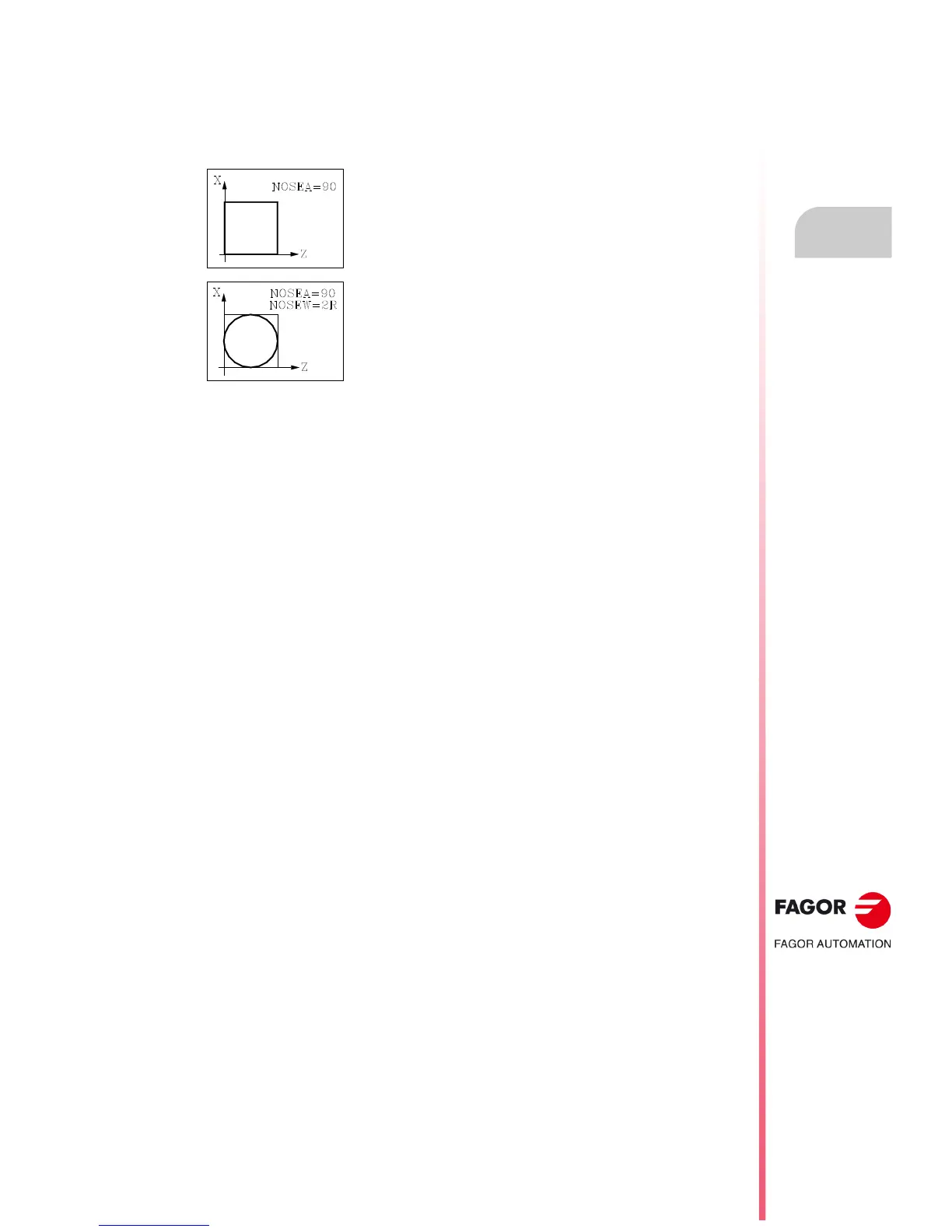

When the cutter is square, its angle value will be 90 (NOSEA = 90).
When the cutter is round, the cutter angle will be 90 (NOSEA=90) and
the parameter corresponding to the cutter width must be assigned its
diameter value (NOSEW = 2R).
