Operating manual
CNC 8055
CNC 8055i
MACHINE PARAMETERS
12.
·T· MODEL
SOFT: V02.2X
·217·
Cross compensation tables
12.4 Cross compensation tables

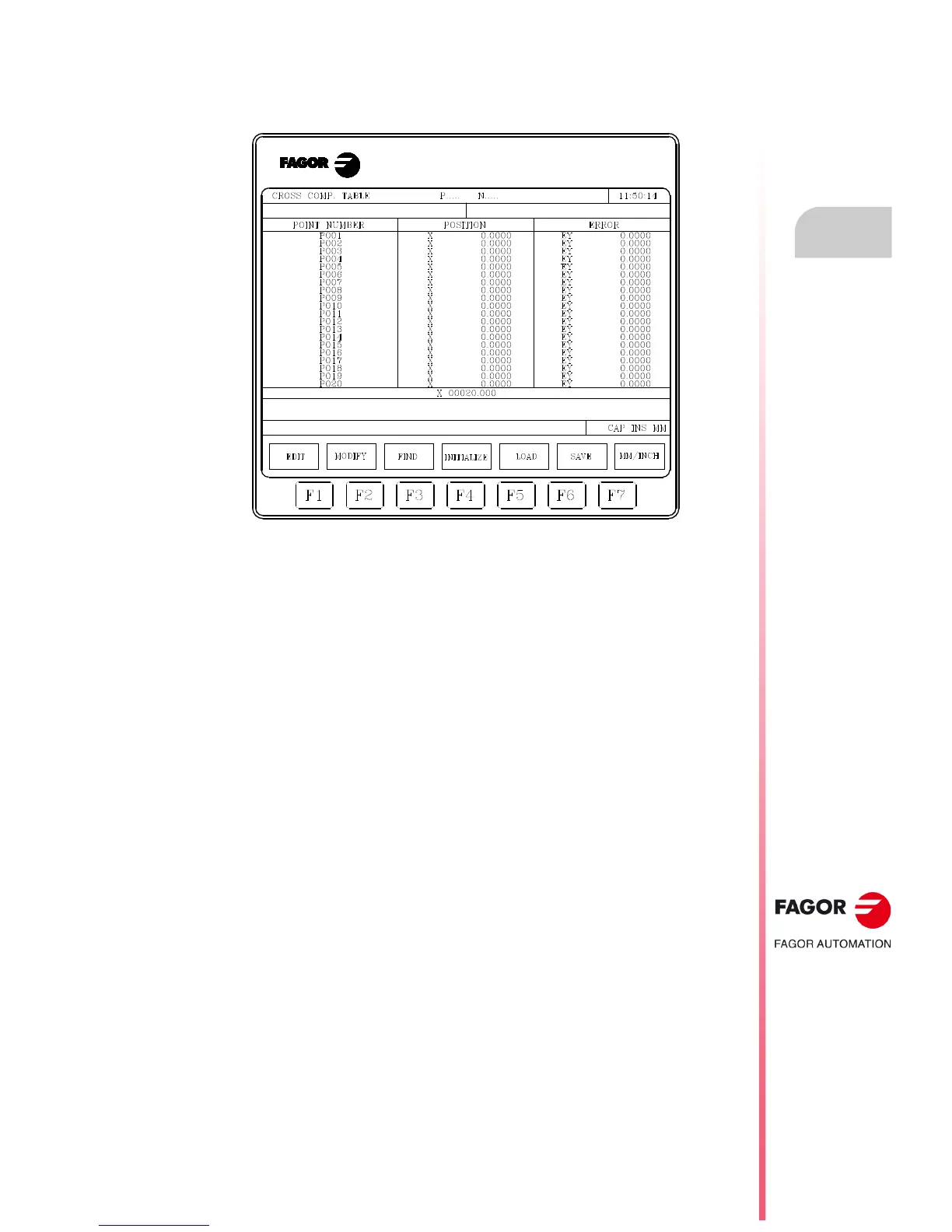

The tables corresponding to cross compensation have the following structure.
The number of points of each table is defined by means of the general machine parameter
"NPCROSS", "NPCROSS2" and "NPCROSS3" respectively.
Each table defines:
• The position of the axis causing the error.
• The error suffered by the axis at that point.
Also, the current position of the selected axis is displayed and updated as the machine axis moves.
This position is updated as the axis moves.
