GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-145

8-6-2-1 Perform Software Reloading in the Service Platform (cont’d)

9.) Select “Reload System Software”

10.)Verify that “Local Archive” is available under Dataflow.

11.)Press “ReLoad”.

12.)Confirmation message pops up.

13.)Press “Yes” to proceed.

14.)Progress bar is displayed

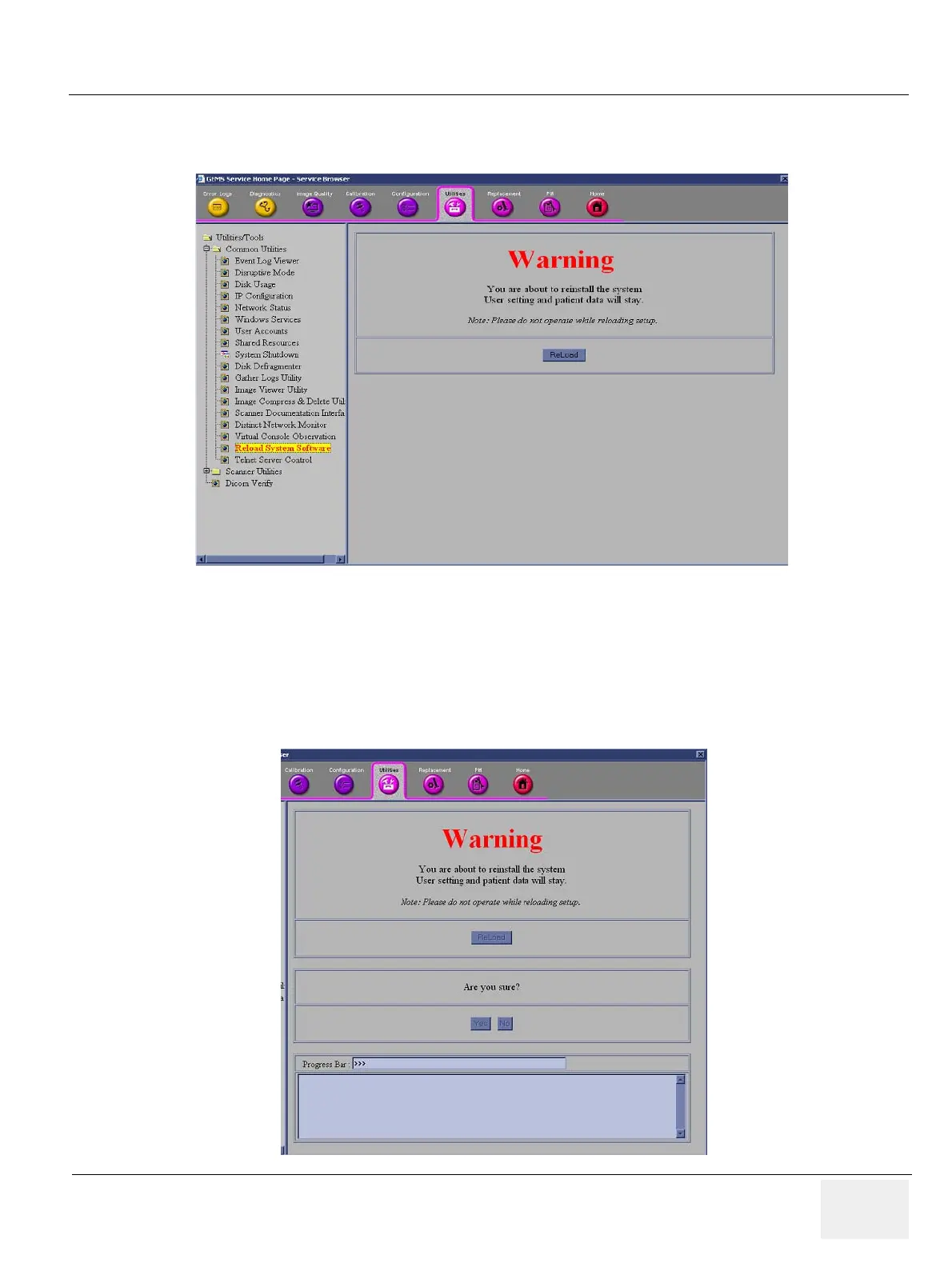

Figure 8-217 Reload system Software

Figure 8-218 Reloading setup in progress
