Start an Examination
4-16 Vivid S70 / S60 – User Manual
BC092760-1EN
01
button to the annotation Right). Annotation buttons with toggle
functionality are marked with a circular arrow.
To create a toggling annotation:
1. Enter up to three text entries separated by a colon in the
desired location (e.g. “Left:Right”).
To create a library
1. In the User-defined library field, type a name for the library
to be created, then select Create.
2. Enter pre-defined texts as described in step 2 above.
3. Press Save library.
Automatically enter Bodymark
Annotation has the ability to configure Active Function at freeze
in 2D and Color flow modes as: None, Body Mark or Text.
If Body Mark is selected, the default bodymark will appear
automatically at “Home” position. See bottom left in Figure 4-8.
The default bodymark is the first in the list, see Figure 4-9.

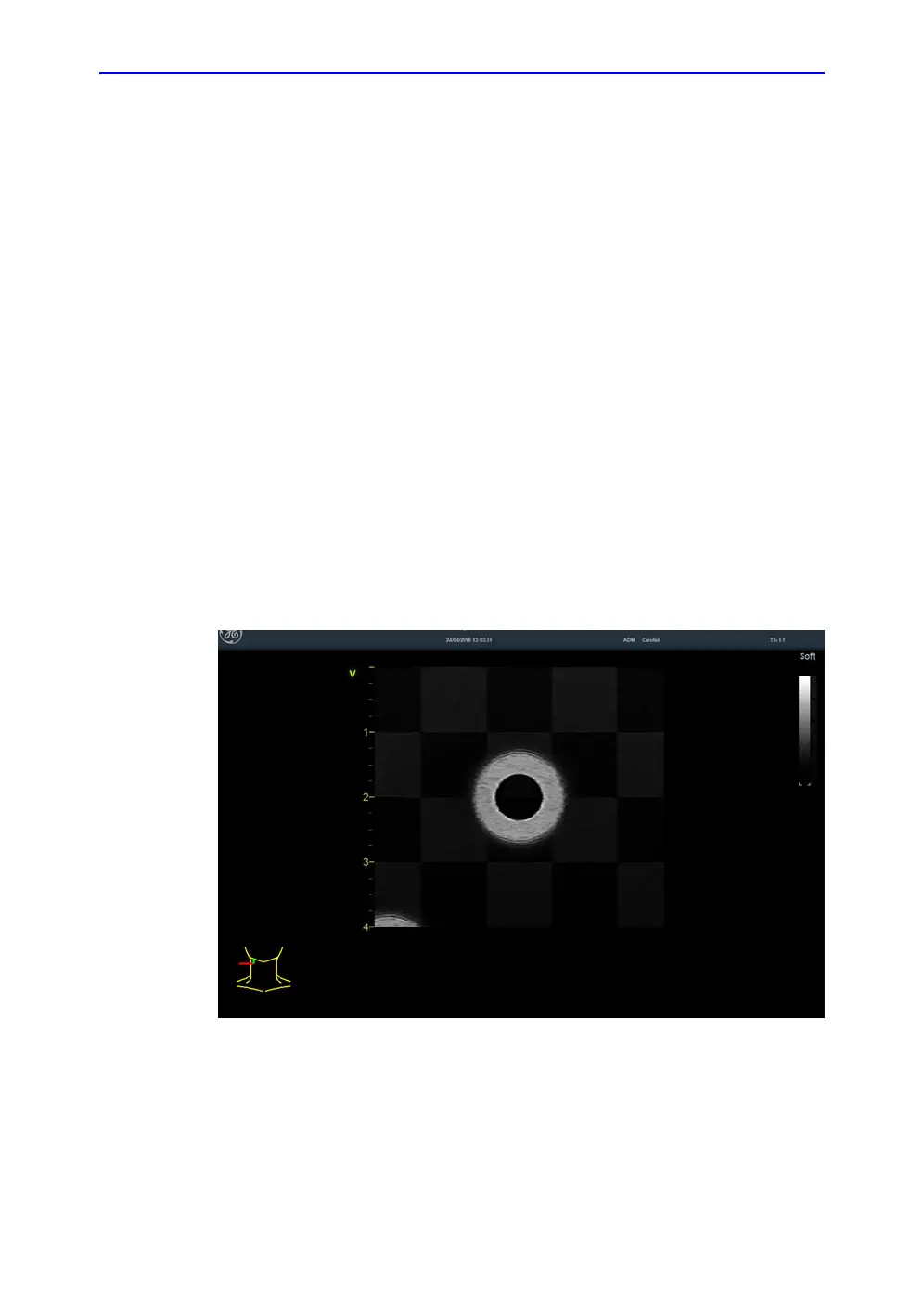

Figure 4-8. Home position
