144 KAYENNE — User Manual
Section 3 — System Operation
MatchDef Input Conversion

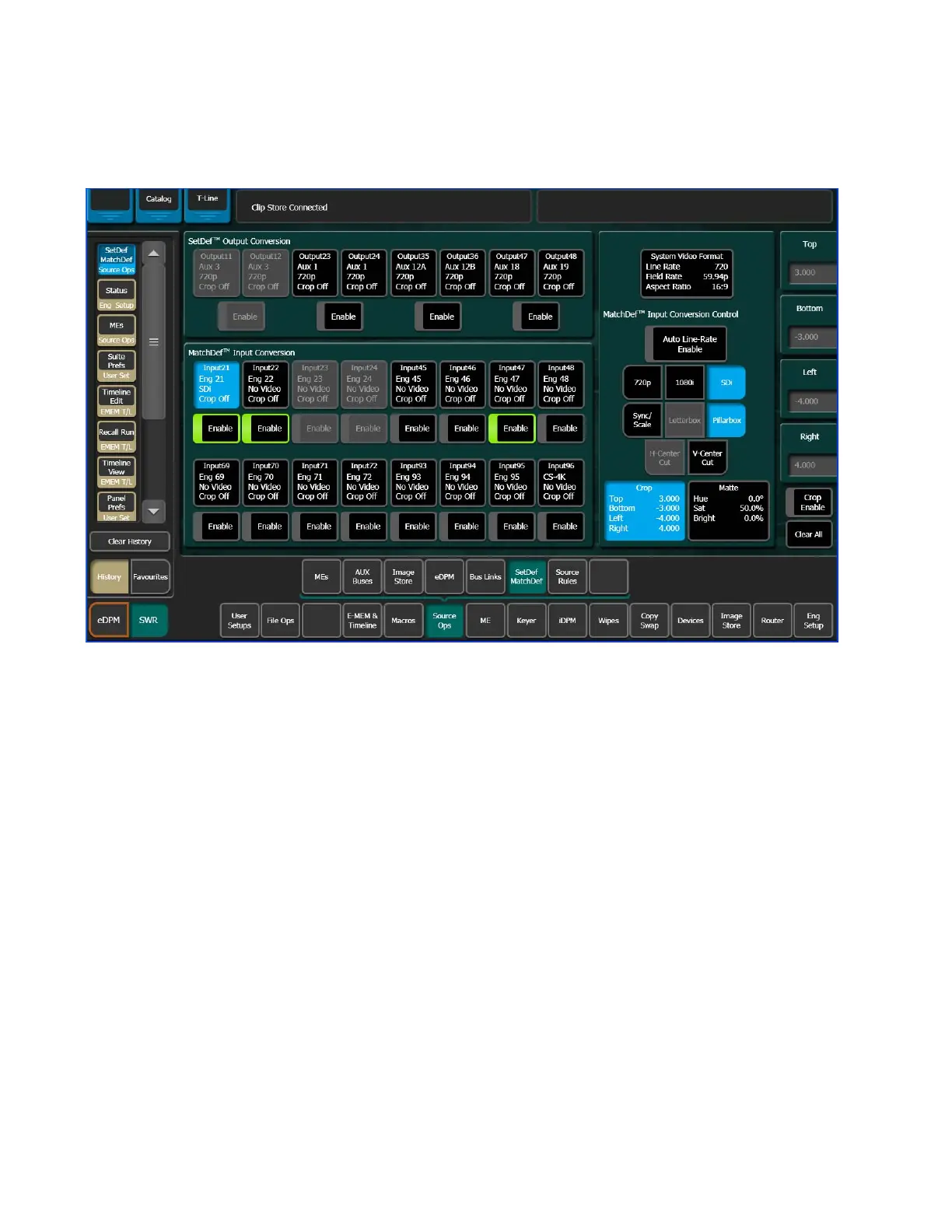

Figure 102. SetDef MatchDef Menu, MatchDef Selected
Each of the 16 Match Def buttons report the current source, format, and
crop status for that input.
The Enable buttons activate and deactivate conversion for the individual
input connector button located immediately above.
The currently operating Kayenne video standard is shown in the System
Video Format
status display on the upper right portion of the menu.
Auto Line-Rate Enable – When on, the Kayenne system detects the input video
format and automatically chooses the appropriate line rate for the selected
input. One frame of video is required for detection. If the incoming video
signal format changes, one incorrect frame of video will be displayed.
When Auto Line-Rate Enable is on, the 720p, 1080i, and SDi buttons below
are inactive.
Note If the incoming source is has a noisy signal, choosing the correct frame rate
manually may provide better performance.
When Auto-Line Rate Enable is off, the conversion format for the currently
selected input can be chosen from the labeled buttons in the right pane
(
720p, 1080i, SDi).
