Control Panel Overview
Local E-MEM Module
The Local E-MEM Module is part of an ME Stripe and is organized into two
sections, the mode area (left), with supporting buttons and status display,
and two rows of function buttons (right) for mode selection and effects
control (
Figure 72). For more information about using E-MEMs, see
E-MEM Operations on page 173.
Introduced in Kayenne 2.0, Bank buttons BNK 0 - BNK 3 have been added to
the Local E-MEM Modules (right side of keypad) to provide faster access to
banks (
Figure 72). A single press of the button delegates to the bank indi-
cated, a DPOP of the button takes you to the bank indicated + 4, e.g. one
press for Bank
0, DPOP for Bank 4. The highest bank available is Bank 7
(DPOP of
BNK 3 button). The buttons will be unlit for Banks 8 and 9. A
DPOPed selection high tallies cyan (blue) color.

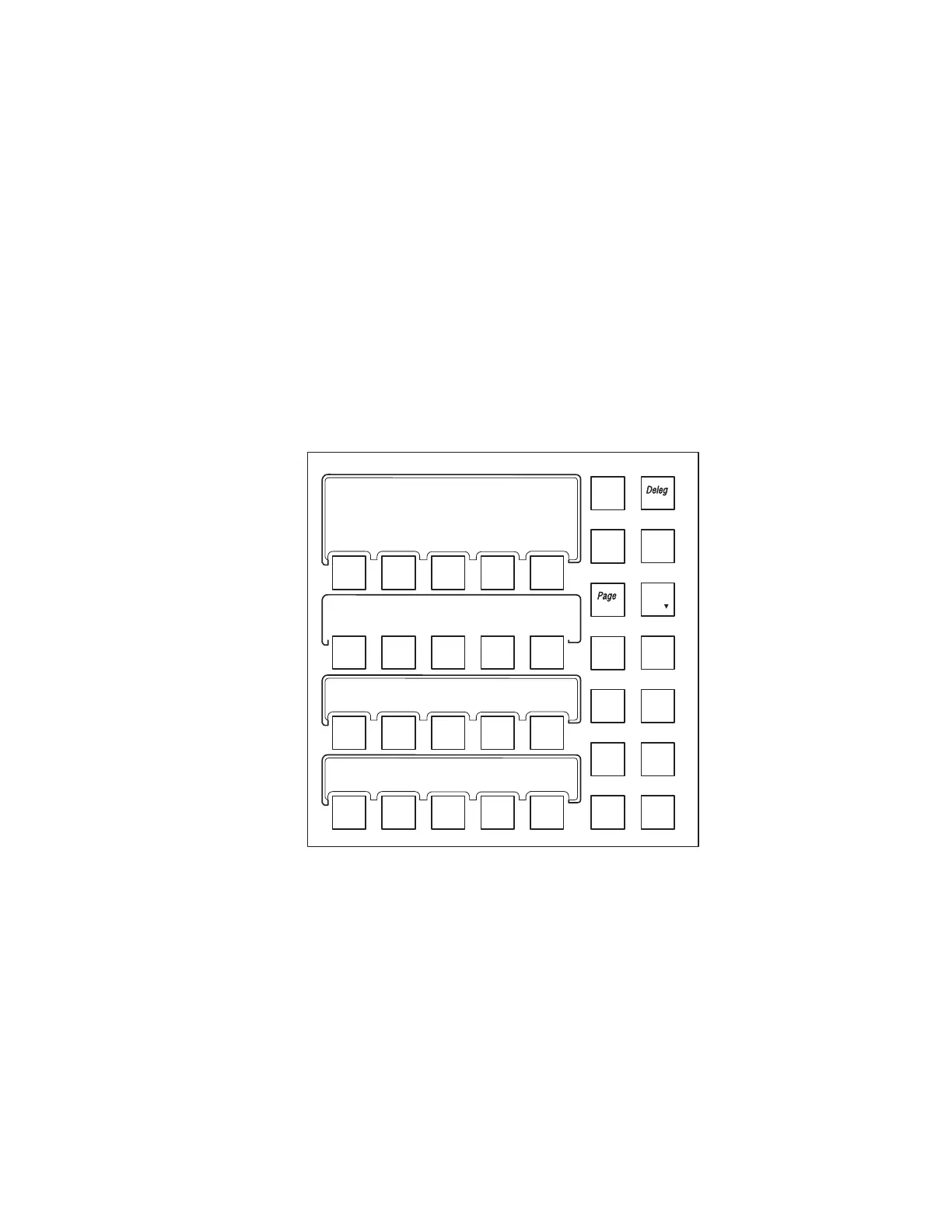

Figure 72. Local E-MEM Module Example
EMEMEMEM
MaMacroro
RevRev
RwdRwd
RunRun
Transans
RateRate
Auto
Run
Run
Panelnel
MemMem
MeMenu
LRNLRN BNK3BNK3
BNK2BNK2
BNK1BNK1
BNK0BNK0
9 9 8 8 7 7
SEQSEQ 6 6 5 5 4 4
DISDIS 3 3
2 2 1 1
BNKBNK Ø . .
1010 E102KFKF04102
8623267_13_r1
