KAYENNE — User Manual 23
Kayenne Control Surfaces
• KAYN-PNL-SRC-35, 25, 15 - Source Module, available in 35, 25, and 15
button widths.
Note 15 button widths are only available with 1-ME Control Panels.
• KAYN-PNL-AUX-35, 25 - Local Aux Module, available in 35 and 25
button widths.
• KAYN-PNL-BAR-35, 15 - System Bar, available in two sizes to match
various Control Panel widths.
• KAYN-PNL-DCM - Device Control Module, available as an option for
3 and 4-ME panels and as a satellite panel module.
Touch Screen Menu Panel and PC Menu Control
Each Kayenne control surface includes a Menu Panel that features a wide
format 15 in. touch screen display. An articulated arm is also included,
offering a wide variety of installation options (
Figure 8). The Menu Panel
has a standard VESA-75 hole pattern and M4 threads, compatible with this
and many other mounting devices.
The Menu Panel has four USB ports, two on the right side edge of the panel
and two on the back for keyboard and mouse (wired or wireless are sup
-
ported).

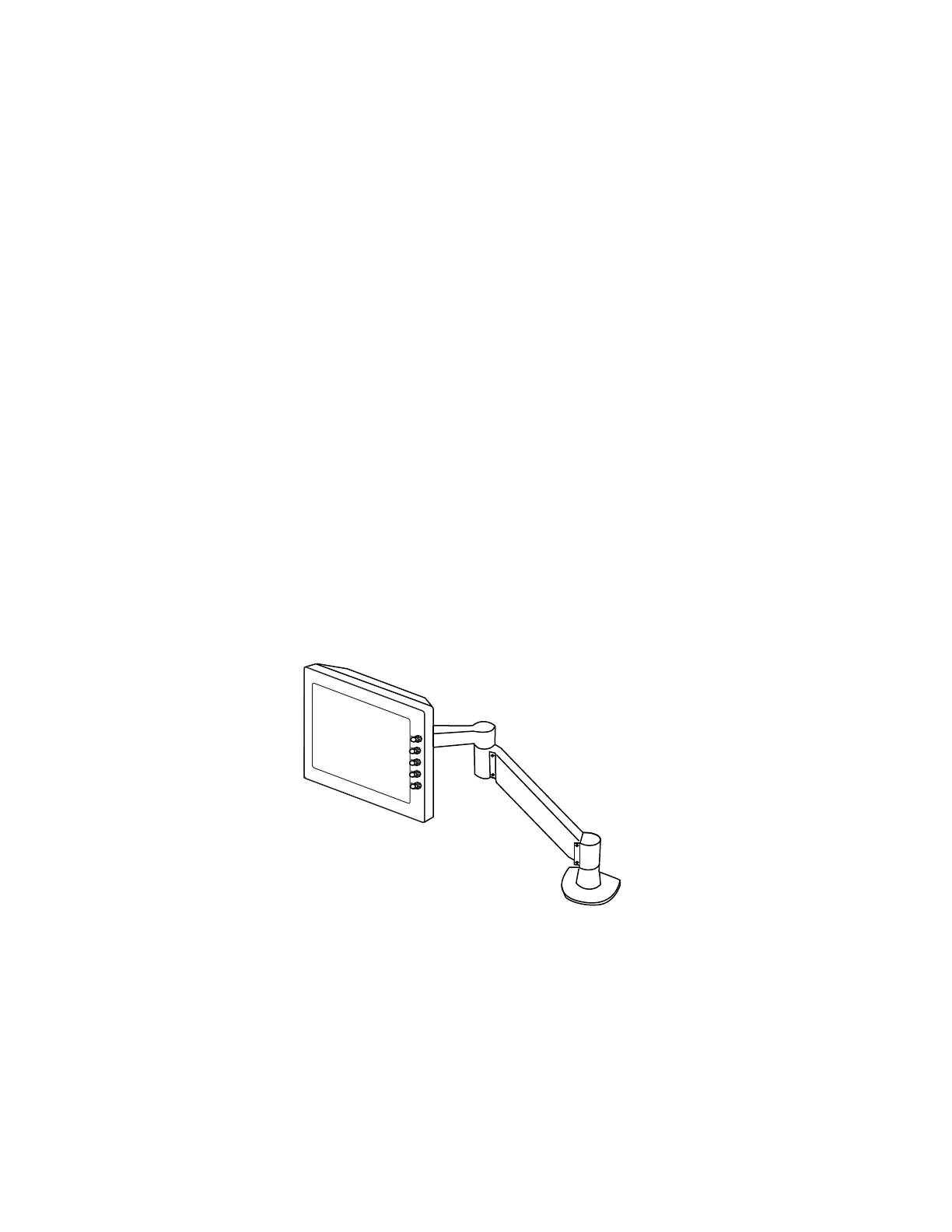

Figure 8. Menu Panel with Articulated Arm
An additional touch screen Kayenne Menu Panel is available as an option
(additional Menu Controller Board is required in the PCU).
It is also possible to run the Kayenne Menu application on a standard PC,
permitting mouse and keyboard control from a laptop, or remote control
from any location on the network.
