352 KAYENNE — User Manual
Section 3 — System Operation
ME Split Mode
The ME Mode menu is used to activate Split Mode on an ME and assign
resources to the partitions. Touch
ME, Mode to access the menu, then select
the desired ME and touch
Split to partition that ME (Figure 223).

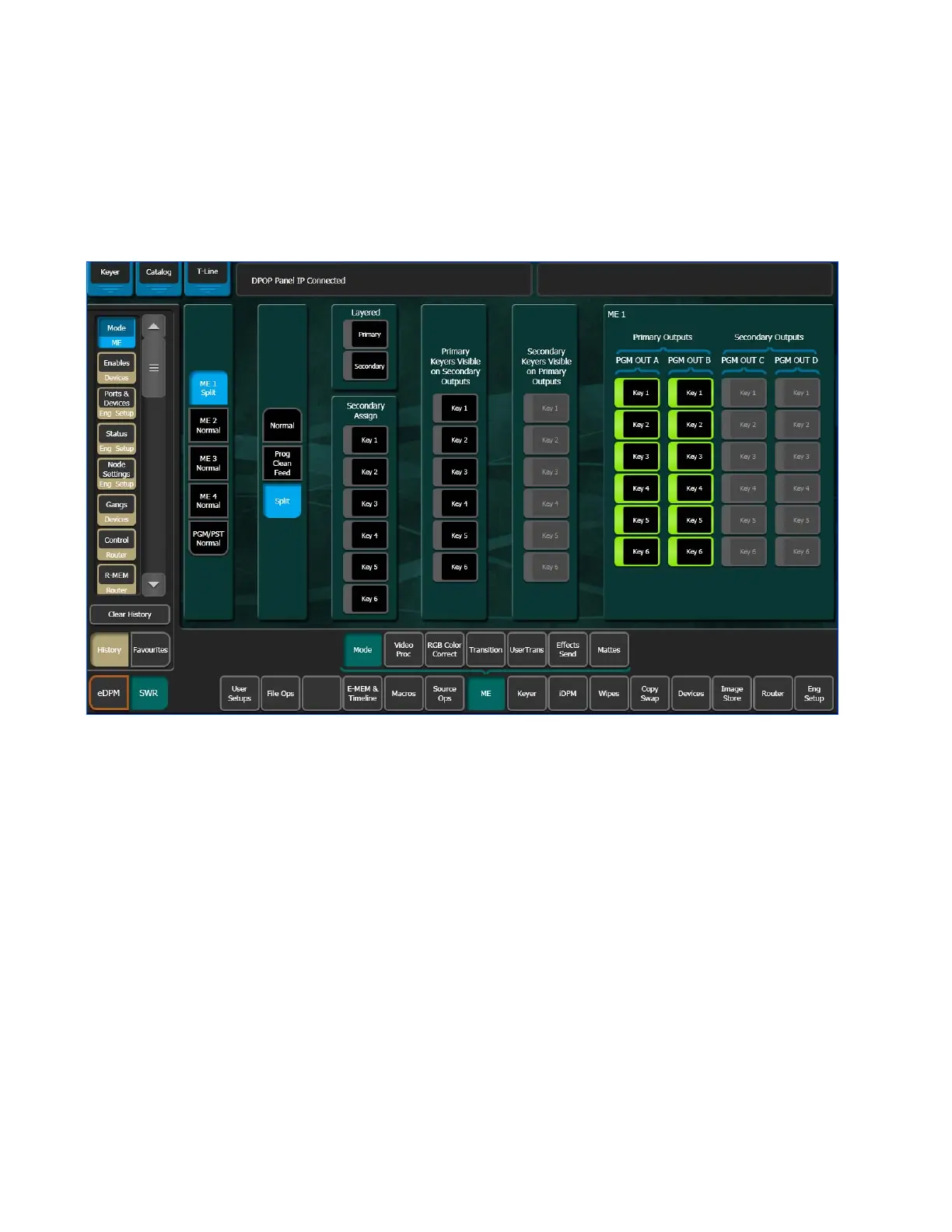

Figure 223. ME Mode Menu, Split ME Selected
In Split operating mode, the ME is divided into Primary and Secondary par-
titions. The Primary partition has the Pgm A and Pgm C outputs that use
the Background A and B buses, and the Secondary output has the Pgm B
and D outputs that use the Utility buses. The Pgm Out columns on the
menu are re-arranged when Split mode is selected to show the A and B
Primary outputs on the left and the C and D Secondary outputs on the
right.
The Secondary Assign pane is used to assign Keyers and Complex Wipe
generators to the Secondary partition. Assignments made here affect what
elements are learned and recalled by the E-MEM levels (see
Split MEs and
E-MEM Control on page 355). Touching an item so its yellow indicator illu-
minates assigns it to the Secondary partition. The buttons for these items
are then activated on the Secondary partition outputs. Unselected items
remain assigned to the Primary partition. Note that keyers can be activated
or deactivated (green button indicators on or off) on the individual outputs
if desired, the same as in Programmable Clean Feed mode.
