342 KAYENNE — User Manual
Section 3 — System Operation

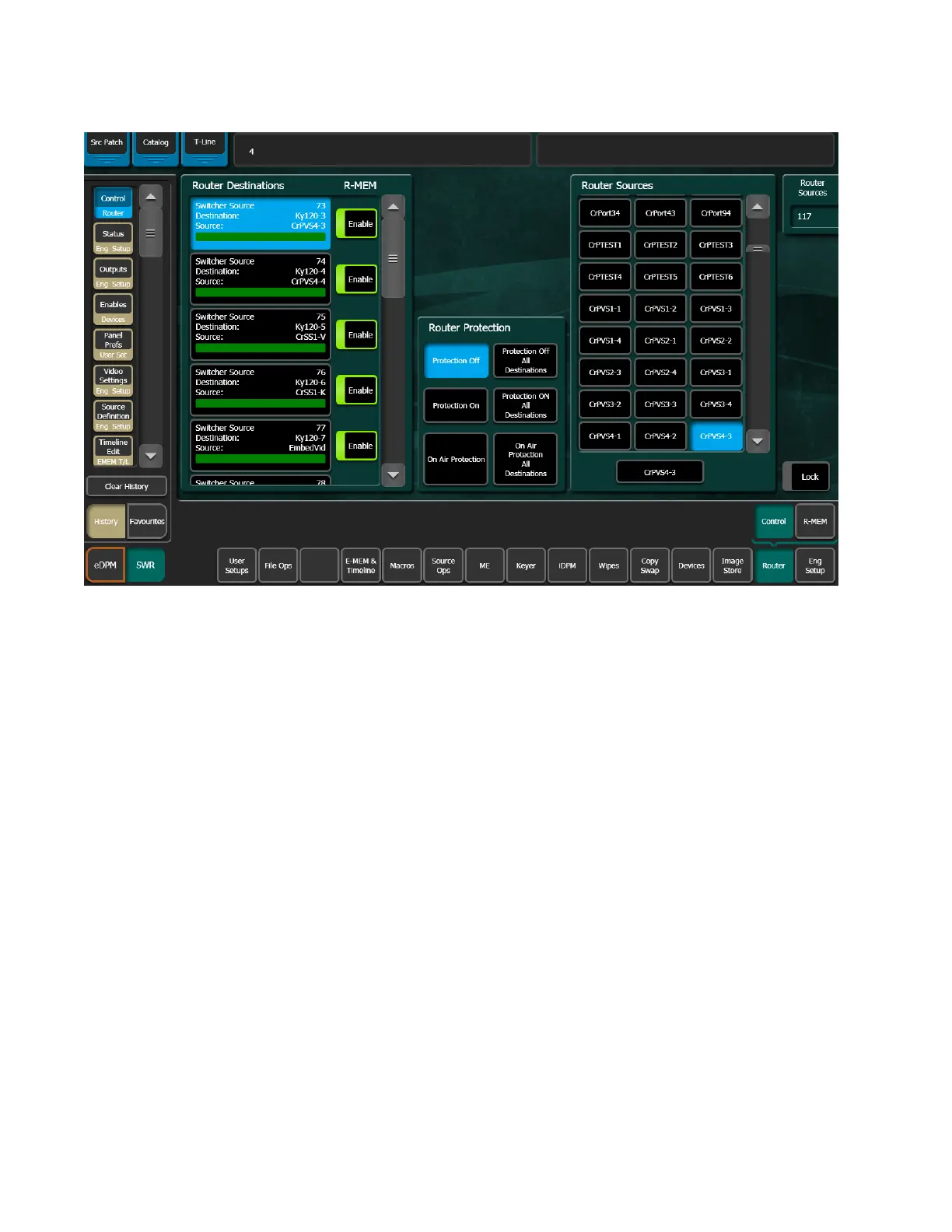

Figure 220. Router Control Menu
The Router Destination pane on the left is a scrolling list of switcher sources
(only sources configured as routed Kayenne sources appear). Each button
displays the Switcher Source ID number, Destination, and Source. The cur
-
rently selected switcher source on the list is colored light blue.
The Router Sources pane on the right is a scrolling list of all the available
router sources. Communication with an external routing system is required
before router sources will appear on this list. The router source button of
the currently selected switcher source is automatically selected.
To Change the Router Source of a Switcher Source:
1. Touch the desired switcher source button in the left pane. Its current
router source will appear selected in the right pane.
2. Touch a different router source button in the right pane, scrolling the
menu if necessary. The source change will be immediately enacted.
Router Source Keypad Selection
The Router Source data pad at the top of the right pane provides access to
router sources by name. Touching this data pad opens an alphanumeric
keypad, into which you can enter the name of the desired router source.
The Router Source list will then scroll to and select that router source,
