KAYENNE — User Manual 91
Control Panel Overview

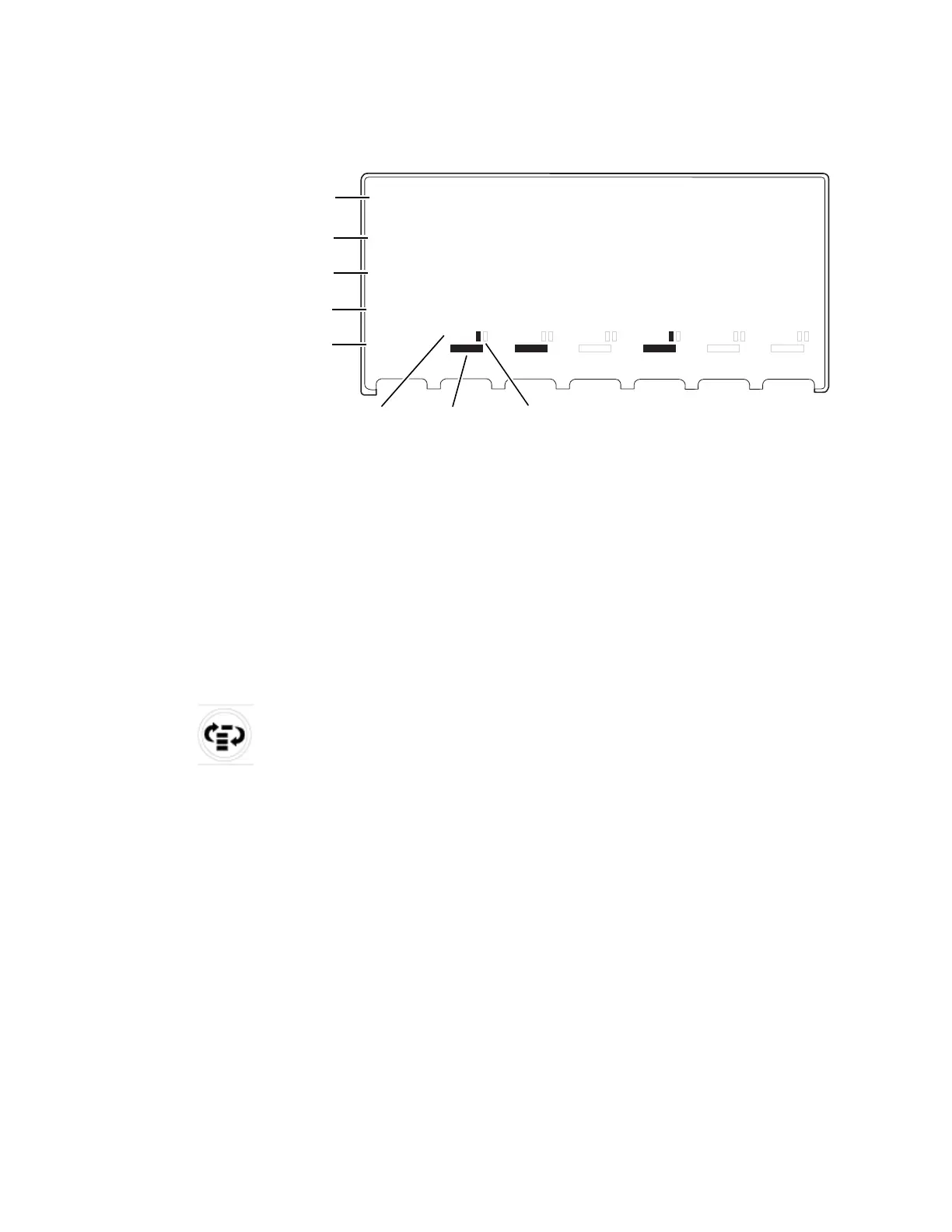

Figure 70. Transition Module Status Display Example
Additionally, when the Key Prior button (Keyer Priority) is pressed on the
Transition Module, Row 4 changes from displaying transition rates to
Keyer Priority for Keyers 1-6 and shows the differences between the current
and next priority stacks.
Function Buttons
The top button row, above the lever arm (Figure 69) provides the following
functions (from left to right):
Figure 71. Exchange ME Button Icon
Exchange ME (button icon, left)—Toggle button for fast exchange (tem-
porary delegation) of an ME not delegated to a Stripe (see Exchange
ME on page 108 for more information).
Pat Lim—Inactive.
EMEM Run—Runs an E-MEM from the Local or Master E-MEM Module.
• SPOP (single button push) of the EMEM Run button delegates the
lever arm to control the local E-MEM.
• DPOP (double button push) of the
EMEM Run button delegates the
lever arm to control the Master E-MEM timeline.
• Pressing the E-MEM Run button again, exits the mode.
•Trans Rate—Allows Auto and Key Mix 1-6 buttons having an associated
transition rate to be altered, set, or queried. Once the Trans Rate button
is selected, the associated buttons flash and the Local E-MEM Module
changes to Trans Rate Mode for input. Pressing one of the flashing
buttons indicates that its transition rate is to be set. While holding down
this button any of the other flashing buttons can be pressed for multiple
selection.
8623267_07
7 7
2 2
BLKBLK
BLKBLK
MIXMIX
BkgdBkgd
MIXMIX
10 10
ME1ME1
MIXMIX
10 10
17 17
MIXMIX
10 10
15 15
23 23
MIXMIX
10 10
12 12
MIXMIX
30 30
BLKBLK
MIXMIX
30 30
i
DPMDPM i
DPMDPM i
DPMDPM i
DPMDPM i
DPMDPMi
DPMDPM
Row 1: BKD A source (Green) and video
sources for relevant keyers (Yellow)
Row 2: BKD B source (Green) and key
sources for split keys (Yellow)
Row 3: Utility 1 source (Green) and keyer
transition types (Yellow)
Row 4: Utility 2 source (Green) and keyer
transition rates (Yellow)
Row 5: BKD transition type (Green), iDPM
keyer partition (Primary-White and
Secondary-Green), and keyer ON (Orange)
BKGD
Bus
Keyer 1
Keyer 2
Keyer 3 Keyer 4
Keyer 5 Keyer 6
i-DPM
Keyer
ON/OFF
Primary Partition (White)
Secondary Partition (Green)
ON/OFF
