OPERATION

115

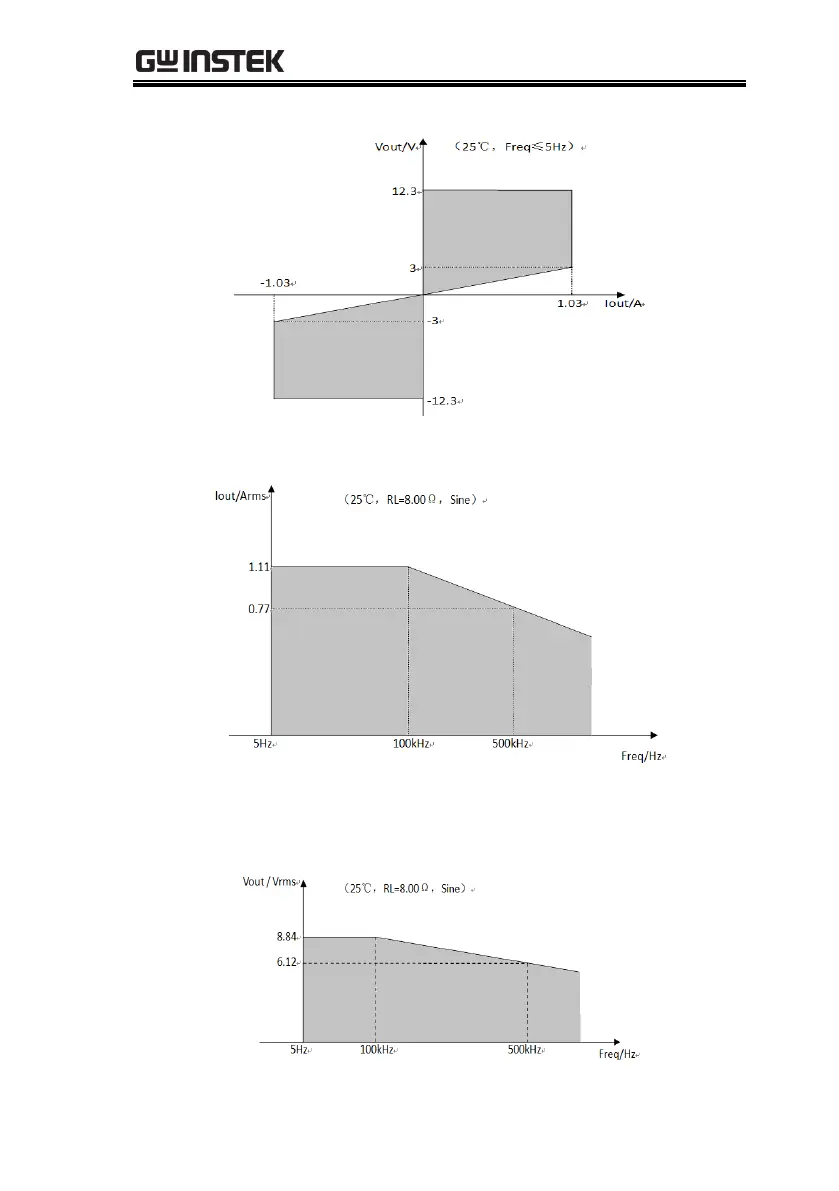

DC working area:

The relationship between the output current and the operating

frequency:

The relationship between the output voltage and the operating

frequency:
