I Communication interface
I.5 Inspiratory:Expiratory (I:E) timing outlet
The I:E timing outlet lets your HAMILTON-G5 send I:E timing
signals through the 15-pin (Special Interface) connector. This
is useful to administer nitric oxide (NO), or when using an
external nebulizer.
This application requires the hardware shown in Figure I-3.
The Connector Pin Assignment subsection below lists the pin
assignments for this connector. Before using the outlet, make
sure it is correctly configured (Figure I-3). The I:E timing capabil-
ity is based on a relay inside the ventilator.

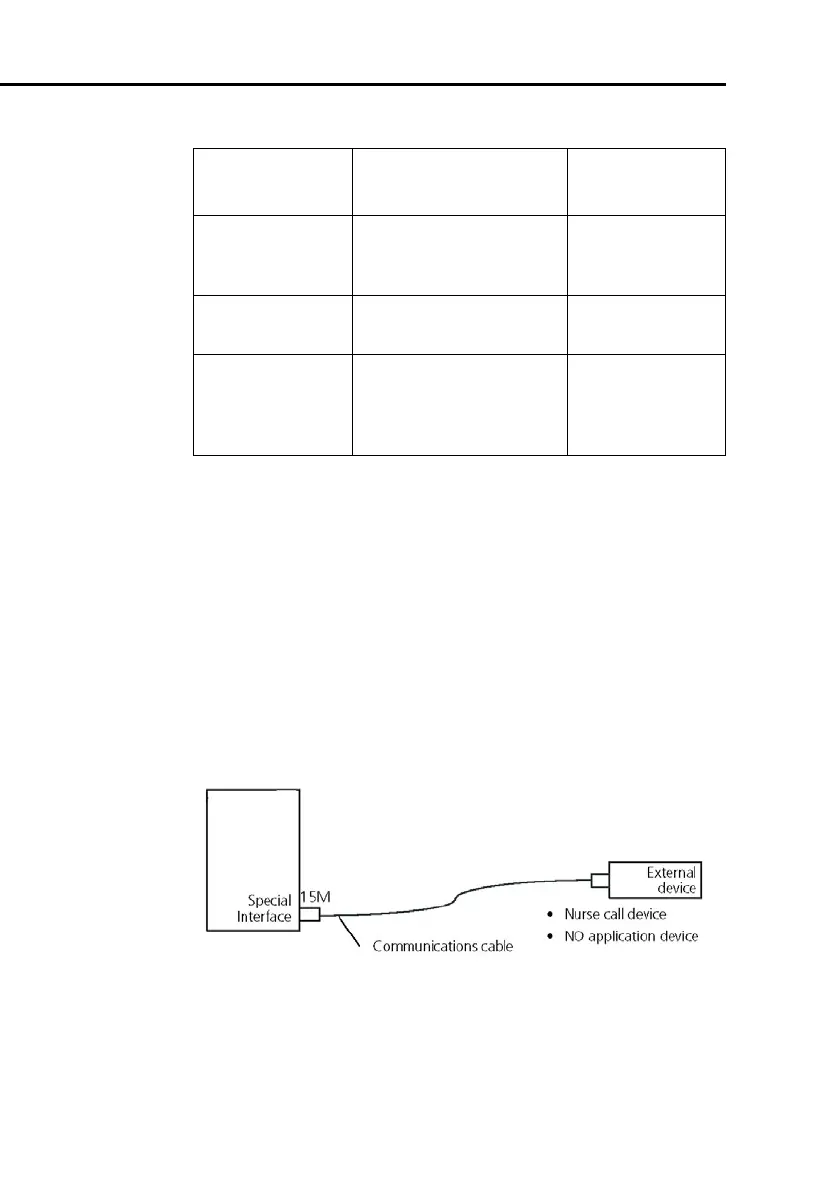

Figure I-3. HAMILTON-G5 connected to an external
device through the Special Interface connector
Table I-2. Requirements for interfacing PDMS’s
Manufacturer Interfacing hardware
required
Notes
Centricity® Criti-
cal Care Clinisoft
care station
Centricity Ethernetbox
and cables
Formerly known
as Datex-Ohm-
eda S/S CCIMS
Capsule Technol-
ogie PDMS
DataCaptor Device
Interfaces (DDIs)
RS-232 to XML,
HL7
iMDsoft® Meta-
Vision Clinical
Information
System
Consult iMDsoft repre-
sentative
--
