Measuring
Adapting to the transducer
144 A0534-30.0 HBM: public MGCplus

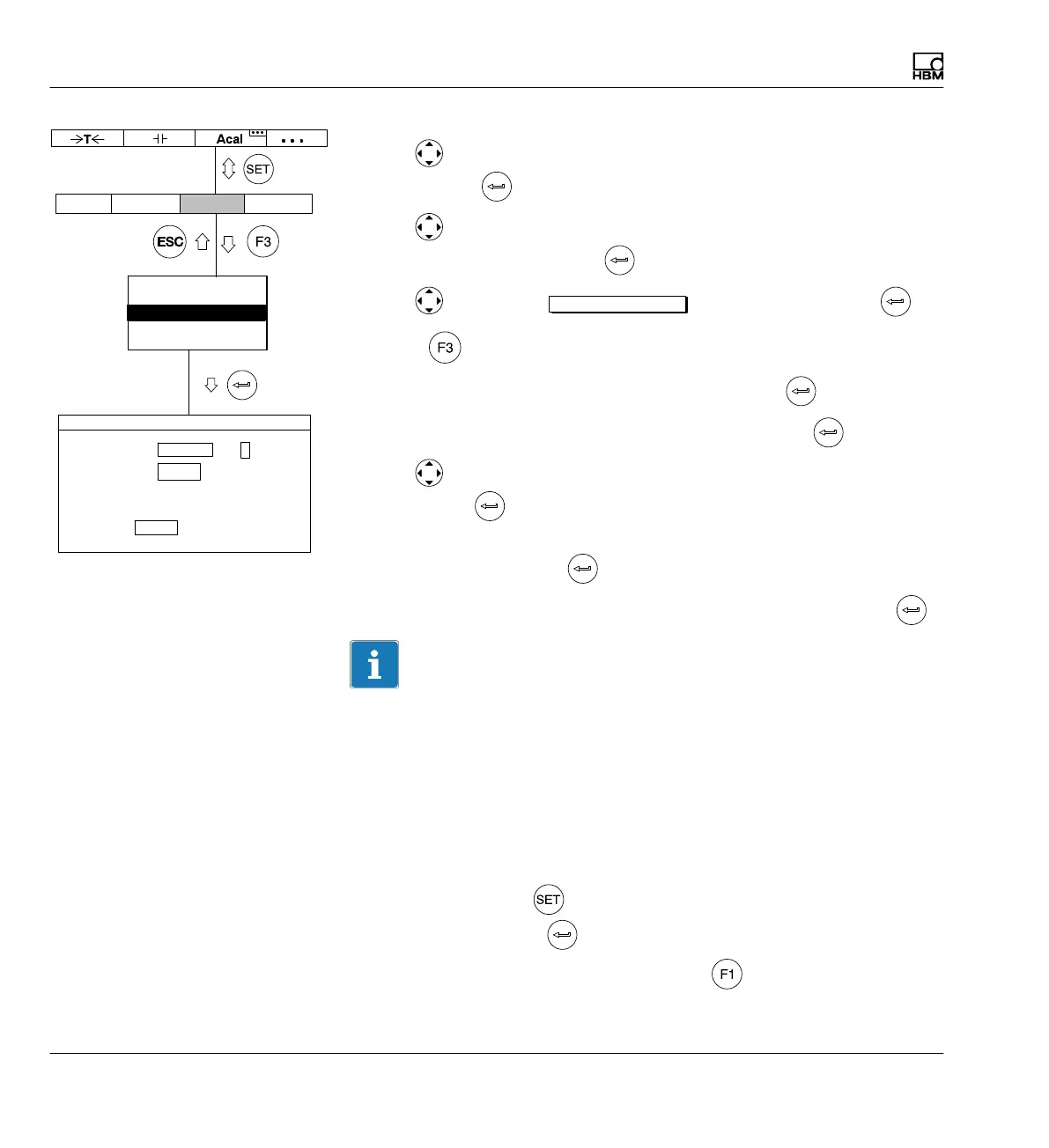

8. Use to switch to the right edit field Zero point and enter the value 0.
Confirm with
.
9. Use
to switch to the right edit field Nominal (rated) value and enter
the value 1000. Confirm with
.
10. Use
to select the
Adjust amplifier
button and confirm with .
11. Press
.
12. In the pull-up menu select Display and confirm with
.
13. In the Unit selection field select μm/m and confirm with
.
14. Use
to go to the Abs activation field and deactivate the absolute
display with
.
15. In the Decimal places edit field enter the desired number of decimal
places and confirm with
.
16. In the Step selection field select the desired step and confirm with
.
Information
The step refers to the last decimal place of the display value.
Example: Entry 1000.0 m/m
 Step 1 means display jumps every 100 m/m
 Step 5 means display jumps every 500 m/m
Entry 10.000 m/m
 Step 1 means display jumps every 1 m/m
 Step 5 means display jumps every 5 m/m
17. Use the Switch key
to go to measuring mode and confirm the con
firmation prompt with
.
18. Perform a zero balance in unloaded state (
function key in the fac
tory settings).
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
Unit Abs
Decimal places
Display range from
to
Step
DISPLAY CHANNEL1
1
1000.000 m/m
−1000.000 m/m
1 ...
m/m 
