HBM MGCplus - Thermocouples

Connection
Thermocouples
62 A0534-30.0 HBM: public MGCplus

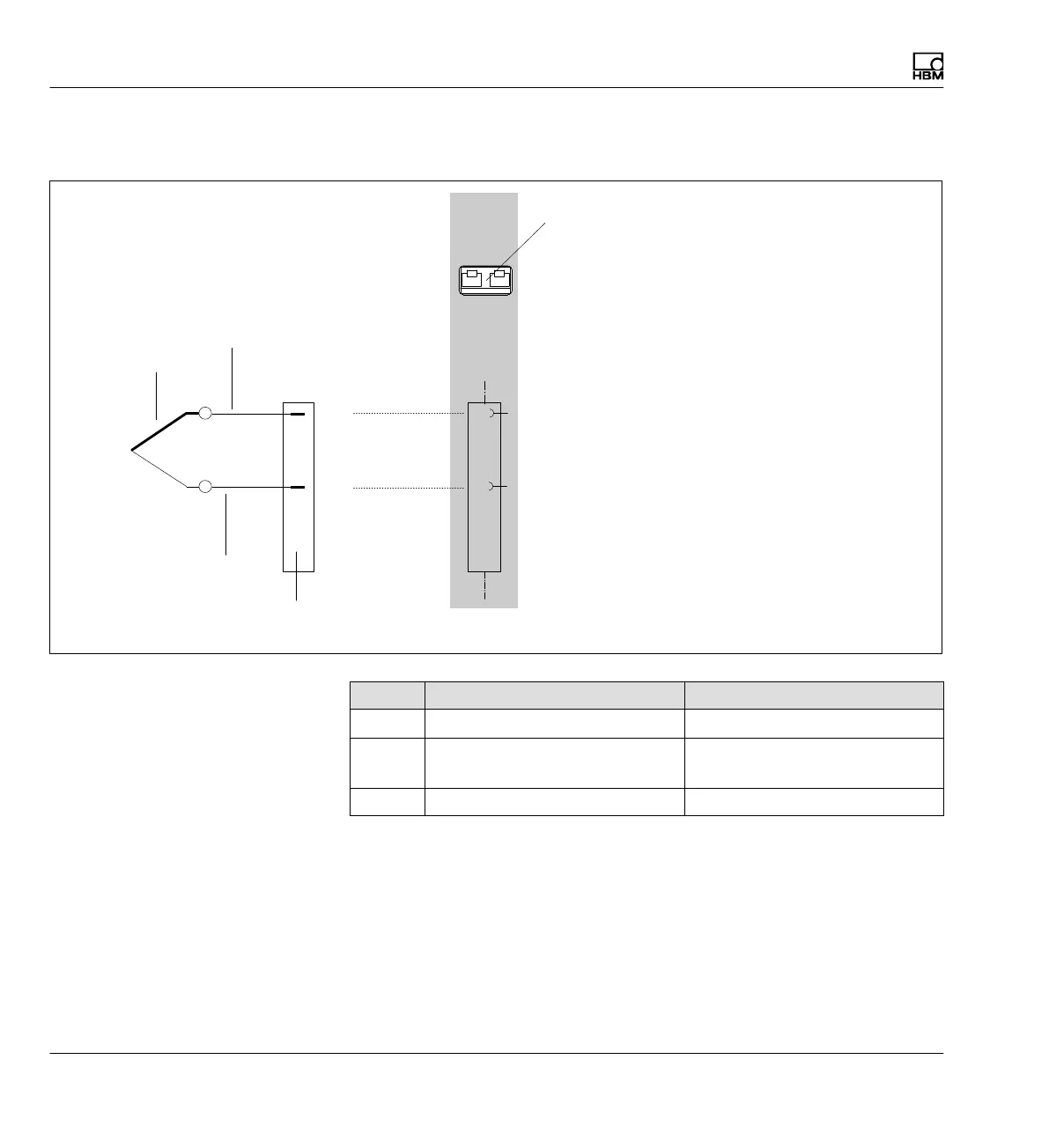

4.3.12 Thermocouples
(+)
(-)
Compensating
line
Compensating
line
Thermocouple
−
+
AP809
+
-
Miniature thermo connector (see
table for matching type)
Miniature thermo connector, uncompensated
Type Thermal material 1 (+) Thermal material 2 (-)
J Iron Copper-nickel
K Nickel‐chrome (color code
green)
Nickel‐aluminum (color code
white)
T Copper Copper-nickel
