HBM MGCplus - Rotational Speed Measurement (Symmetrical Signals)

Connection
Torque flange T10 series, T40 series
MGCplus A0534-30.0 HBM: public 55

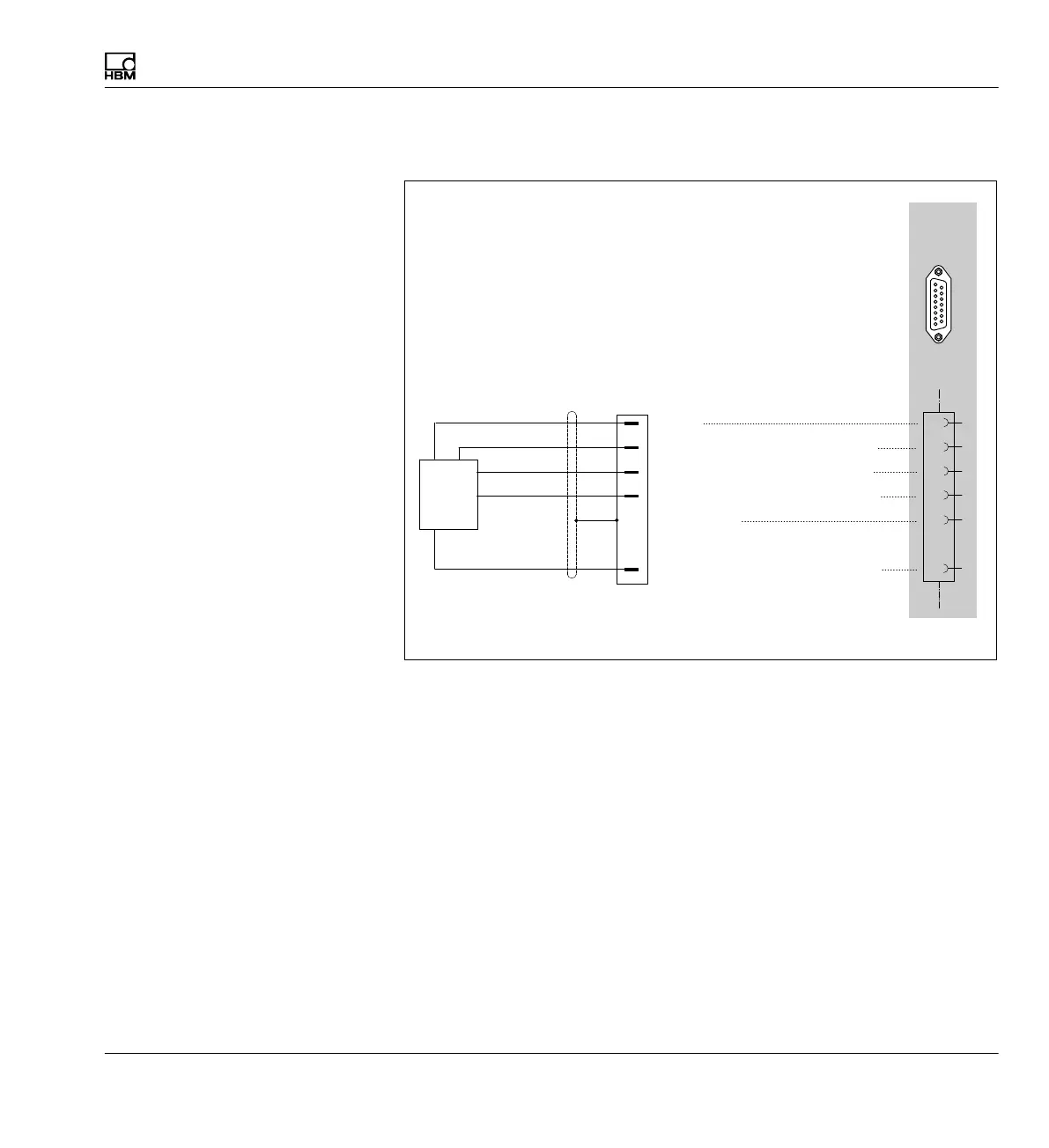

4.3.10.2 Rotational speed measurement (symmetrical signals)
Rotational speed measurement signal, 0 (+)
Ground
Plug 2
n
Cable shield
Cable color code: wh= white; bk= black; bu= blue; rd= red; ye= yellow; gn= green; gy= gray
8
12
13
14
15
AP17
1
8
9
15
Hsg.
81
3
6
7
bk
and
bu
rd
gn
wh
g
y
Rotational speed measurement signal, 0 (-)
Rotational speed measurement signal, 90 (-)
Rotational speed measurement signal, 90 (+)
