9.2 F keys
9.2.1 F keys in measuring mode
Function keys F1...F4 are active both in measuring mode and in Setup
mode.
You can switch a total of 9 functions on three levels in measuring mode:
Level 1
S F1 Zero balance
S F2 Tare
S F3 Delete peak-value memory
Level 2
S F1 Autocalibration
S F2 TEDS (read transducer data)
S F3 Switch unit (
è see also page 131)
Level 3
S F1 Remote control on/off
S F2 limit value level
S F3 Start/Stop
The keys can be freely assigned by the user. The assignment given above
corresponds to the factory settings. In the factory settings the F4 key
switches to the next level (...F level).
You can extend the effect of the functions to all channels or limit it to one
channel (the one selected).
The current key assignment appears in the bottom line of the display in
measuring mode for all image types. If you have determined the function for
all the channels, this is indicated by the
. . .
symbol in top right corner of
the F keypad.
. . .

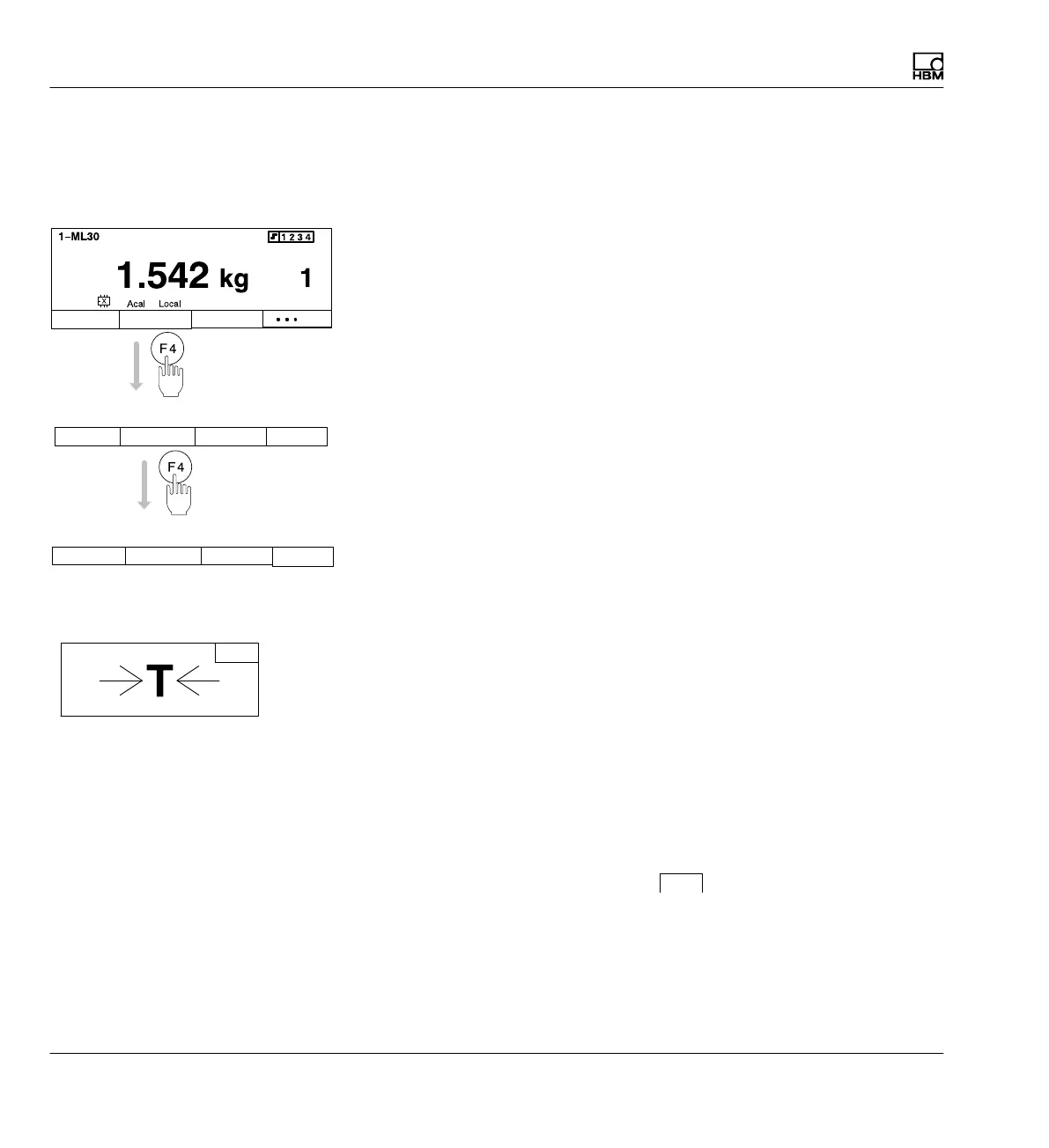

F keypad
F keys level 1
TEDS Unit . . .
Rem/Loc Limit val. Start/Stop
. . .
F keys level 2
F keys level 3
Acal
−> 0 <− −> T <−
−II−
Gross
Channel
Measure
To Next Page
