Measuring
Adapting to the transducer
MGCplus A0534-30.0 HBM: public 167

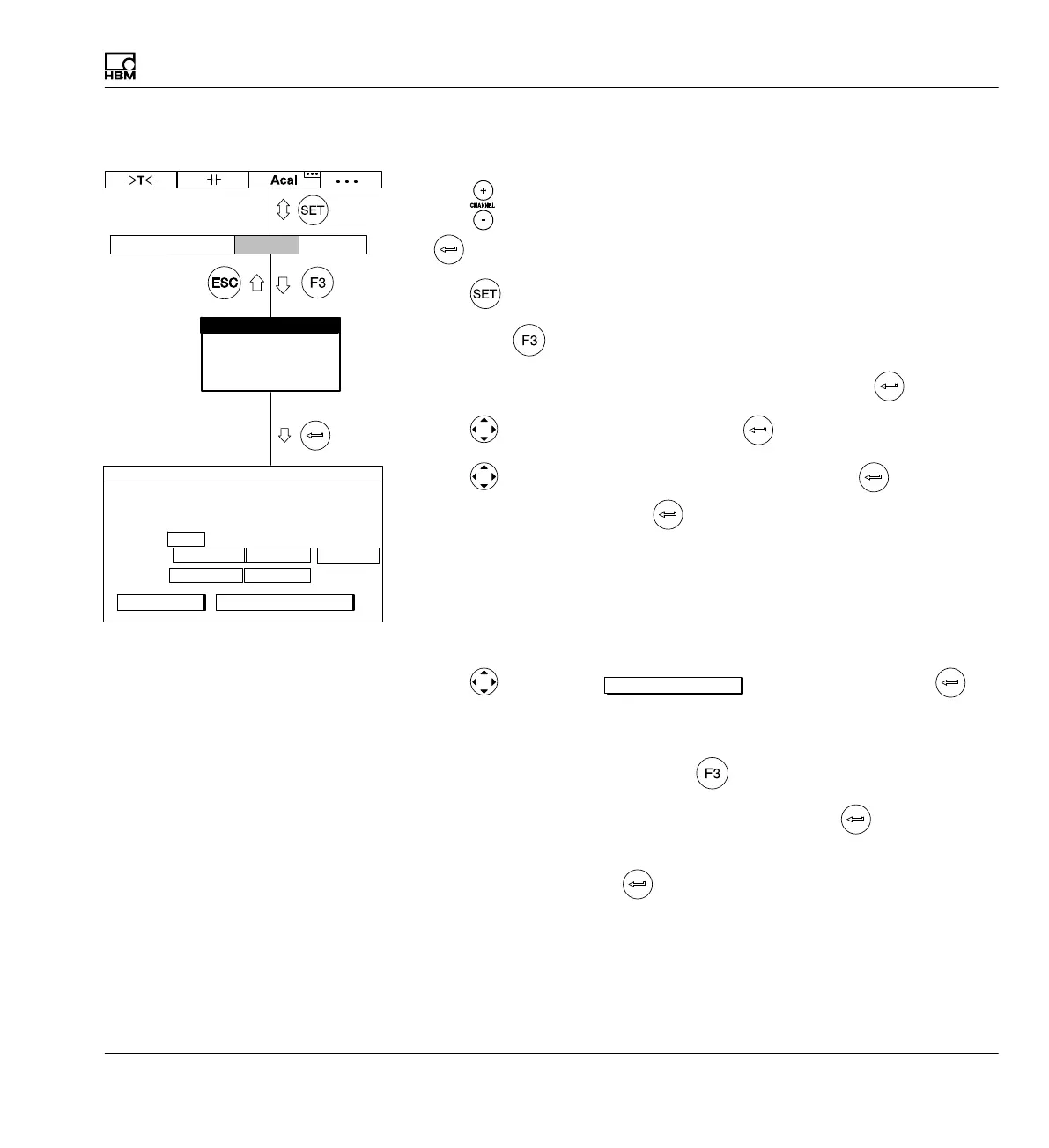

7.3.8.1 Direct entry of transducer characteristics
1. Use
or a direct entry to choose the desired channel (for example 3.2
).
2. Use
to switch to Setup mode.
3. Press the
function key.
4. In the pull-up menu select Transducer and confirm with
.
5. Use
to select 10V and confirm with .
6. Use
to switch to the Unit selection field and press . Select Nm
as the unit and confirm with
.
7. In the left edit field Zero point enter the value 0.
8. In the right edit field Zero point enter the value 0.
9. In the left edit field Nominal (rated) value enter the value 20.
10. In the right edit field Nominal (rated) value enter the value 3.
11. Use
to select the
Adjust amplifier
button and confirm with . If
you do not want to make any more changes to the display, you can now
continue with step 16.
12. Go back to the pull-up menu with
.
13. In the pull-up menu select Display and confirm with
.
14. In the Decimal places edit field enter the desired number of decimal
places and confirm with
.
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
3.0000 ...
Type 10V
Current feed None
Unit: V
i
Zero pt.:
Nom. val.:
TRANSDUCER CHANNEL1
Nm
0.00000 ... 0.0000 ...
20.0000 ...
calibrate...calibrate... Adjust amplifier
measure
