HBM MGCplus - Resistors

Measuring
Adapting to the transducer
172 A0534-30.0 HBM: public MGCplus
7.3.10 Resistors
Resistors are passive transducers. For these transducers you will need the
ML801B amplifier module with AP835, which will provide you with a coarse
measuring range (0...500 Ω.
The settings are explained with the following example:
Resistance value 400 ΩDisplay full scale 400.00 Ω

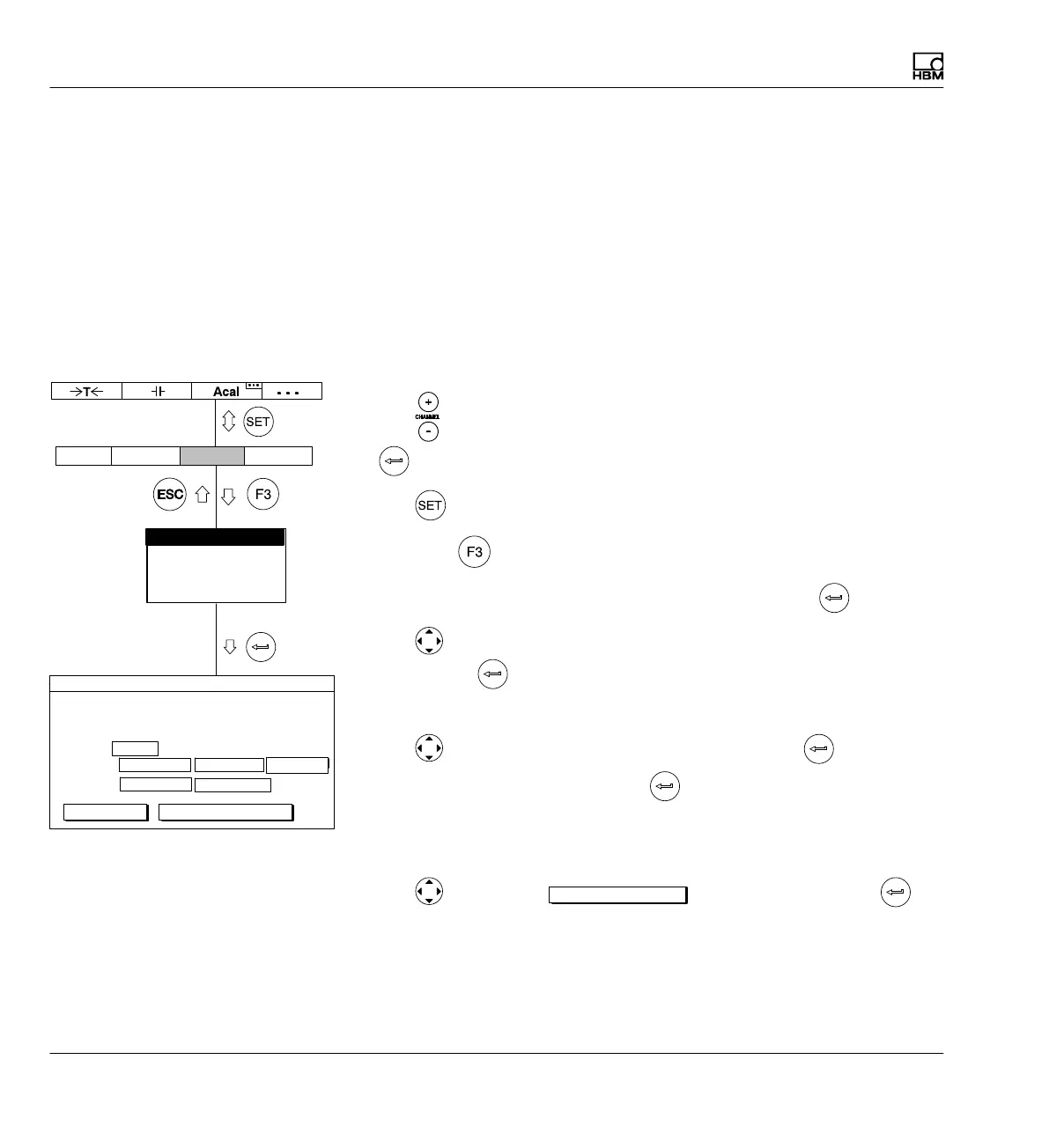

7.3.10.1 Direct entry of transducer characteristics
1. Use
or a direct entry to choose the desired channel (for example 3.2
).
2. Use
to switch to Setup mode.
3. Press the
function key.
4. In the pull-up menu select Transducer and confirm with
.
5. Use
to select 500ohms (this is the input range of the amplifier) and
confirm with
.
6. In the Connector selection field choose the desired connection type.
1)
7. Use to switch to the Unit selection field and press . Select
ohms as the unit and confirm with
.
8. In both the Zero point edit fields enter the value 0.
9. In the left edit field Nominal (rated) value enter the value 400.
10. Use
to select the
Adjust amplifier
button and confirm with . If
you do not want to make any more changes to the display, you can now
continue with step 15.
1)
With 4‐wire configuration the cable resistance is compensated up to a length of 500m.
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
400.0000 ...
Type: 500 ohms
Connection: 4−wire
Unit: ohms
Zero pt.:
Nom. val.:
TRANSDUCER CHANNEL1
ohms
0.00000 ... 0.00000 ...
400.0000 ...
calibrate... Adjust amplifier
measure
