HBM MGCplus - Control of Peak-Value Memory

Additional functions
Set peak values
MGCplus A0534-30.0 HBM: public 205
8.4.3 Control of peak-value memory
Three remote control contacts affect peak-value memory:
CPV: is used to clear peak-value memory
HLD: freezes the current value of memory or releases it again
INT: starts and stops integration over a certain time interval
You can implement other functions with these remote control elements, for
example instantaneous value memory.

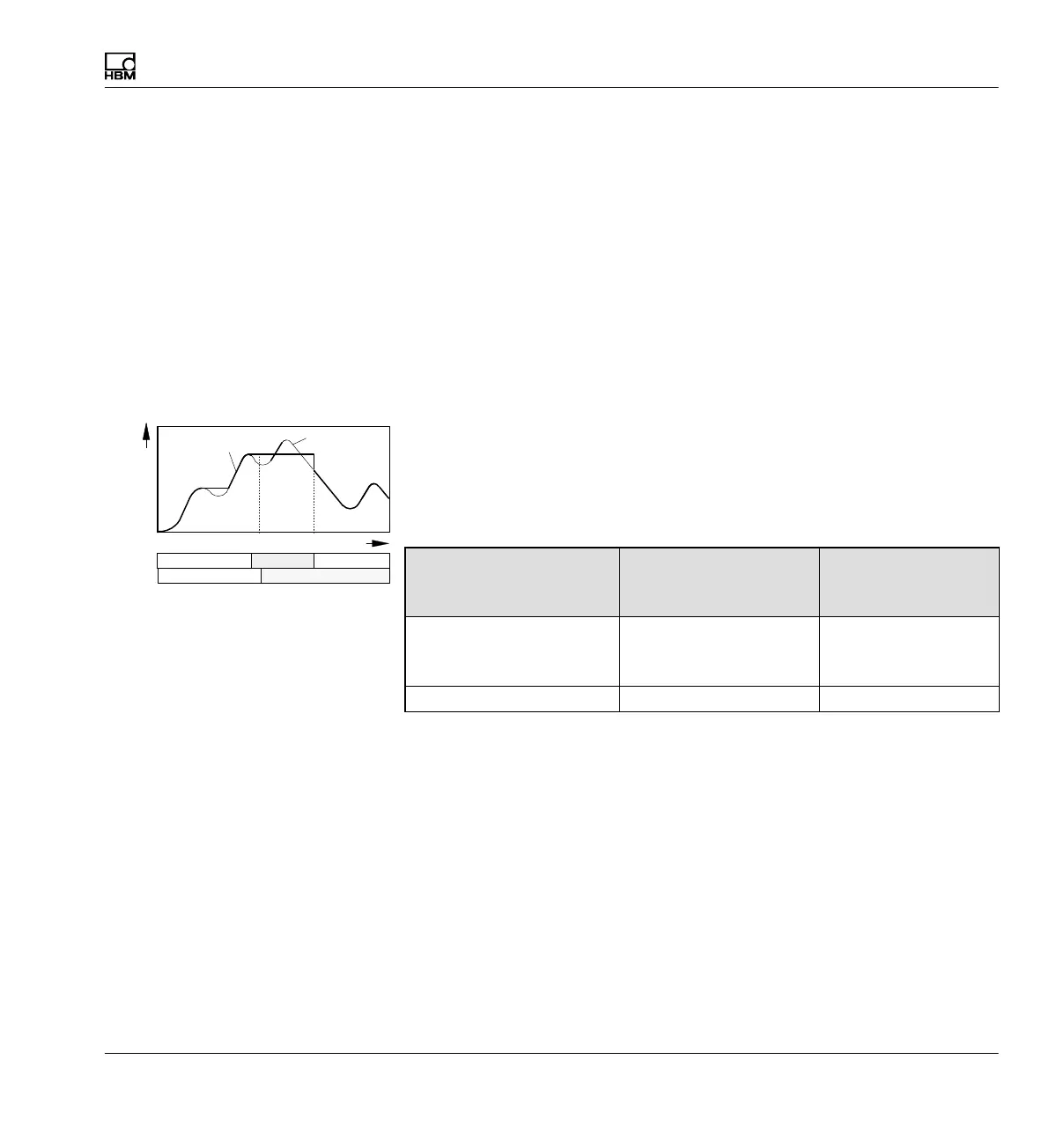

8.4.4 "Peak value" operating mode
In the Peak value operating mode you can save the minimum value, the
maximum value or the peak-to-peak value (Run function). Use the Hold
function to hold the contents of memory.
For all connection boards
Function
Control circuit CPV
Peak/instantaneous
value
Control circuit
HLD
Run/Hold
Peak value:
Memory also runs in the
selected direction
5V 5V
Freeze value Any 0V
Measurement
signal
Output
t
V
i
, V
o
HoldRun Run
Function
Operating
mode
Peak value
Instantaneous value
