4.5 Inputs and outputs, remote controls
4.5.1 Inputs/outputs of the CP52

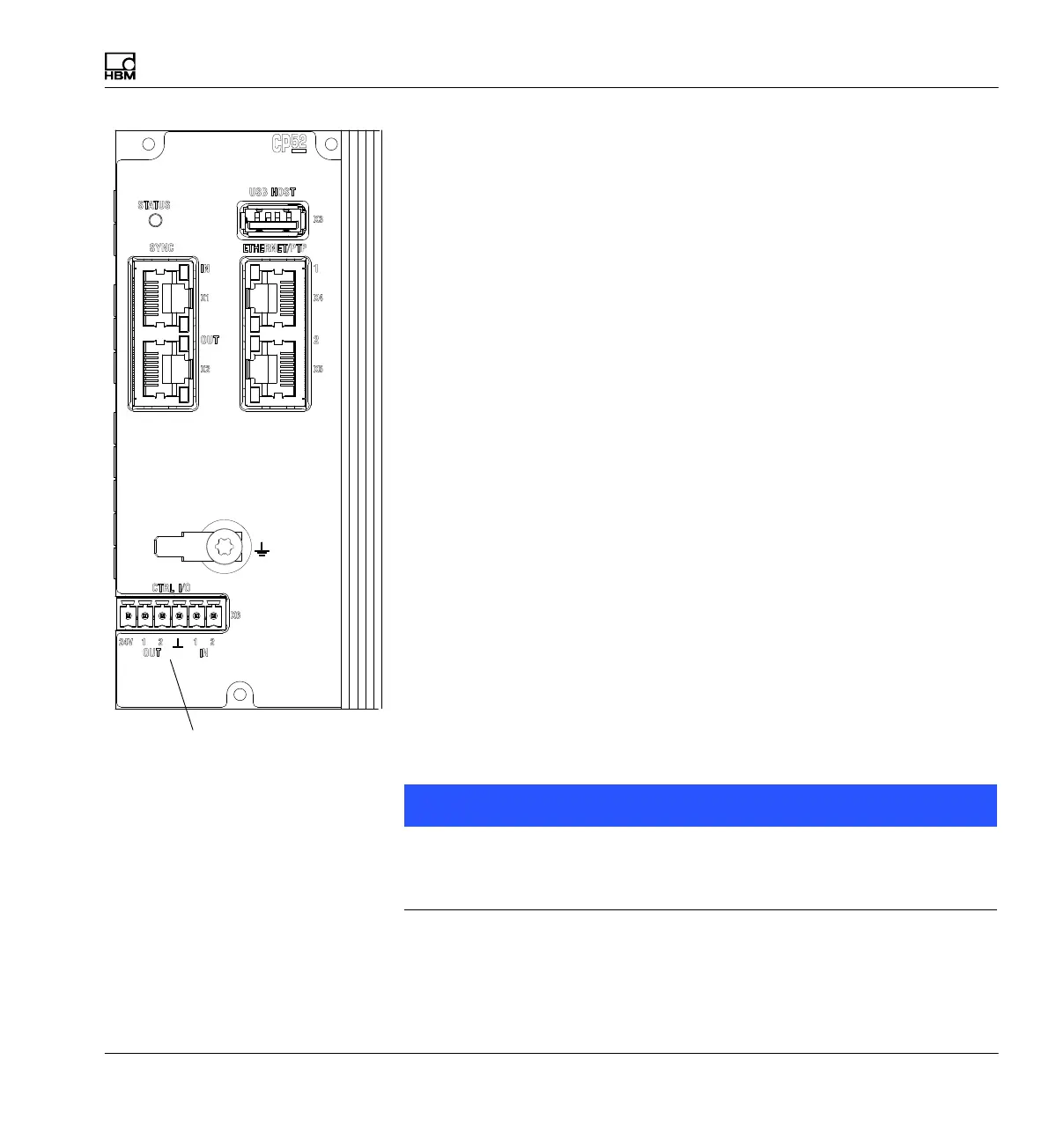

The CP52 communication processor has two digital inputs and outputs
each. The digital inputs and outputs must be operated with an external cur
rent feed (12 V ... 24 V).
Inputs (0 V ... 24 V)
You can assign the following functions to the digital inputs:
S Start to record measured data with an external trigger
The status of the inputs and outputs can also be queried with the MGCplus
terminal commands.
Outputs (0 V ... 24 V)
The following functions are assigned to the digital outputs:
S Disk is full
If the remaining storage space of the USB mass storage medium in the
CP52 is 1 Mbyte, the output is set to logical High. The status can be
changed using the MGCplus terminal commands.
S System is up and running
When the initialization is completed and measured values are acquired, the
output is set to logical High.
Notice
Functions can only be assigned to the digital inputs and outputs of the CP52
communication processor by using the MGCplus Assistant software from
HBM.
