Connection
Inputs and outputs, remote controls
MGCplus A0534-30.0 HBM: public 87

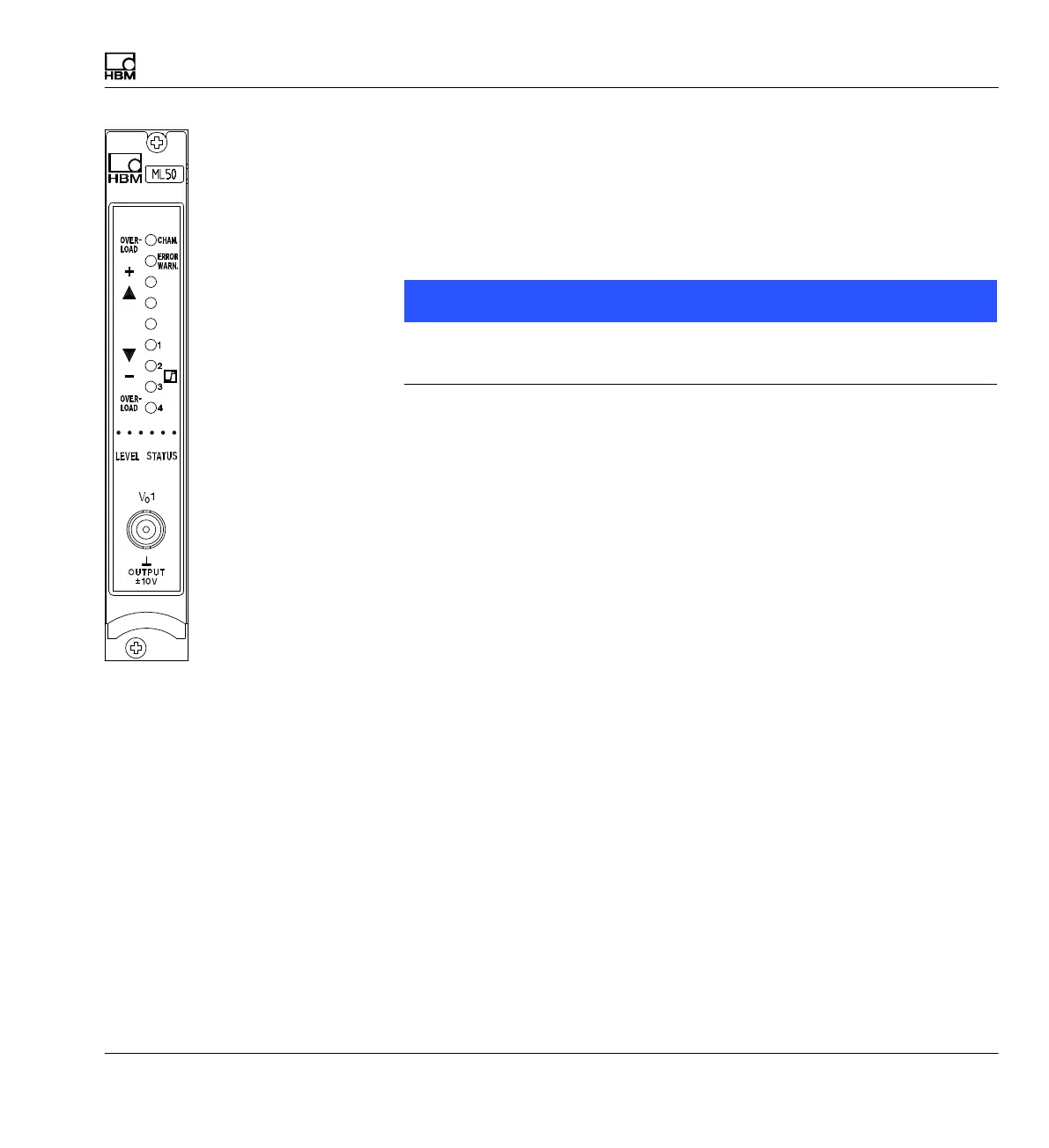

4.5.2 Analog output on the front panel
On the front panel of a single-channel module there is a BNC socket for the
analog output signal V
O1
. (This socket is used for test purposes. Stationary
wiring should always be done with the connection boards, since there is no
noise voltage with this method).
Notice
Please note: The input resistance of the connected device must be greater
than 1MΩ.
When connecting a coaxial cable to the analog output of the ML60B ampli
fier module, a ferrite (available from Würth, art. no. 742 711 72, or similar)
must be placed on the cable for operation in environments of limit value
class B in accordance with EN55011 and EN55022 (residential applications,
business and commercial applications as well as small businesses).
4.5.3 Connection boards AP01i/AP03i/AP14/AP17
In addition to the transducer connection, the connection boards also provide
several output and control signals, depending on the option selected.
They are explained in greater detail in the following sections.
