7.3.4.1 Direct entry of torque characteristics
The following example explains the operating steps for adjusting the torque,
rotational speed and power channel. Explanation of the extended functions
can be found on
è page 158.
Nominal (rated) torque of the shaft: 50Nm
Nominal (rated) sensitivity: 5kHz
Calibration value: 24.22Nm
Nominal (rated) torque: 3000rpm
Rotational speed range to be displayed
for the application: 2000rpm
Display range for power: 10kW

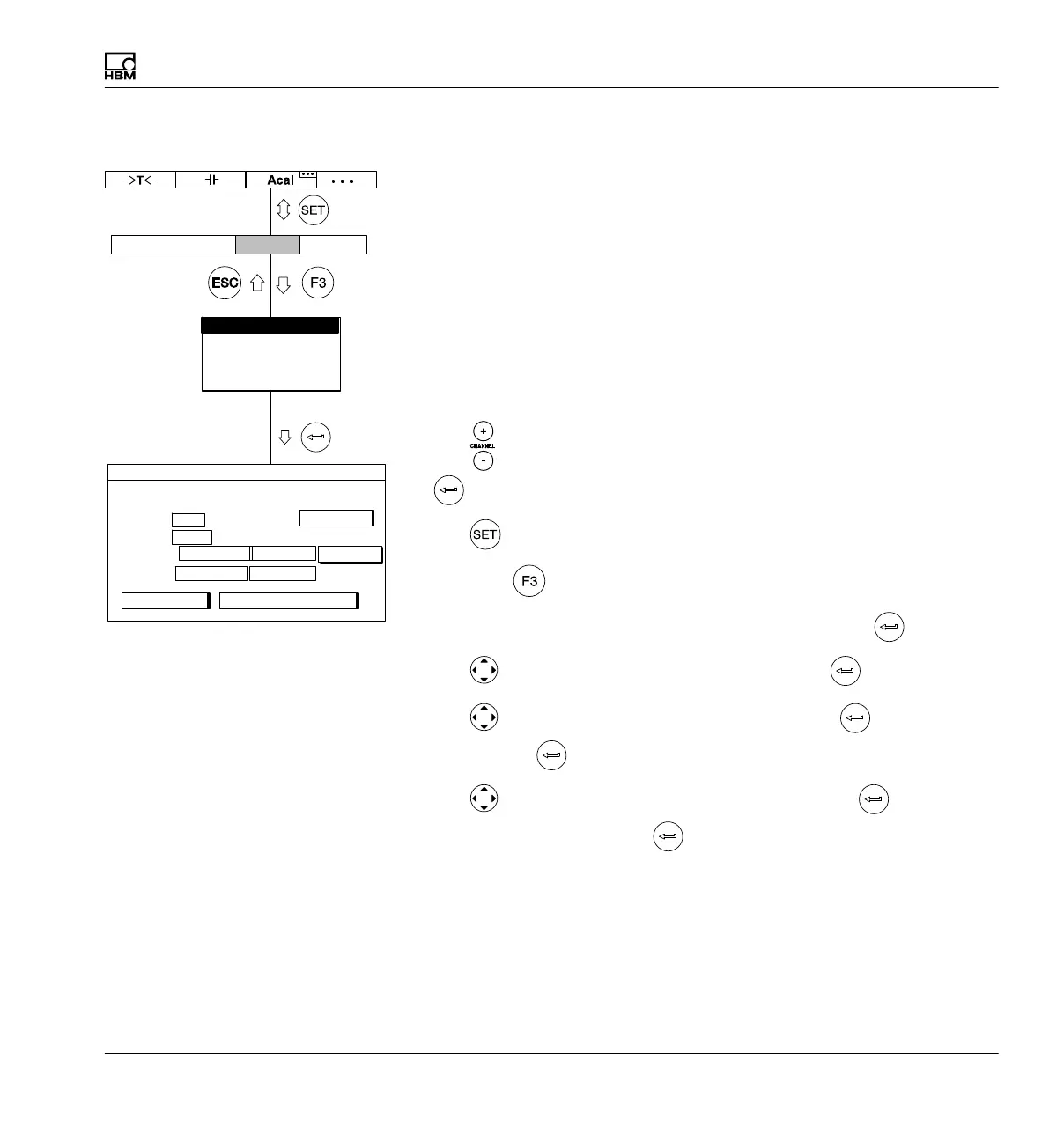

1. Use
or a direct entry to choose the desired channel (for example 1
).
2. Use
to switch to Setup mode.
3. Press the
function key.
4. In the pull-up menu select Transducer and confirm with
.
5. Use
to select Freq.0...20kHz and confirm with .
6. Use
to switch to the Level selection field, press and select 5V.
Confirm with
.
7. Use
to switch to the Unit selection field and press . Select NVm
as the unit and confirm with
.
Type: Freq.0..20kHz
Level:
Unit: kHz
Zero pt.:
Nom. val.:
Ext.fct...
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
5.0000 ...
TRANSDUCER CHANNEL1
Nm 
0.0000 ... 10.0000 ...
50.0000 ...
calibrate... Adjust amplifier
5V
measure
