Measuring
Adapting to the transducer
154 A0534-30.0 HBM: public MGCplus

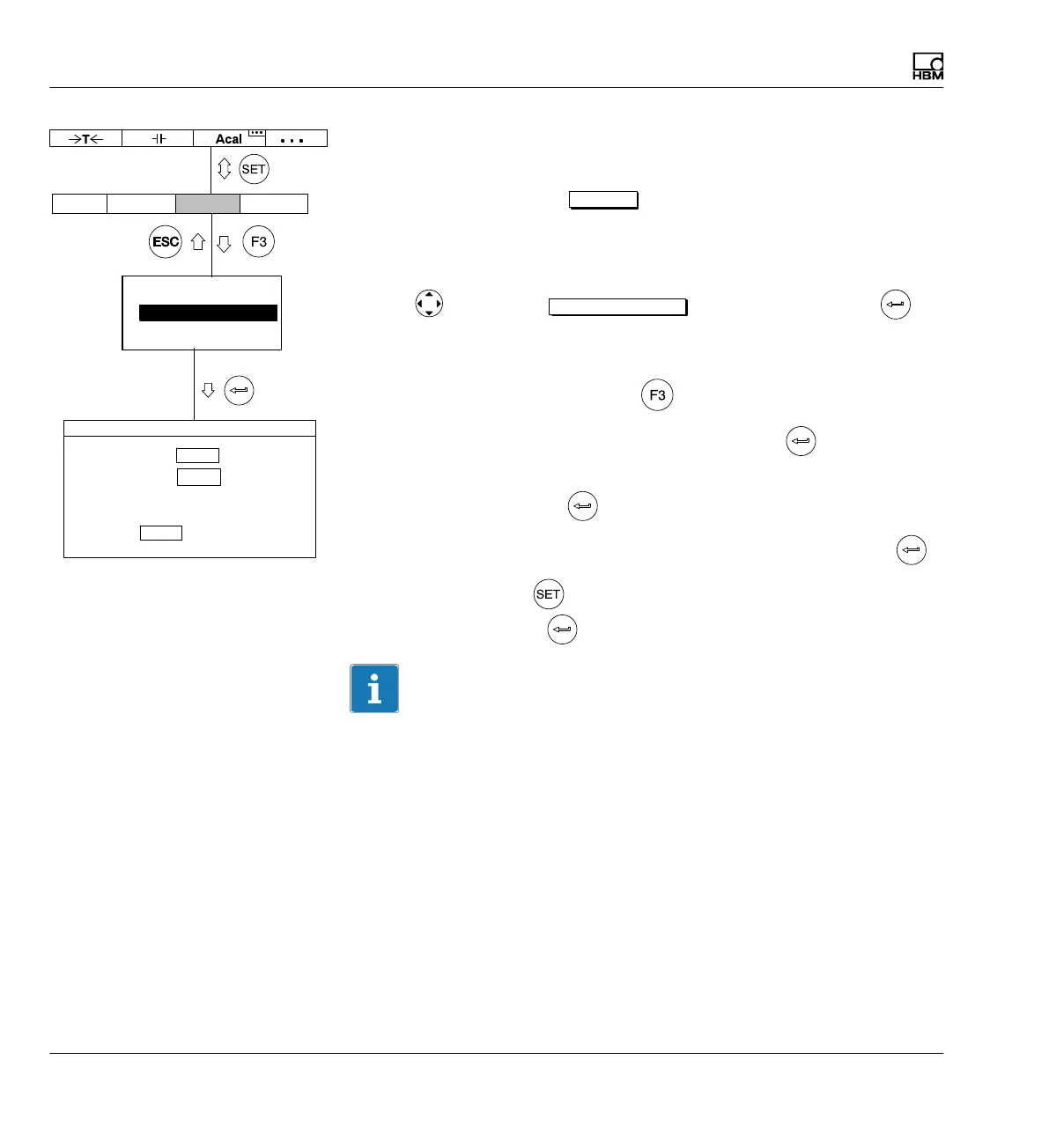

8. In the left edit field Zero point enter the value 0.
9. In the right edit field Zero point enter the value 10 (or if the transducer
is unloaded activate the
measure
button).
10. In the left edit field Nominal (rated) value enter the value 50.
11. In the right edit field Nominal (rated) value enter the value 5.
12. Use to select the
Adjust amplifier
button and confirm with . If
you do not want to make any more changes to the display, you can now
continue with step 17.
13. Go back to the pull-up menu with
.
14. In the pull-up menu select Display and confirm with
.
15. In the Decimal places edit field enter the desired number of decimal
places and confirm with
.
16. In the Step selection field select the desired step and confirm with
.
17. Use the Switch key
to go to measuring mode and confirm the con
firmation prompt with
.
Information
The step refers to the last decimal place of the display value.
Example:
Entry 50.0 Nm
 Step 1 means display jumps every 0.1Nm
 Step 5 means display jumps every 0.5Nm
Entry 50.000 Nm
 Step 1 means display jumps every 0.001Nm
 Step 5 means display jumps every 0.005Nm
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
Unit
Decimal places
Display range from
to
Step
DISPLAY CHANNEL 1
1
50.000 Nm
−50.000 Nm
3 ...
Nm 
