Measuring
Adapting to the transducer
170 A0534-30.0 HBM: public MGCplus

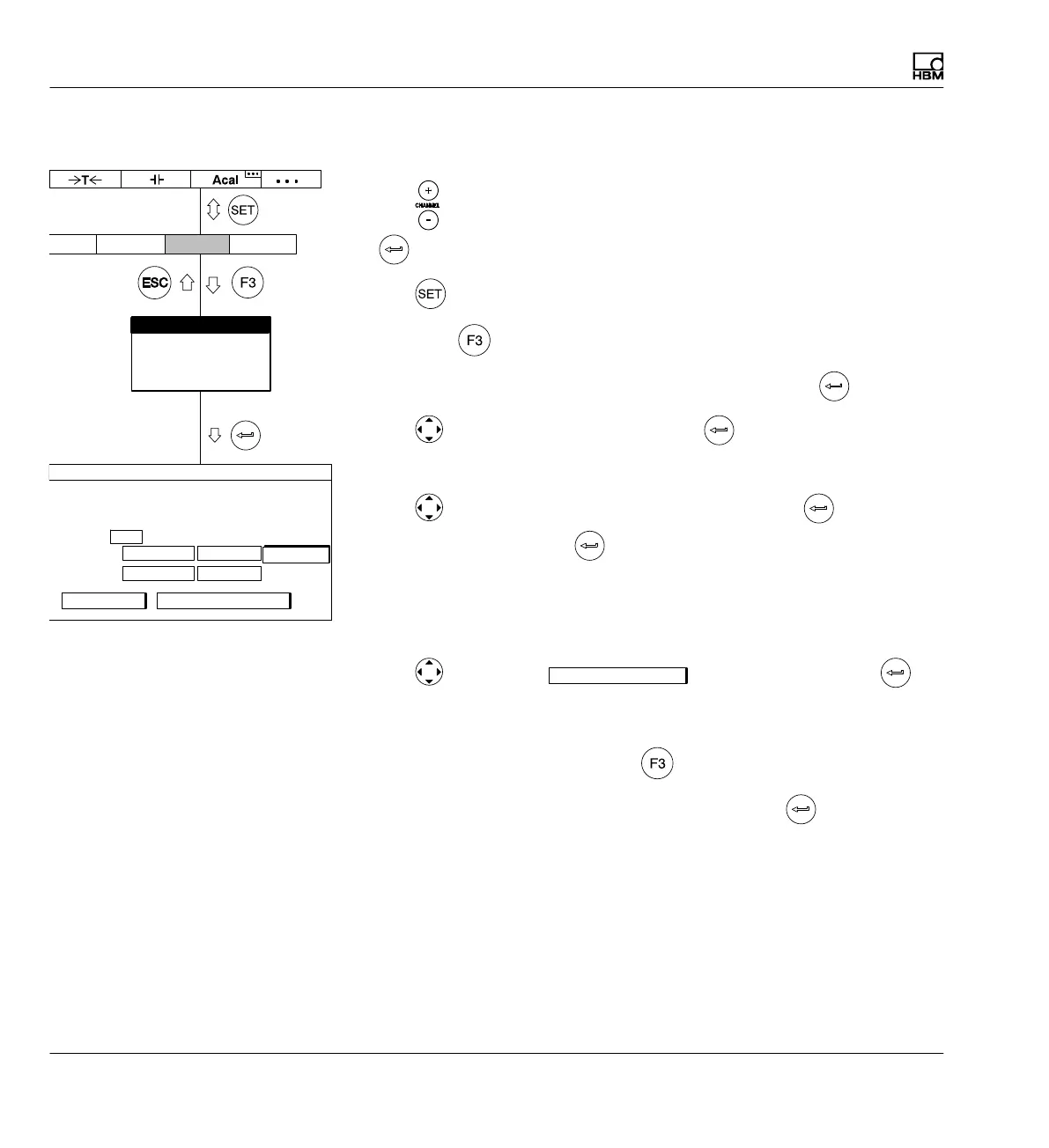

7.3.9.1 Direct entry of transducer characteristics
1. Use
or a direct entry to choose the desired channel (for example 3.2
).
2. Use
to switch to Setup mode.
3. Press the
function key.
4. In the pull-up menu select Transducer and confirm with
.
5. Use
to select Pt100 and confirm with .
6. In the Connector selection field choose the desired connection type.
1)
7. Use to switch to the Unit selection field and press . Select °C as
the unit and confirm with
.
8. In the left edit field Zero point enter the value 50.
9. In the left edit field Nominal (rated) value enter the value 20
(70°C-50°C=20°C).
10. Use
to select the
Adjust amplifier
button and confirm with . If
you do not want to make any more changes to the display, you can now
continue with step 15.
11. Go back to the pull-up menu with
.
12. In the pull-up menu select Display and confirm with
.
1)
With 4‐wire configuration the cable resistance is compensated up to a length of 500m.
Amplifier
System
Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
20.0000 ...
Type: Pt100
Connection: 4−wire
Unit: C
Zero pt.:
Nom. val.:
TRANSDUCER CHANNEL1
C
50.0000 ... 50.0000 ...
20.0000 ...
calibrate... Adjust amplifier
measure
