8.4.2 Combining peak-value memories
Combining peak-value memories
Subtraction
PV1 - PV2 (used as peak-to-peak).
F
t
PV1
PV2
Maximum, gross
Minimum, gross
Peak-to-peak value
Signal curve

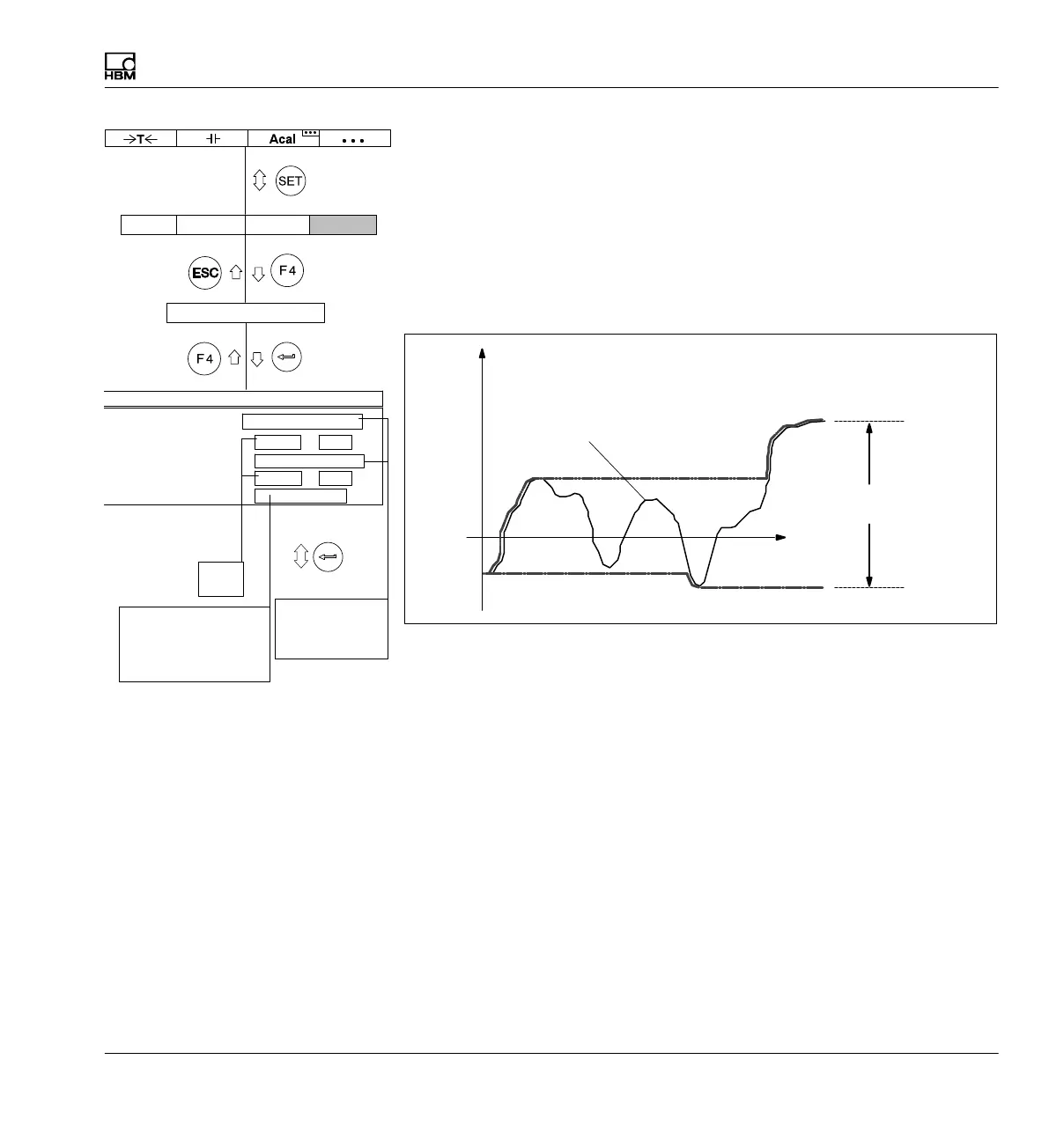

Fig. 8.3 Combining peak values with subtraction
Memory 1 Function
Memory 1 Envelope curve
Memory 2 Function
Memory 2 Envelope curve
PV 12-combination
Maximum gross 
Off  0 ...
ms
ms
0 ...Off 
Maximum gross 
−−−
Peak-value memory Channel 1
Off
On
Maximum gross
Maximum net
Minimum gross
Minimum net
Peak-value memory
---
Difference PV1,PV2
Mean value
Integrate gross
Integrate net
AmplifierSystem OptionsDisplay
