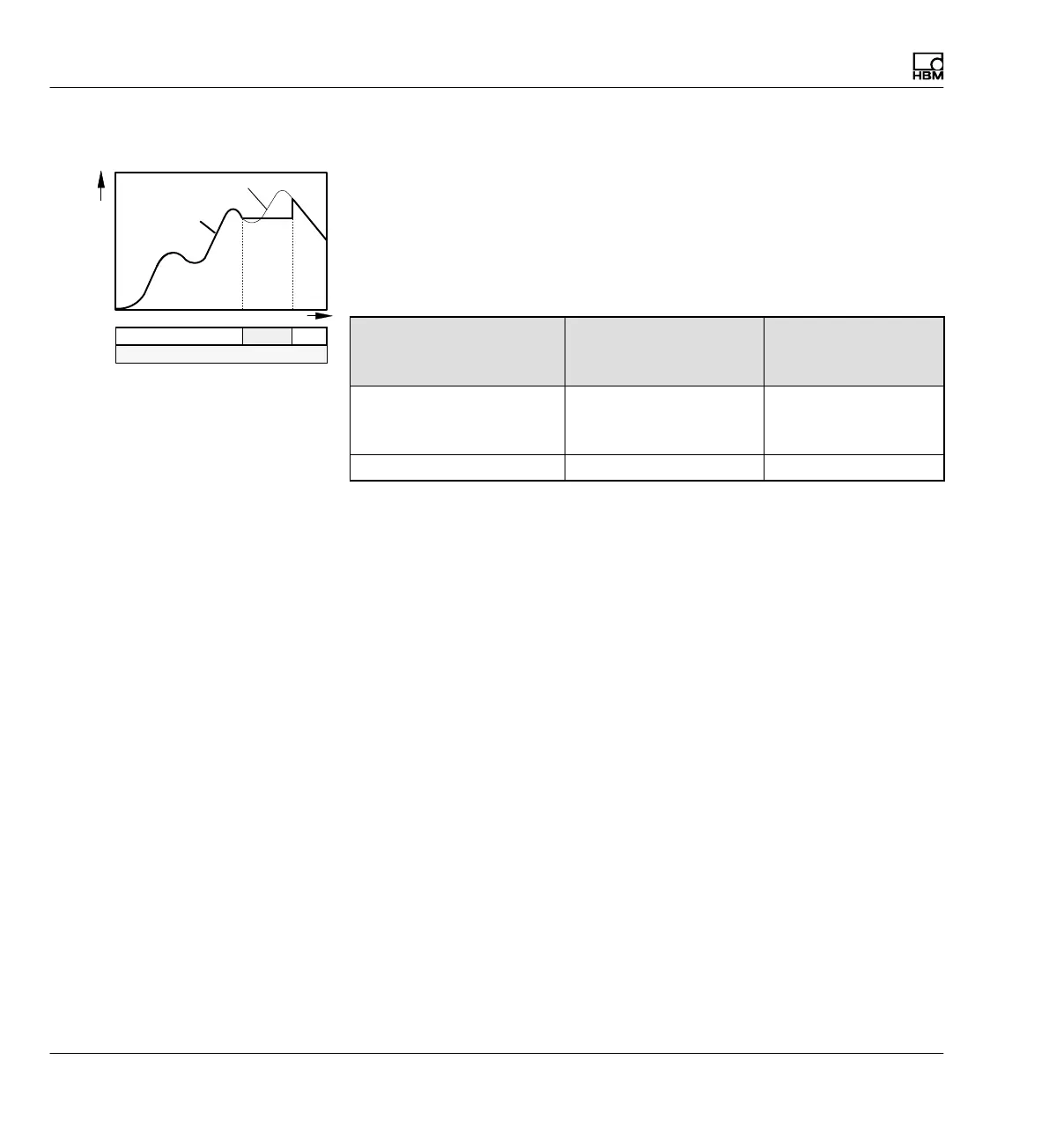

8.4.5 "Instantaneous value" operating mode
In Instantaneous value operating mode memory is continuously updated
(Run function). Use the "Hold" function to hold the contents of the store.
You can switch peak-value memory to the Instantaneous value operating
mode with the remote control contacts.
For all connection boards
Function
Control circuit
Peak/instantaneous
value
Control circuit
Run/Hold
Instantaneous value:
Memory also runs in
each direction
0V 5V
Freeze value Any 0V
Output
Measurement signal
t
Hold
V
i
, V
o
Run Run
Function
Operating
mode
Instantaneous value
