Measuring
General principles for adjusting a measurement channel
126 A0534-30.0 HBM: public MGCplus
Conversion: C + A @
Nominal (rated) electrical unit (right input field)
Nominal (rated) physical unit (left input field)
Example: Enter the coefficients from an HBM DAkkS calibration
certificate for Force.
Note the following correspondences:
DAkkS calibration certificate Polynomial equation
T A1
S A2
R A3
Notice
During calibration the measured values must be acquired in the electrical
unit (mV/V) without adaptation in the display!
7.2.2 TEDS transducers
TEDS (Transducer Electronic Data Sheet) is the designation for an elec
tronic data sheet in the transducer. It is stored in an electronic module that
is inseparably connected to the transducer. It can be located in the trans
ducer housing, in the inseparable cable or connector plug.
Many components in the MGCplus amplifier system are capable of reading
the transducer information stored in the data sheet and converting it into
amplifier settings so that measurements can be started immediately.
MGCplus supports TEDS transducers that comply with the data protocol
(OneWireProtocol) and data structure in the IEEE 1451.4 standard.
This means that the same cables can be used as for transducers that do not
have TEDS.
Some connection boards of the MGCplus system such as the AP01i also
offer the possibility of entering TEDS data signals to two separate pins
(ground and TEDS data signal).

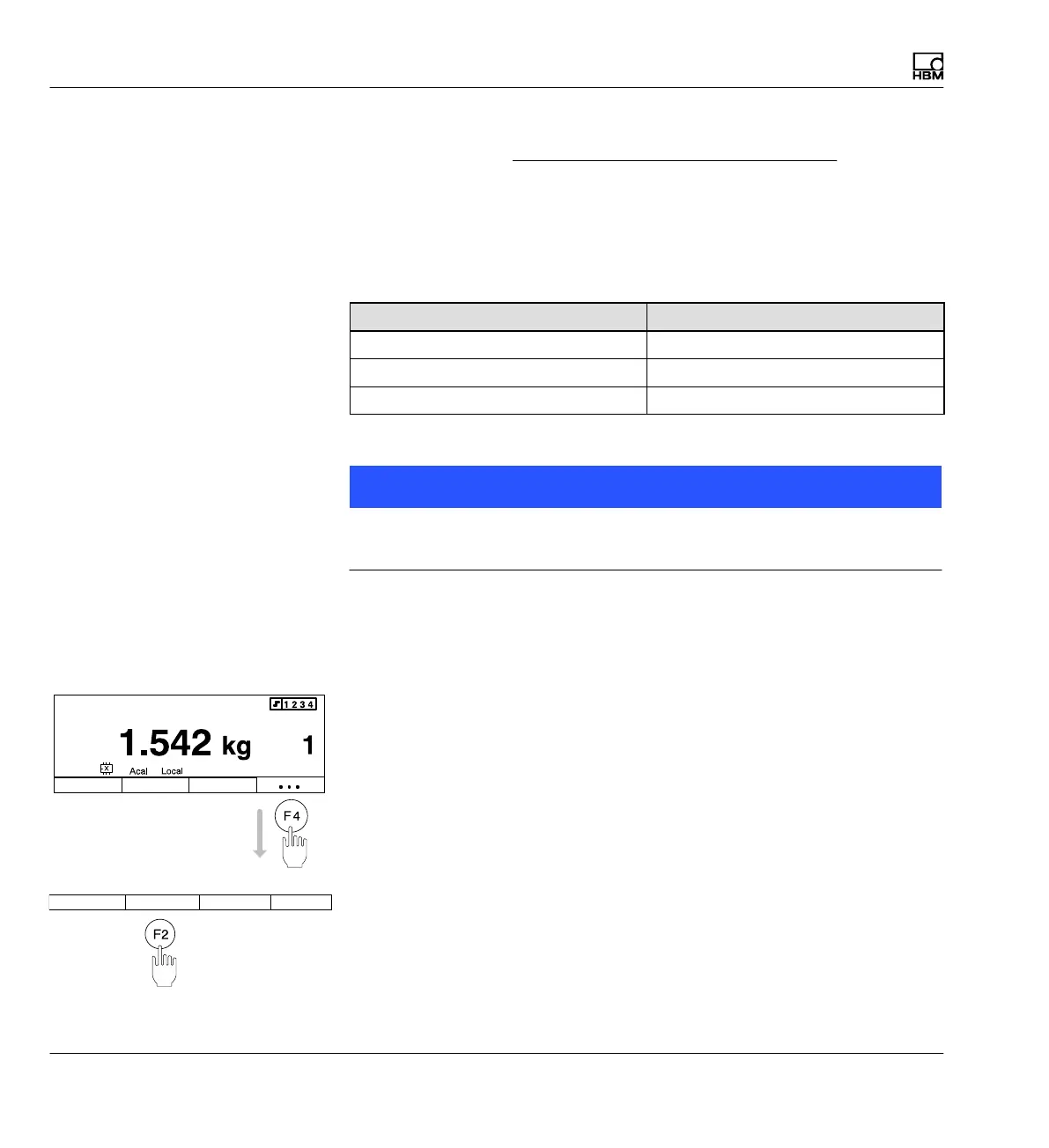

F keys level 1
TEDS Unit . . .
F keys level 2
Acal
−> 0 <− −> T <− −II−
1−ML30B
Gross
Channel
Measure
