HBM MGCplus - Calibration with Shunt Installed

Measuring
Adapting to the transducer
MGCplus A0534-30.0 HBM: public 155

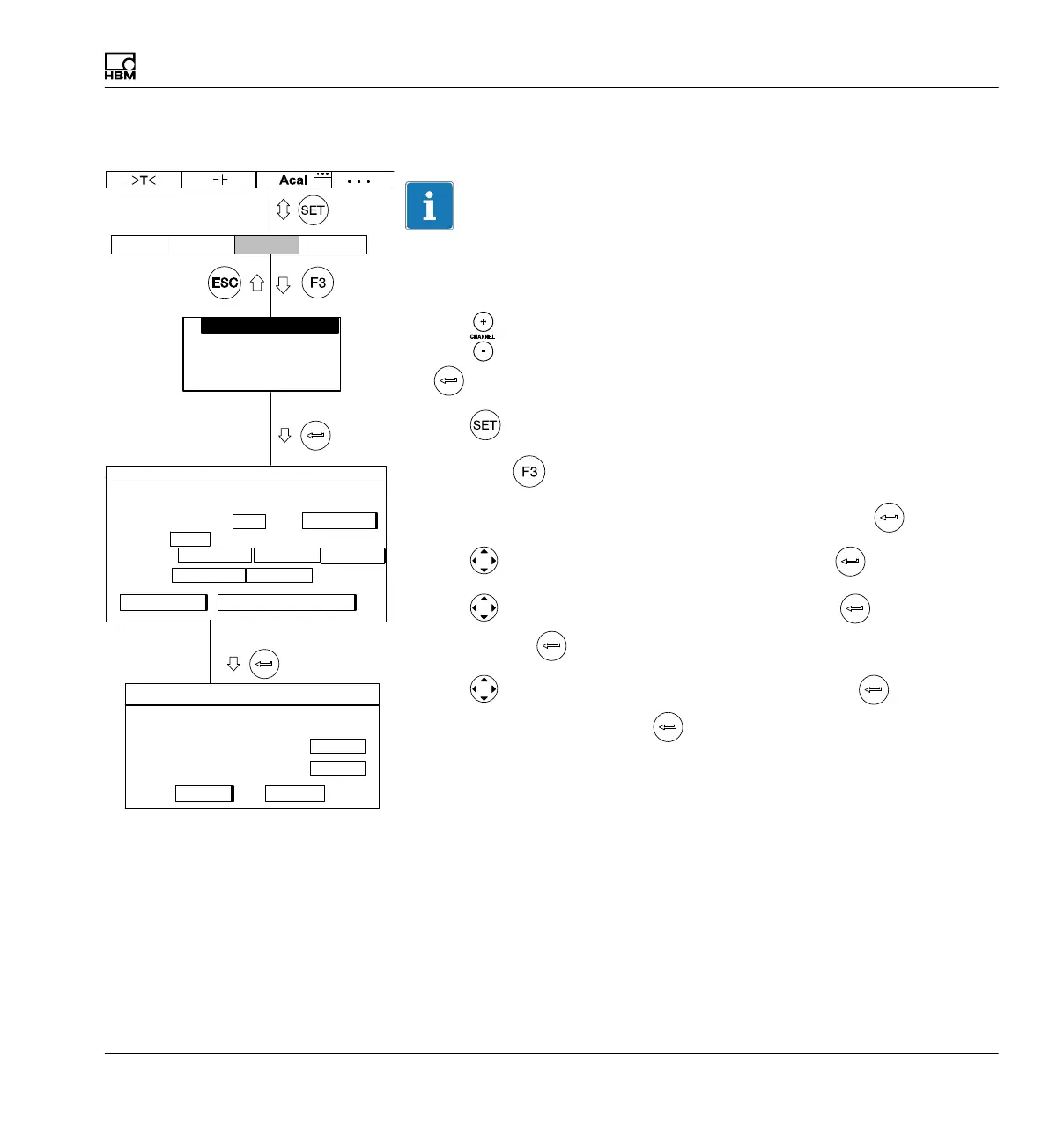

7.3.4.2 Calibration with shunt installed
Information
If the zero point and nominal (rated) torque are not changed (for example in
a recalibration), you can skip steps 1.-9.
1. Use
or a direct entry to choose the desired channel (for example 3.2
).
2. Use
to switch to Setup mode.
3. Press the
function key.
4. In the pull-up menu select Transducer and confirm with
.
5. Use
to select Freq.0...20 kHz and confirm with .
6. Use
to switch to the Level selection field, press and select 5V.
Confirm with
.
7. Use
to switch to the Unit selection field and press . Select NVm
as the unit and confirm with
.
8. In the left edit field Nominal (rated) value enter the value 50.
Type: Freq.0..20kHz
Level:
Unit: kHz
Zero pt.:
Nom. val.:
Ext.fct...
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
Nm
0.0000Point 1:
kHz
10.056
Shunt on
CancelOK
measure
24.220Point 2 2.4210
measure
Characteristic curve points
Unit:
5.0000 ...
TRANSDUCER CHANNEL1
Nm 
0.0000 ... 10.0000 ...
50.0000 ...
calibrate... Adjust amplifier
5V
measure
