7.3.1.1 Direct entry of transducer characteristics
The settings are explained with the following example:
Load cells with characteristics: Maximum capacity 20 kg, excitation voltage
5 V, nominal (rated) sensitivity 2 mV/V
Measurements will be made up to 10kg, i.e. the display range for the ampli
fier is 10.00 kg (display with 2 decimal places). 10 V will be generated on
the analog output with a load of 10 kg.

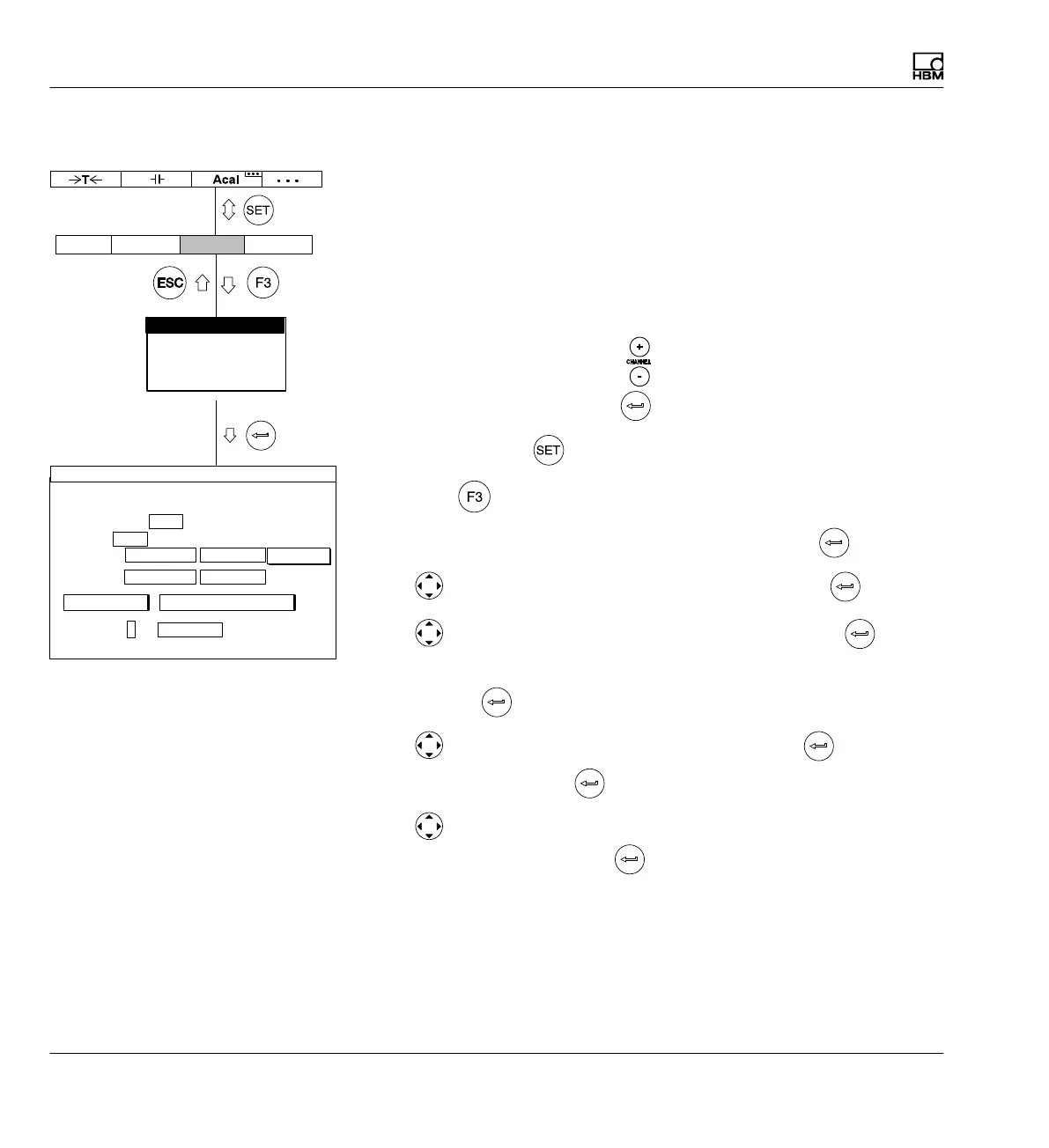

1. Use the channel selection keys
or a direct entry to choose the de
sired channel (for example 3.2
)..
2. Use the Switch key
to switch to Setup mode.
3. Press the
function key.
4. In the pull-up menu select Transducer and confirm with
.
5. Use
to select SG full bridge circuit and confirm with .
6. Use
to switch to the Current feed selection field, press and
select 5V.
7. Confirm with
.
8. Use
to switch to the Unit selection field and press . Select kg as
the unit and confirm with
.
9. Use
to switch to the Zero point edit field and enter the value 0 in
the left edit field. Confirm with
.
10. Unload the load cell.
