Measuring
Adapting to the transducer
MGCplus A0534-30.0 HBM: public 137

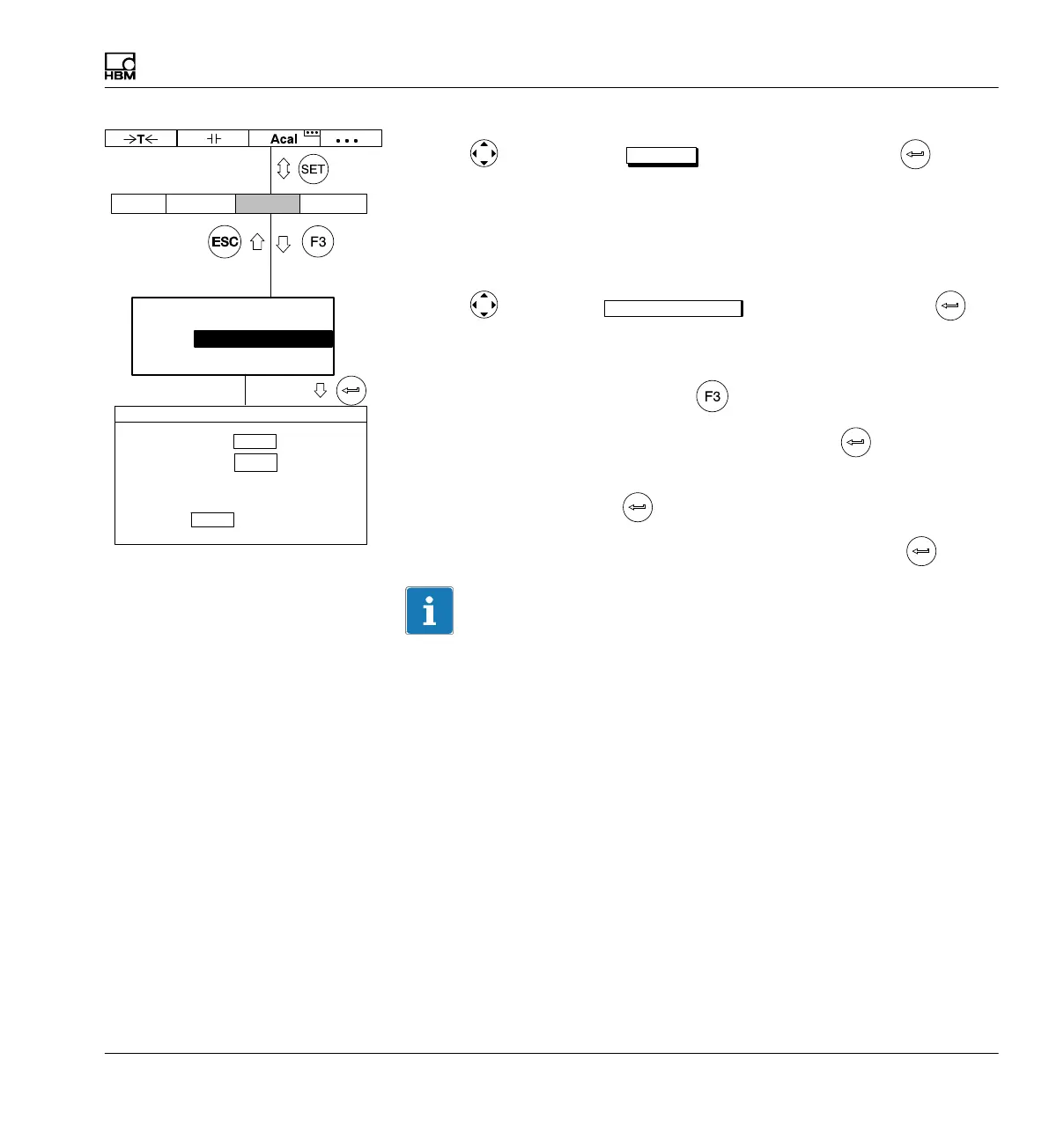

11. Use to switch to the
measure
button and confirm with (the
measured value appears in the right edit field of Zero point)
12. In the left edit field Nominal (rated) value enter the value 20.
13. In the right edit field Nominal (rated) value enter the value 2 (under the
unit mV/V).
14. Use
to select the
Adjust amplifier
button and confirm with . If
you do not want to make any more changes to the display or output
characteristics, you can now continue with step 24.
15. Go back to the pull-up menu with
.
16. In the pull-up menu select Display and confirm with
.
17. In the Decimal places edit field enter the desired number of decimal
places and confirm with
.
18. In the Step selection field enter the value 2 and confirm with
.
Information
The step refers to the last decimal place of the display value.
Example:
Entry 10.0 kg
 Step 1 means display jumps every 100g
 Step 5 means display jumps every 500g
Entry 10.000 kg
 Step 1 means display jumps every 1g
 Step 5 means display jumps every 5g
AmplifierSystem Display Options
TransducerTransducer
Signal conditioning
Display
Analog outputs
Switch
Unit
Decimal places
Display range from
to
Step
DISPLAY CHANNEL1
1
20.000 kg
−20.000 kg
2 ...
kg 
