Measuring
Adapting to the transducer
138 A0534-30.0 HBM: public MGCplus

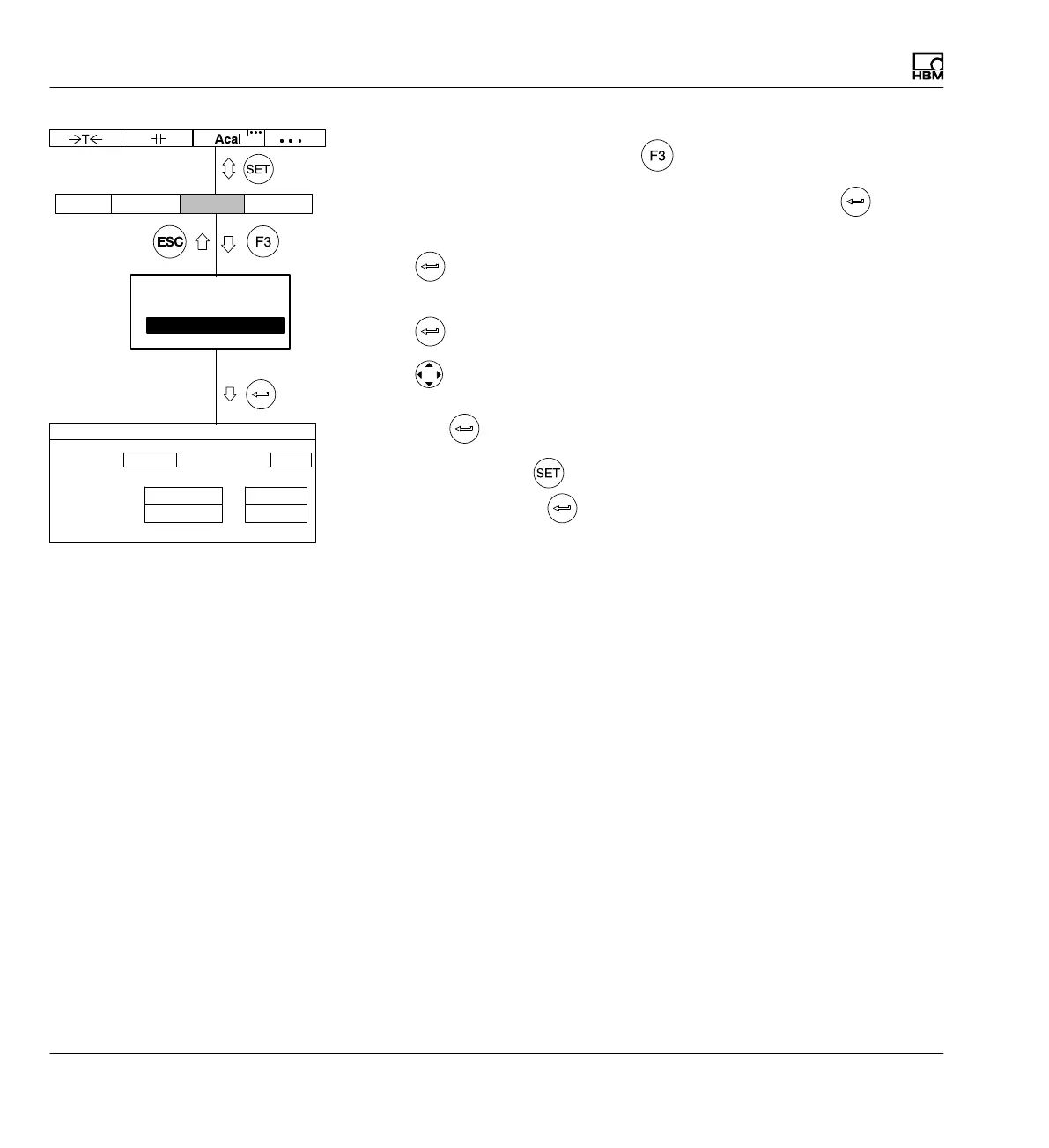

19. Go back to the pull-up menu with .
20. In the pull-up menu select Analog outputs and confirm with
.
21. In the Output Vo1 selection field select the desired signal and confirm
with
.
22. In the Output Vo2 selection field select the desired signal and confirm
with
.
23. Use
to select the Output characteristics pt.2 edit field and enter
the desired value (left for the display, right for the analog output). Con
firm with
.
24. Use the Switch key
to go to measuring mode and confirm the con
firmation prompt with
.
Output Vo1: Output Vo2:
Output characteristics ppm V
Pt.1:
Pt.2:
ANALOG OUTPUTS CHANNEL1
0.0000 ...
Gross  Net 
0.0000 ...
100.0000 ... 0.0000 ...
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
