HBM MGCplus - Analog Outputs (Single-Channel Modules Only)

Measuring
General principles for adjusting a measurement channel
132 A0534-30.0 HBM: public MGCplus

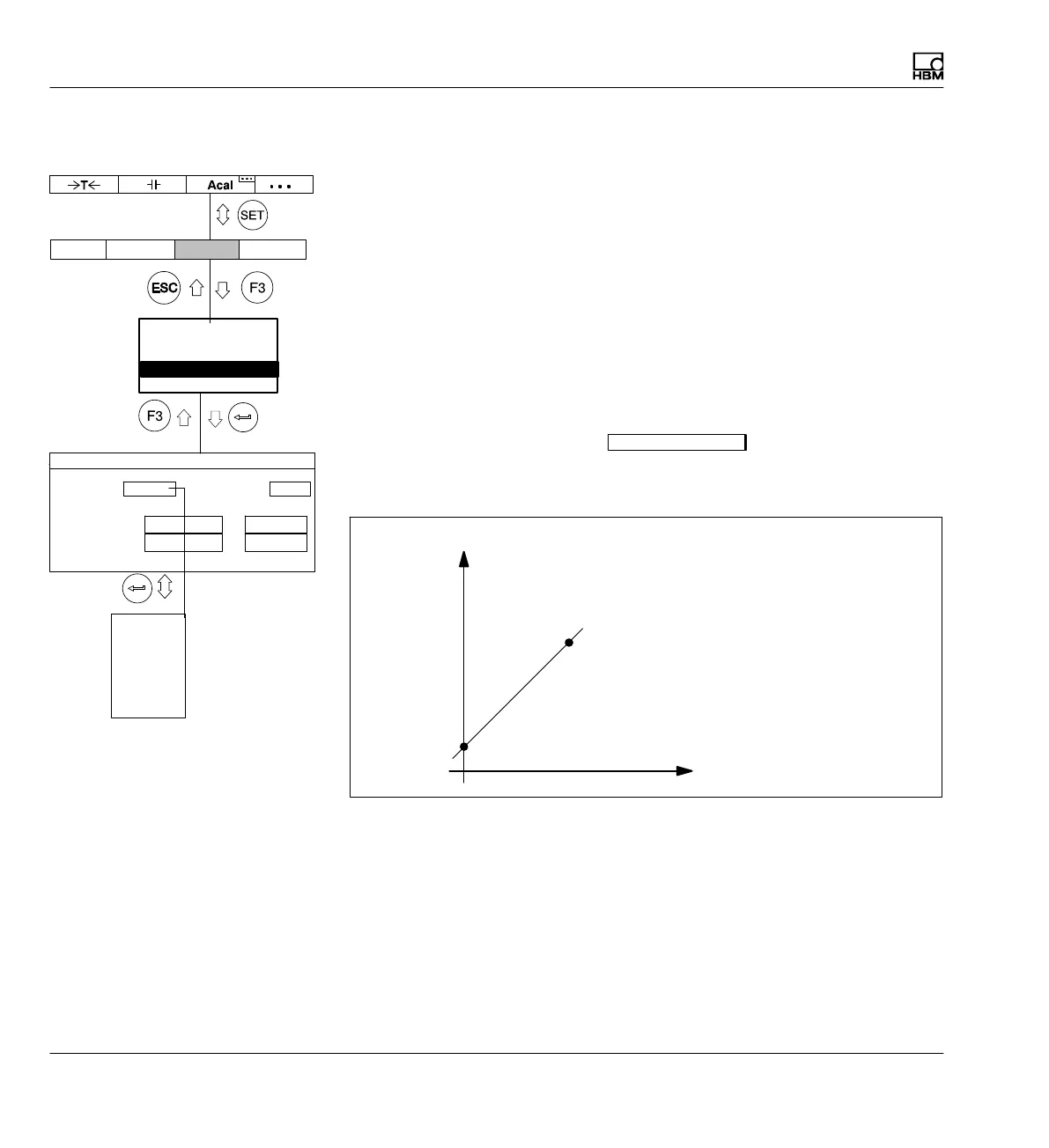

7.2.5 Analog outputs (single-channel modules only)
Output V
O
1
Signal selection for analog output 1 (socket Bu2 on the back side of the de
vice and BNC socket on the front panel for test purposes).
Output V
O
2
Signal selection for analog output 2 (socket Bu2 on the back side of the de
vice).
Output characteristic
The edit fields for characteristic curve points 1 and 2 are updated automati
cally as soon as you activate the
Adjust amplifier
button in the "Trans
ducer" setup window. However, you can also change the output characteris
tics with direct entry.
User unit
(ppm, etc.)
Analog output: (V)
Pt.1
Pt.2
Output Vo1: Output Vo2:
Output characteristics ppm V
Pt.1:
Pt.2:
ANALOG OUTPUTS CHANNEL1
0.0000 ...
Gross  Net 
0.0000 ...
100.0000 ... 0.0000 ...
Gross
Net
PV1
PV2
OFF
Comb. PV
OCC
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
