Measuring
General principles for adjusting a measurement channel
MGCplus A0534-30.0 HBM: public 133

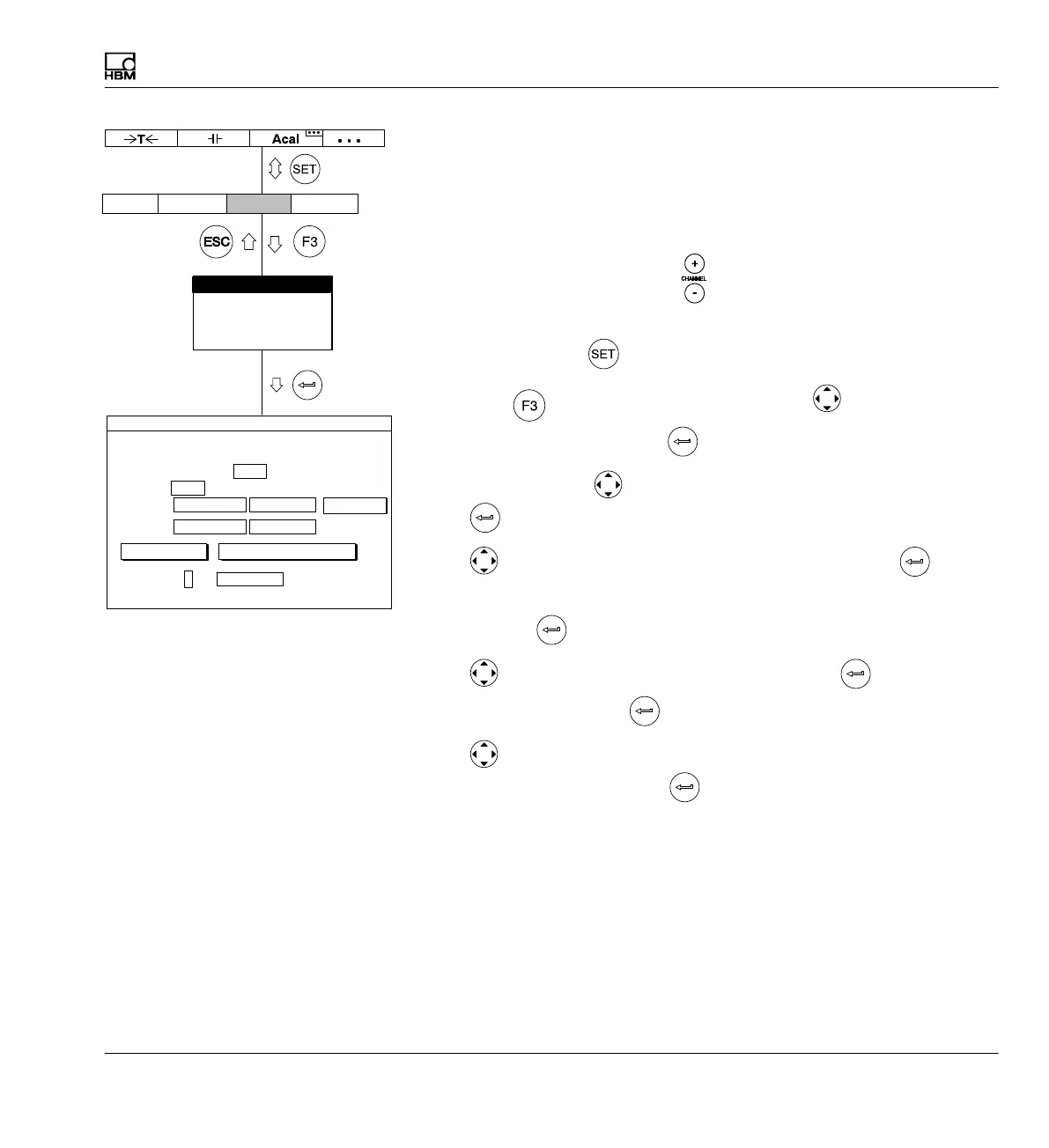

Example: Minimum setting for first measurement
The transducer is a load cell with the following nominal (rated) data:
Maximum capacity 50kg
Nominal (rated) sensitivity 2mV/V
1. Use the channel selection keys
or a direct entry (è see page 114) to
select the desired channel.
2. Use the Switch key
to switch to Setup mode.
3. Press the
function key, use the cursor keys to select the
Transducer and confirm with
.
4. Use the cursor keys
to select SG full bridge circuit and confirm
with
.
5. Use
to switch to the Current feed selection field, press and
select 5 V.
6. Confirm with
.
7. Use
to switch to the "Unit" selection field. Press . Select kg as
the unit and confirm with
.
8. Use
to switch to the Zero point edit field and enter the value 0 in
the left edit field. Confirm with
.
9. Unload the load cell.
Type SG full bridge circuit
Current feed
Unit: mV/V
Zero pt.:
Nom. val.:
Gage factor:
2.0000 ...
TRANSDUCER CHANNEL1
kg 
0.0000 ... 0.0000 ...
50.0000 ...
calibrate...calibrate... Adjust amplifier
0.0000 ...
5V
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
measure
