HBM MGCplus - Page 134

Measuring
General principles for adjusting a measurement channel
134 A0534-30.0 HBM: public MGCplus

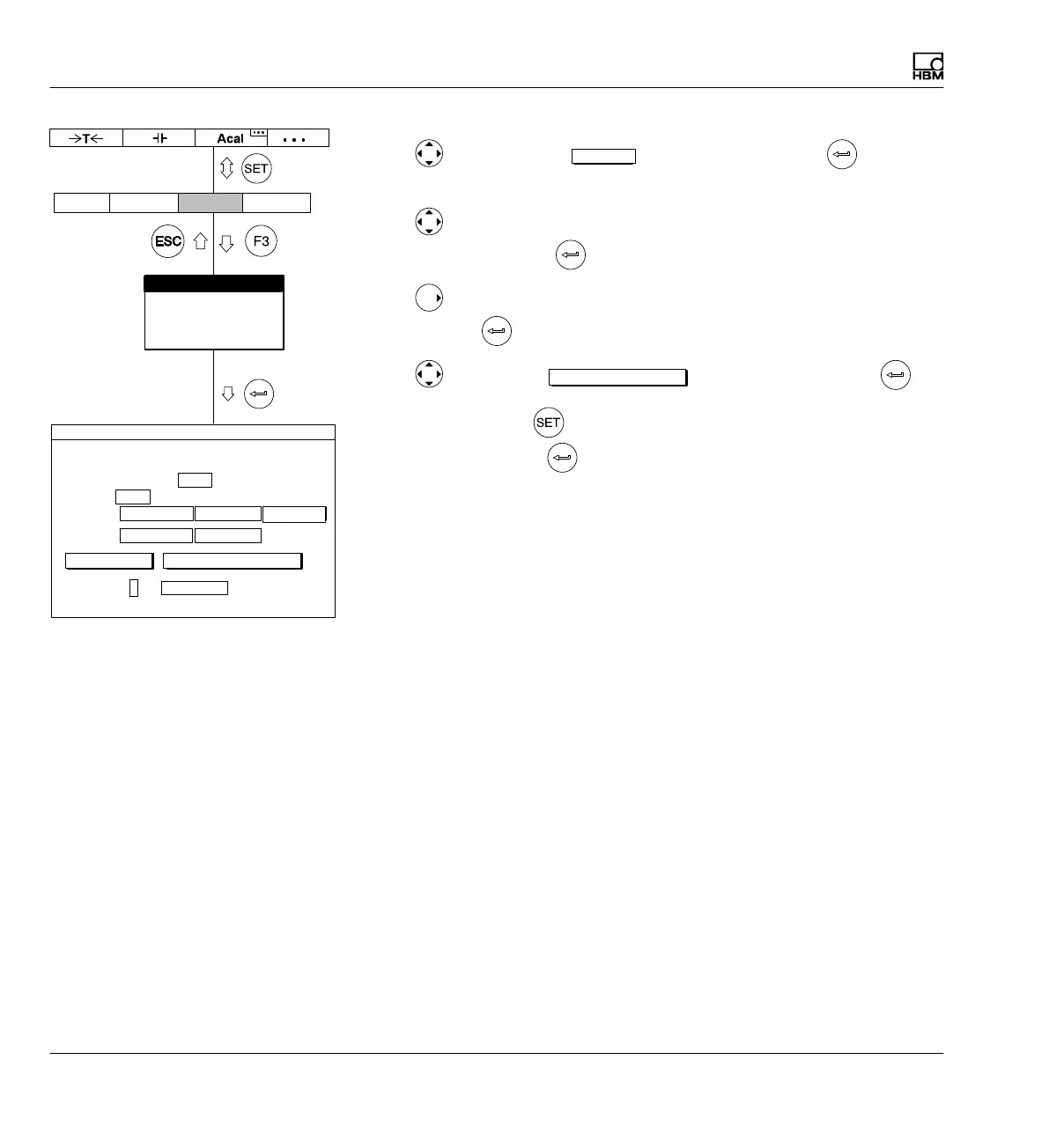

10. Use to switch to the
measure...
button and confirm with (the mea
sured value appears in the right edit field of Zero point)
11. Use
to switch to the Nominal (rated) value edit field and enter the
value 50. Confirm with
.
12. Use
to switch to the right edit field (mV/V) and enter the value 2.
Confirm with
.
13. Use
to select the
Adjust amplifier
button and confirm with .
14. Use the Switch key
to go to measuring mode and confirm the con
firmation prompt with
.
Type SG full bridge circuit
Current feed
Unit: mV/V
Zero pt.:
Nom. val.:
Gage factor:
2.0000 ...
TRANSDUCER CHANNEL1
kg 
0.0000 ... 0.0000 ...
50.0000 ...
calibrate...calibrate... Adjust amplifier
0.0000 ...
5V
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
measure
