MGCplus A0534-30.0 HBM: public 191
8 Additional functions
8.1 Remote control (single-channel modules only)
8.1.1 Turning on remote control
The remote control contacts are used to control important functions of the
amplifiers via digital inputs. These contacts are only active if remote control
is turned on
There are three ways to turn remote control on or off.
S In measuring mode: Press the
function key twice and then the
function key (factory settings).
S In setup mode: Press the function key. You can turn remote control
on or off in the "Switch" setup window.
S Via the remote control contacts (with the REMT function).

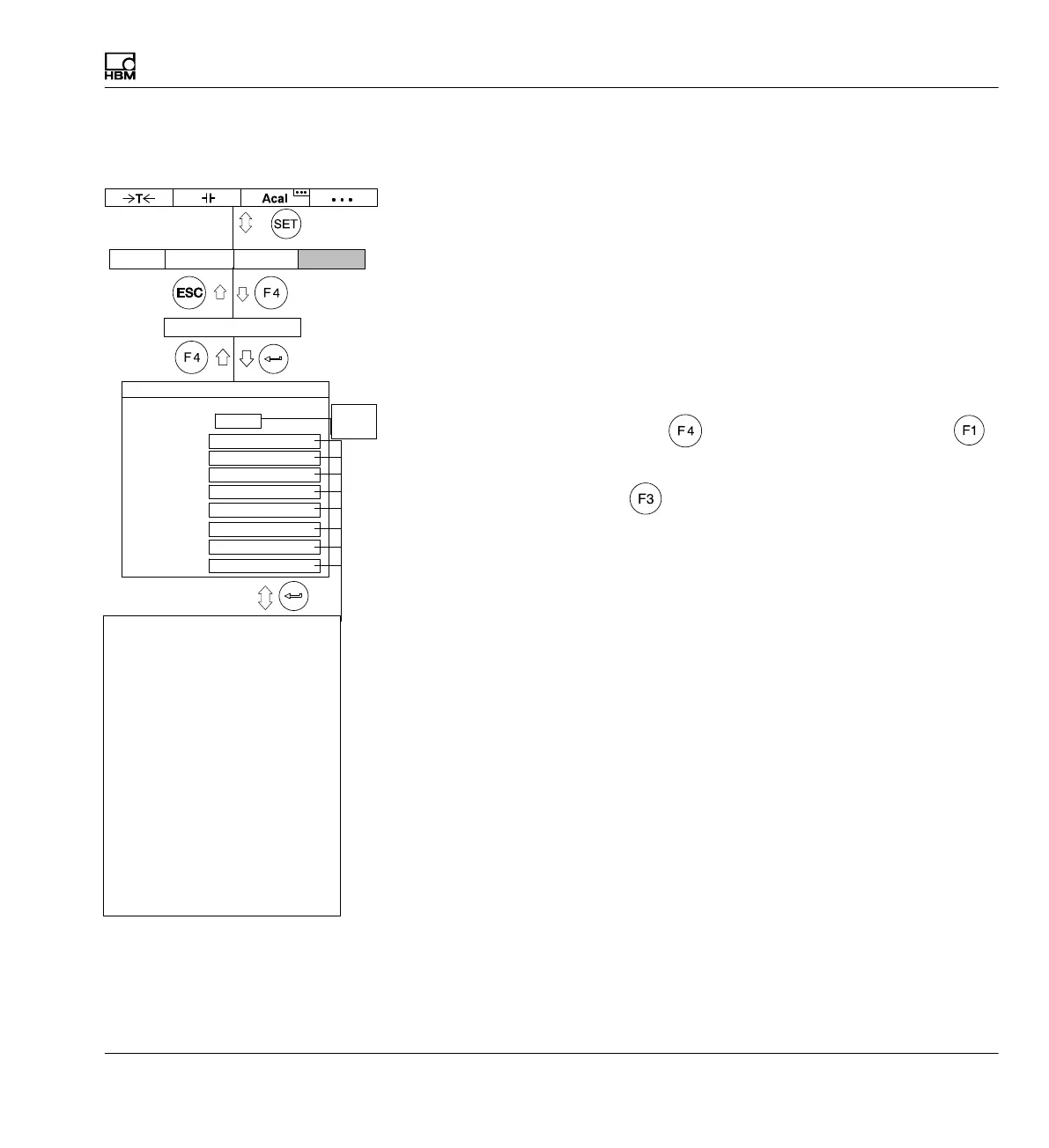

Control inputs
AmplifierSystem OptionsDisplay
Remote control
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Input 7
Input 8
Not assigned 
Control inputs Channel 1
Not assigned 
Not assigned 
Not assigned 
Not assigned 
Not assigned 
Not assigned 
Not assigned 
On 
On
Off
Not assigned
ACAL-autocal
TARA-tare
Delete CPV1-PV1
HLD1-hold memory1
Delete CPV2-PV2
HLD2-hold memory2
ZERO-Zero balance
SHNT-Shunt On/Off
CAL input: Calibration signal
ZERO input Zero signal
INV sign reversal
PSEL1-P-set coding line 1
PSEL2-P-set coding line 2
PSEL4-P-set coding line 4
REMT-Remote control On/Off
INT-Start/stop integration
