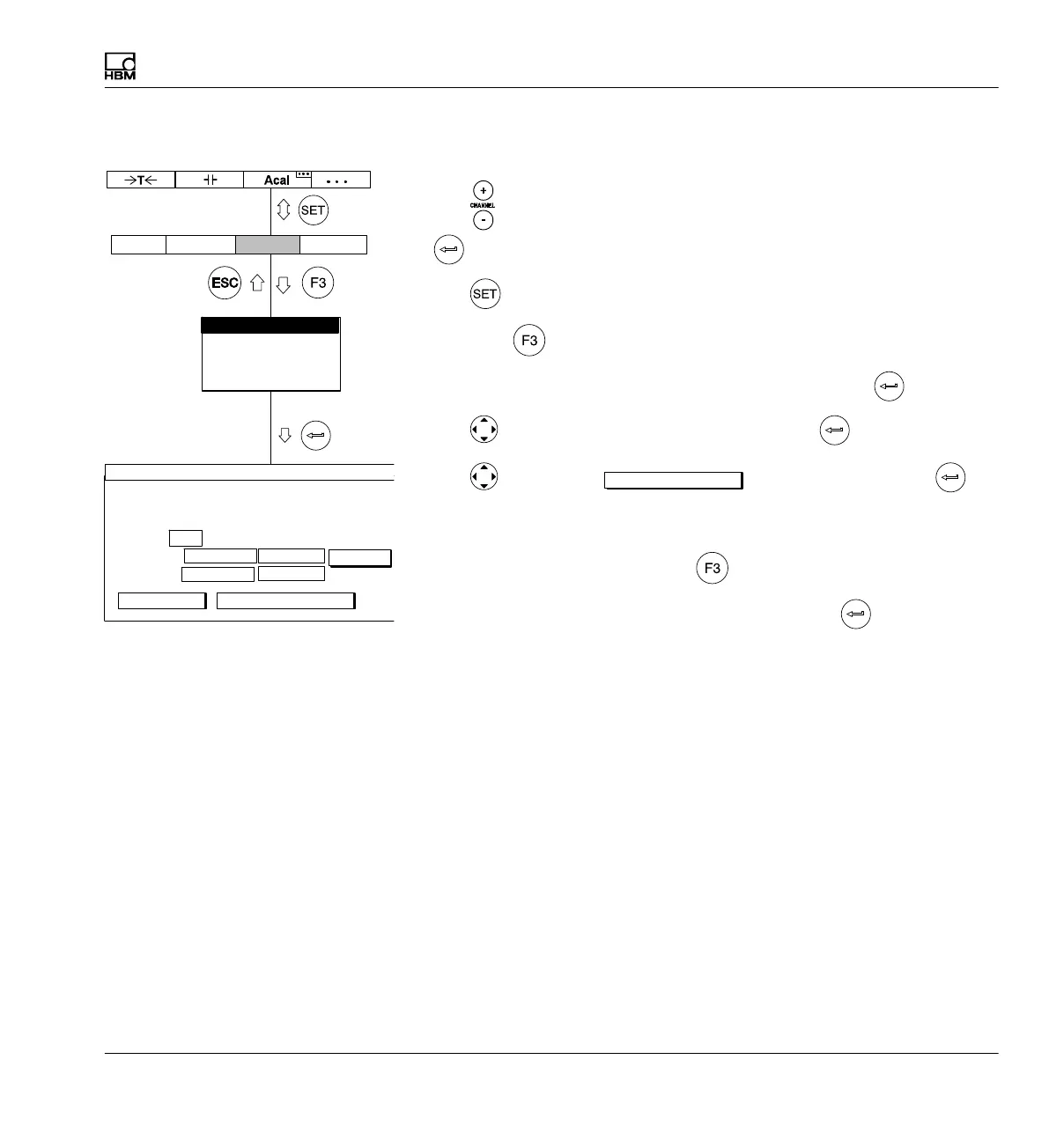

7.3.7.1 Direct entry of transducer characteristics
1. Use
or a direct entry to choose the desired channel (for example 3.2
).
2. Use
to switch to Setup mode.
3. Press the
function key.
4. In the pull-up menu select Transducer and confirm with
.
5. Use
to select Thermocpl.K and confirm with .
6. Use
to select the
Adjust amplifier
button and confirm with . If
you do not want to make any more changes to the display, you can now
continue with step 11.
7. Go back to the pull-up menu with
.
8. In the pull-up menu select Display and confirm with
.
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
20.0000 ...
Type Thermocpl.K
Current feed None
Unit: 
C
Zero pt.:
Nom. val.:
TRANSDUCER CHANNEL1
C
50.0000 ... 50.0000 ...
20.0000 ...
calibrate... Adjust amplifier
measure
