Introduction
Layout of the MGCplus device
MGCplus A0534-30.0 HBM: public 21
3.4 Layout of the MGCplus device
Power
supply
Connection boards
(AP01i, AP815i, ...)
Amplifier
plug−in board
(ML30B, ML55B, ML801B...)
AB22A
display and
control unit
CPxx
Communication
processor

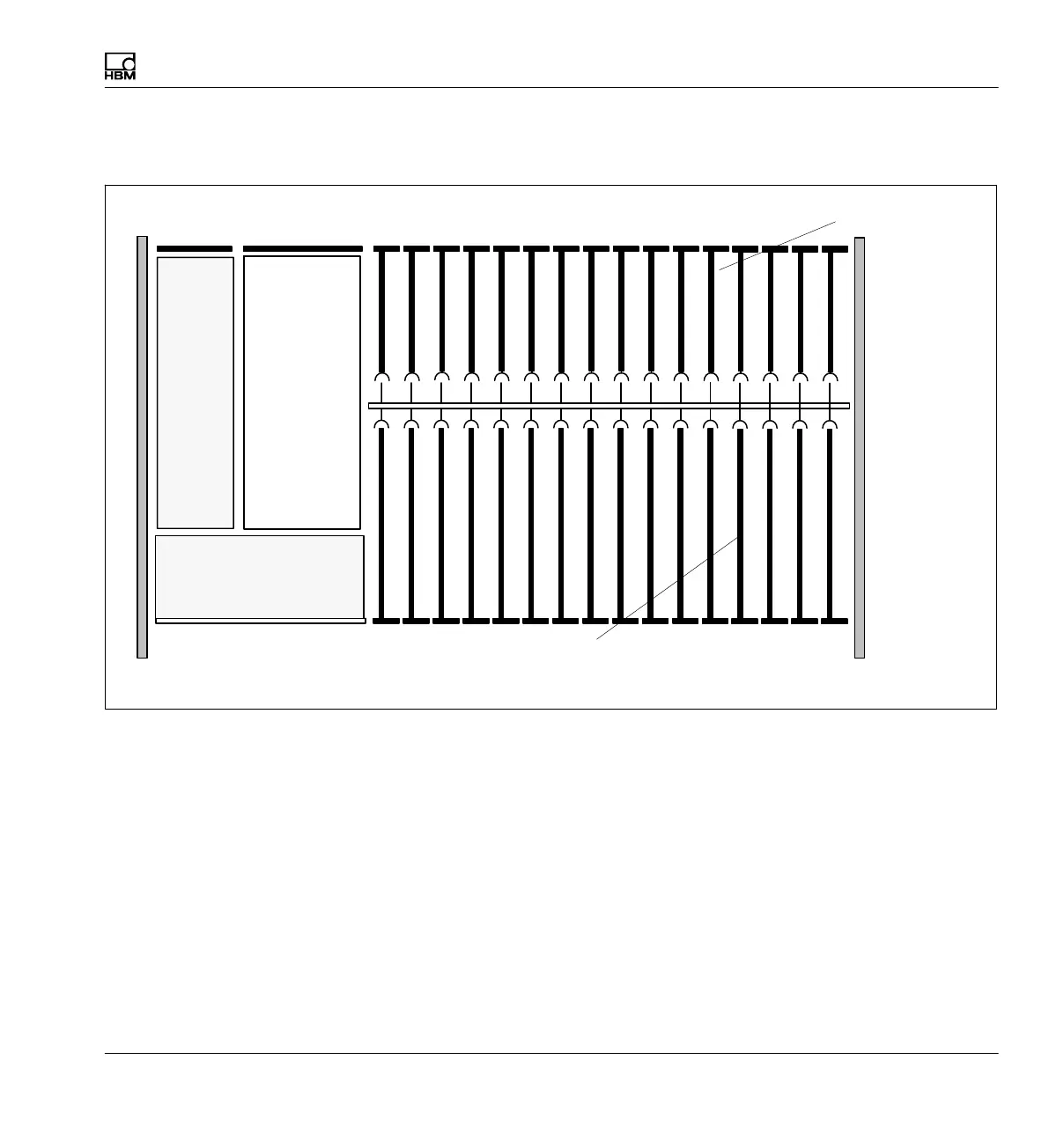

Fig. 3.2 Device layout with display and control unit AB22A
Double-width connection boards (AP03i, AP455i) must be plugged into the
odd-numbered slots. This also applies to the corresponding amplifiers, re
gardless of the width.
Double-width amplifiers (ML38B) must be plugged into the odd-numbered
slots. This also applies to the corresponding connection board, regardless of
the width.
When asynchronous modules are used (ML7XB with more than eight sub
channels), the sequence ‘asynchronous-synchronous-asynchronous’ is not
permissible.
