Limit value combination (single-channel modules only)
MGCplus A0534-30.0 HBM: public 199
8.3 Limit value combination (single-channel modules
only)
You can use this function to logically combine selected limit switches with a
limit value output.
limit value output
Entry for the desired limit value output (---, 1, 2, 3, 4).
Combination
A logical operation on input signals (AND, OR, EXOR, NAND, NOR,
NEXOR).
Input signal 1...4
Select the inputs (LV1...LV4 or control input) to be combined.
Limit value output
Combination:
Input signal 1:
Input signal 2:
Input signal 3:
Input signal 4:

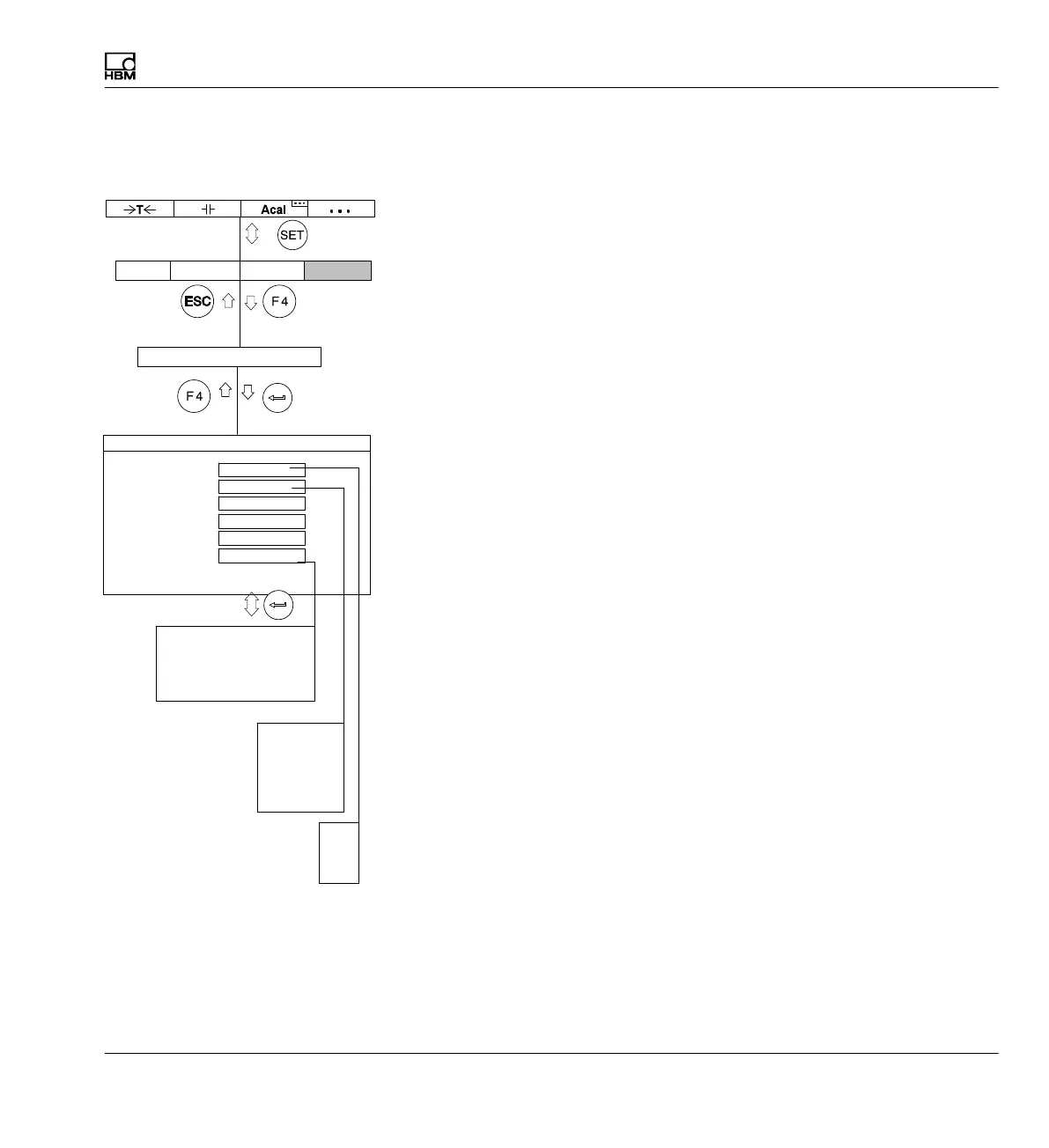

LIMIT VALUE COMBINATION CHANNEL 1
Limit value 1 
Limit value 2 
−−−
−−−
3
AND 
----
Limit value 4
Limit value 4 inverted
Control input 4
Control input 4 inverted
−−−
1
2
3
4
AND
OR
EXOR
NAND
NOR
NEXOR
