7.3.1.2 Calibrating the characteristic curve of the transducer
Transferring the signals supplied by the transducer at a defined
loading
Example: A calibration weight of 4 kg is used to calibrate a 10 kg load cell.
Information
If the zero point and nominal (rated) value are not changed (for example in a
recalibration), you can skip steps 1-10.

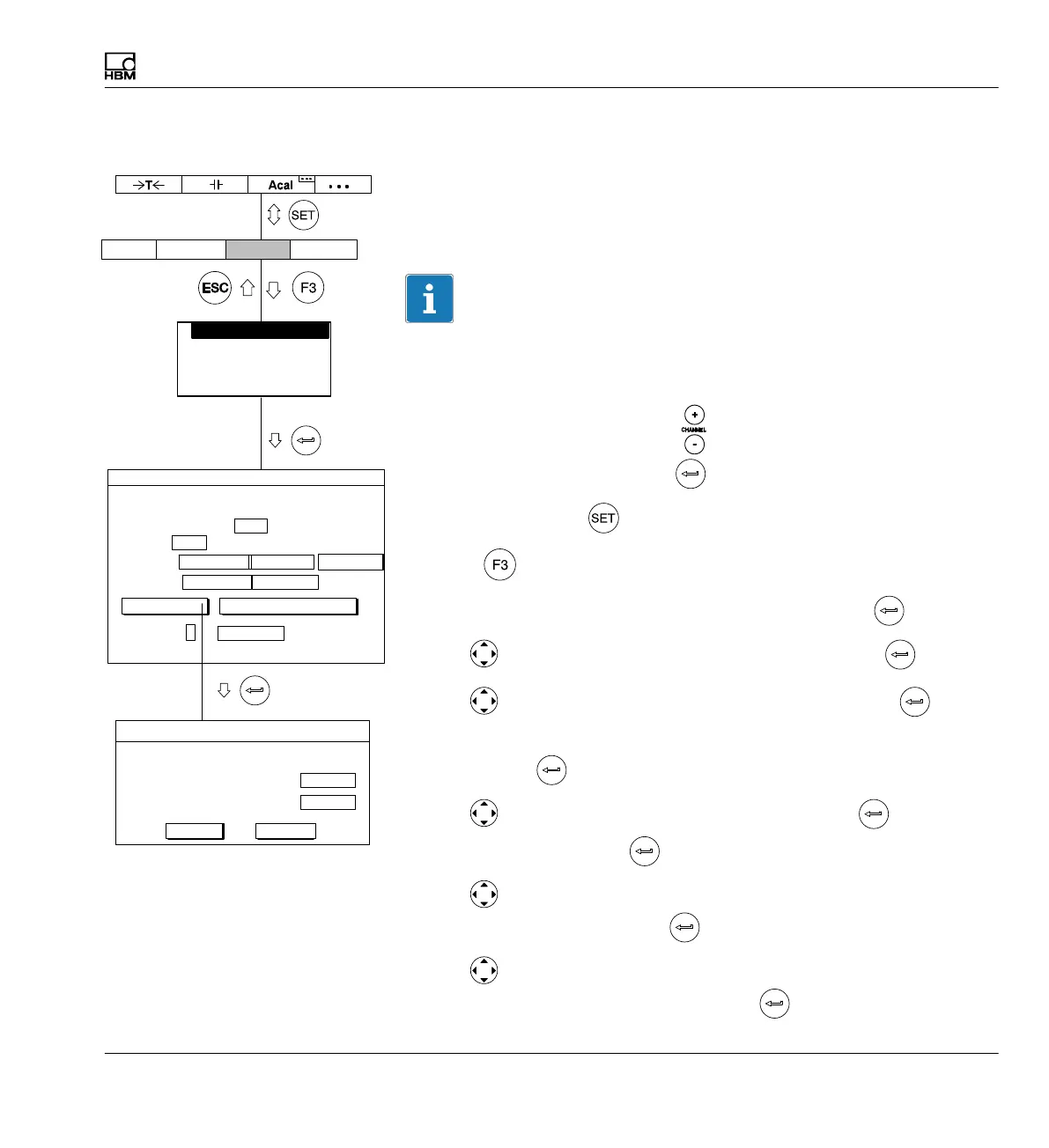

1. Use the channel selection keys
or a direct entry to choose the de
sired channel (for example 3.2
)..
2. Use the Switch key
to switch to Setup mode.
3. Press
.
4. In the pull-up menu select Transducer and confirm with
.
5. Use
to select SG full bridge circuit and confirm with .
6. Use
to switch to the Current feed selection field, press and
select 5V.
7. Confirm with
.
8. Use
to switch to the Unit selection field and press . Select kg as
the unit and confirm with
.
9. Use
to switch to the Zero point edit field and enter the value 0 in
the left edit field. Confirm with
.
10. Use
to switch to the Nominal (rated) value edit field and enter the
value 10 in the left edit field. Confirm with
.
Type SG full bridge circuit
Current feed
Unit: mV/V
Zero pt.:
Nom. val.:
Gage factor:
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
kg
0.0000Point 1:
mV/V
0.0021
Shunt off
CancelOK
4.0000Point 2 0.8032
Characteristic curve points
Unit
2.0000 ...
TRANSDUCER CHANNEL1
kg 
0.0000 ... 0.0000 ...
10.0000 ...
calibrate... Adjust amplifier
0.0000 ...
5V
measure
measure
measure
